Xerox EC8036 - Second Bias Transfer Roller

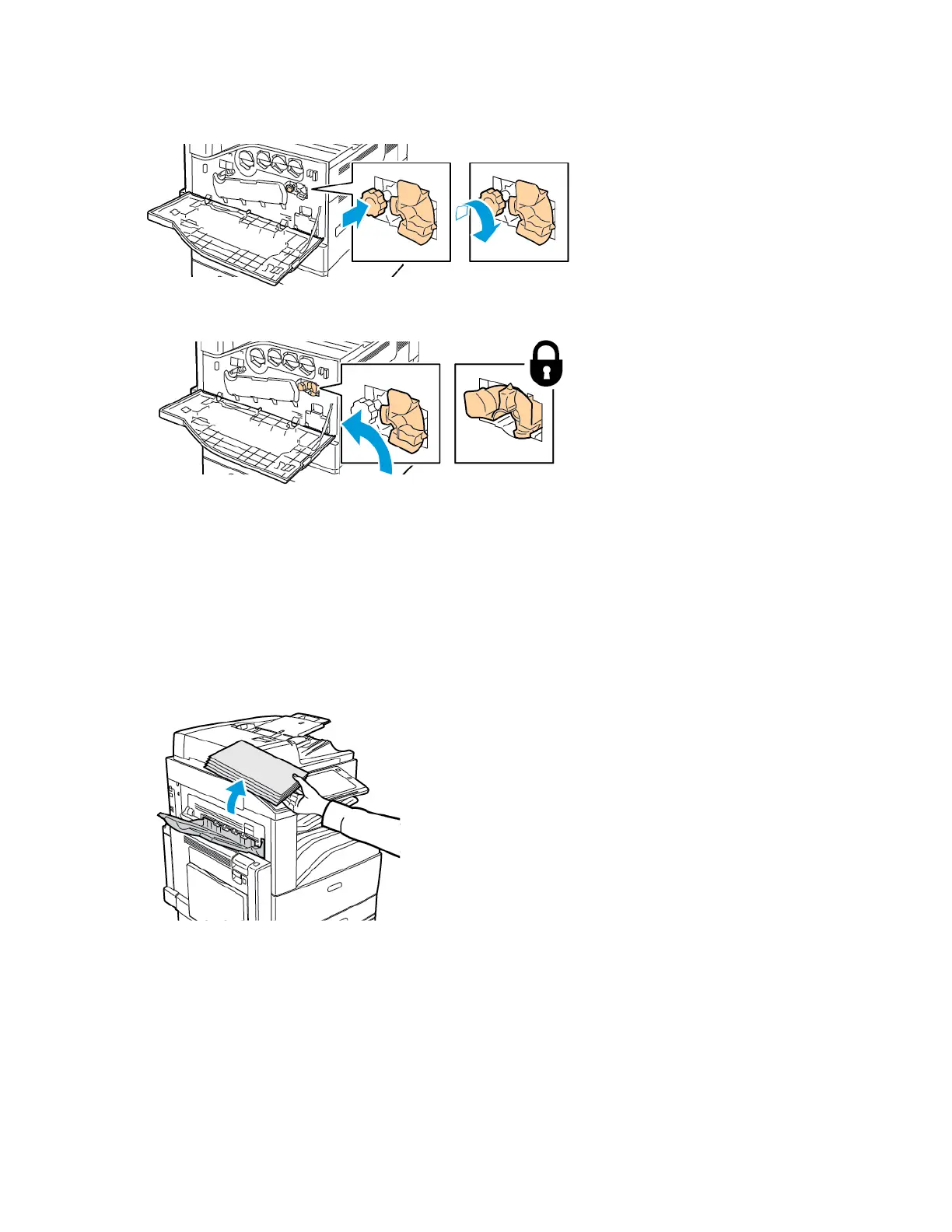

9. Push the orange knob in, then turn it clockwise until snug.
10. To lock the belt cleaner, turn the orange lever to the left.
11. Close the printer front cover.
SSeeccoonndd BBiiaass TTrraannssffeerr RRoolllleerr
RReeppllaacciinngg tthhee SSeeccoonndd BBiiaass TTrraannssffeerr RRoolllleerr
When the second bias transfer roller needs to be replaced, a message appears on the control panel.
1. Remove paper from the left tray, then fold up the tray.
Xerox
®
EC8036/EC8056 Color Multifunction Printer
User Guide
229
Maintenance
