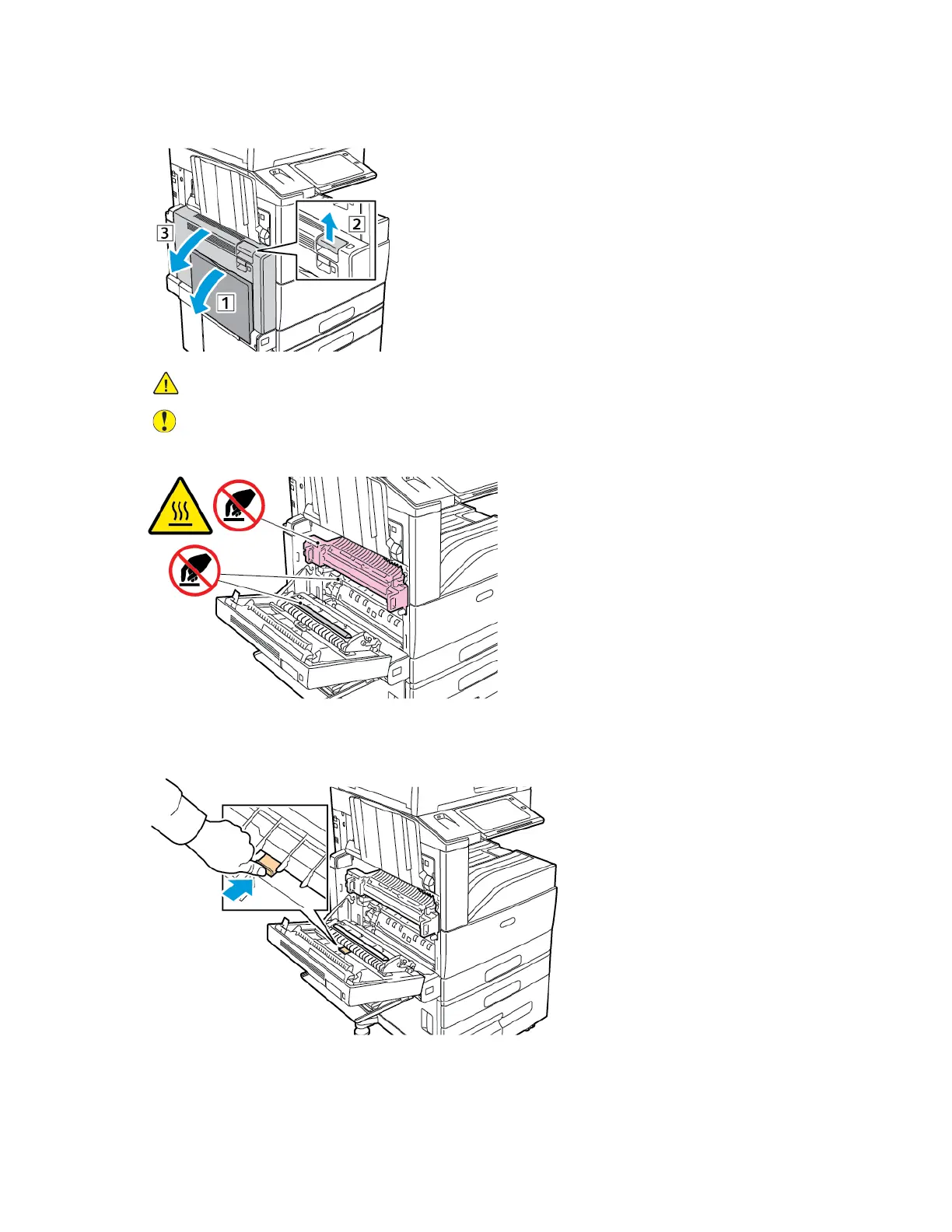

2. To open Door A, open Tray 5, then lift the release lever and open Door A.
WARNING: The area around the fuser can be hot. To avoid injury, use caution.
Caution: Do not touch the transfer belt. Touching the belt can reduce image quality or
damage the transfer belt. Do not touch the transfer roller. Touching the roller can reduce
image quality.
3. Remove the new transfer roller from the packaging. Retain the packaging.
4. Push the orange lever in the direction shown.
