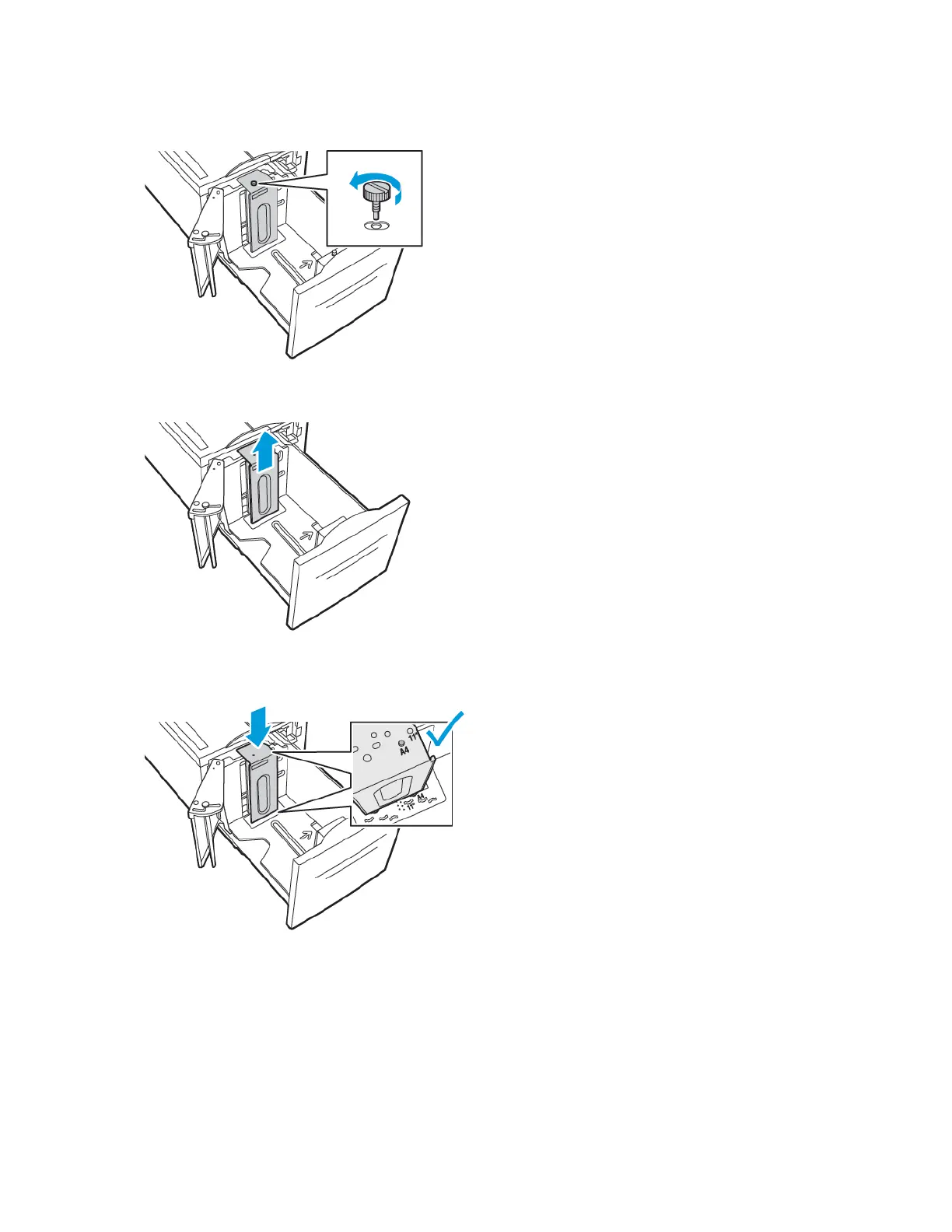

1. Remove the screw that holds the spacer plate at the back of the tray.
2. To remove the spacer plate, lift it up and out of the tray.
3. Place the tabs at the bottom of the spacer plate into the slots in the bottom of Tray 6 that
correspond with the paper size.
4. Slide down the top of the spacer plate to engage the peg on the back of the tray into the
matching hole in the spacer plate.
