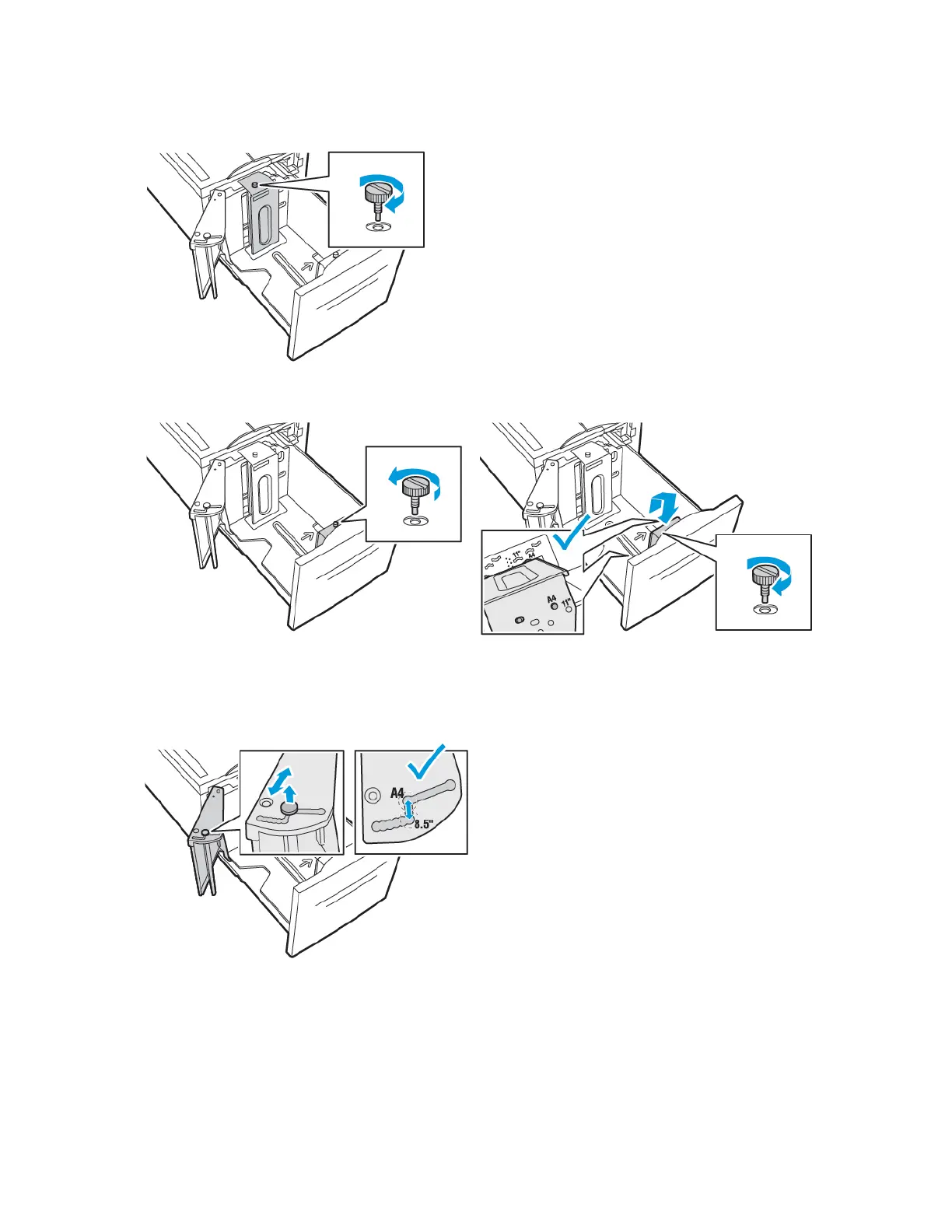

5. Install the screw to secure the spacer plate.
6. Repeat these steps to adjust the spacer plate at the front of Tray 6.
7. On the top of the side gate, locate the pin.
8. Lift the pin, then guide it into the desired paper size in the slot.
9. To lock the side gate into place, release the pin.
WWiirreelleessss NNeettwwoorrkk AAddaapptteerr
The wireless network adapter is a USB device that transfers data between the printer and a wireless
local area network (LAN). The wireless network adapter supports common wireless security protocols,
such as WEP, WPA, WPA2, and 802.1X standard port-based network access control.
36
Xerox
®
EC8036/EC8056 Color Multifunction Printer
User Guide
Getting Started
