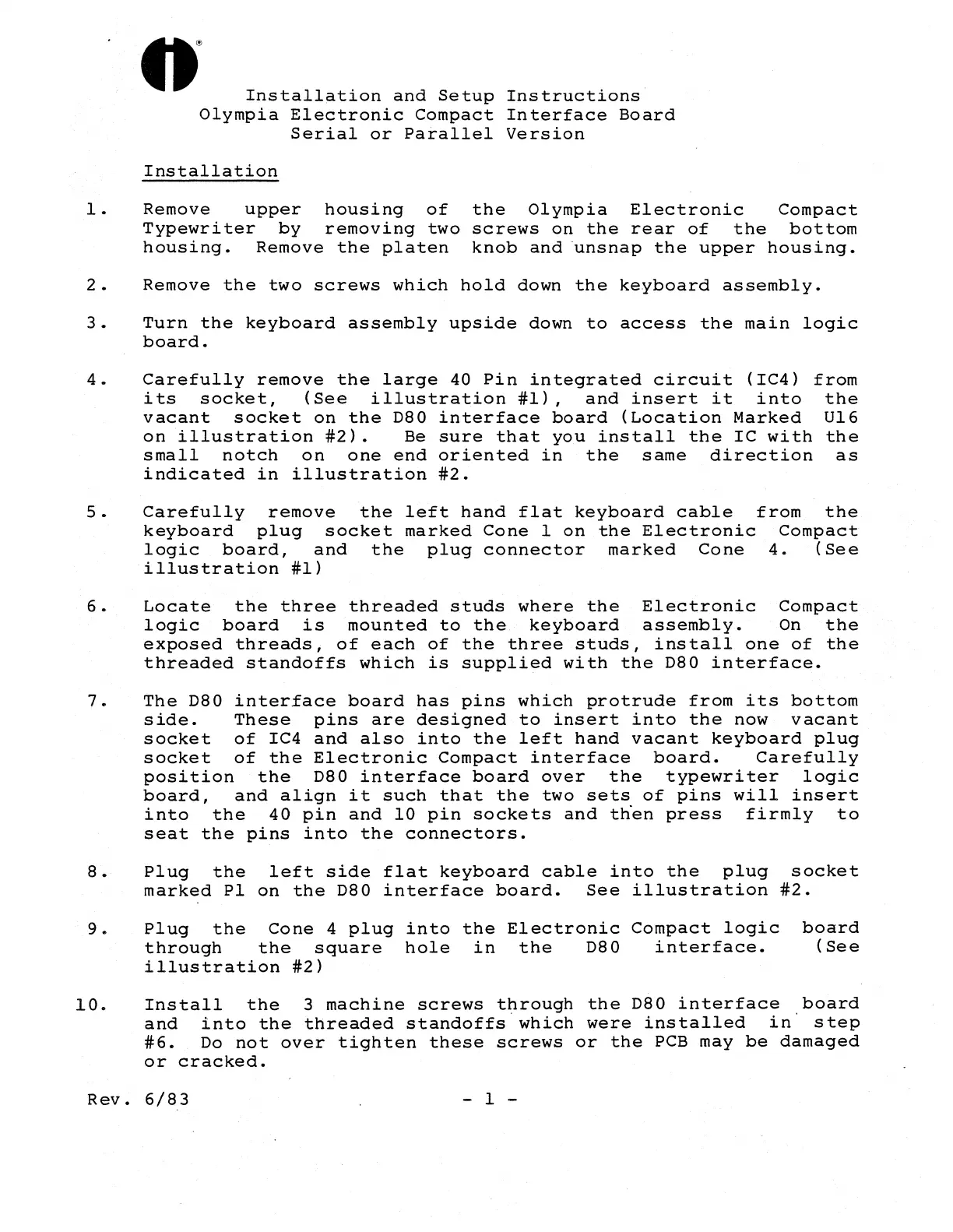

Installation

and

Setup

Instructions

Olympia

Electronic

Compact

Interface

Board

Serial

or

Parallel

Version

Installation

1.

Remove

upper

housing

of

the

Olympia

Electronic

Compact

Typewriter

by

removing

two

screws

on

the

rear

of

the

bottom

housing.

Remove

the

platen

knob

and

unsnap

the

upper

housing.

2.

Remove

the

two

screws

which

hold

down

the

keyboard

assembly.

3.

Turn

the

keyboard

assembly

upside

down

to

access

the

main

logic

board.

4.

Carefully

remove

the

large

40

Pin

integrated

circuit

(IC4)

its

socket,

(See

illustration

#1),

and

insert

it

into

vacant

socket

on

the

D80

interface

board

(Location

Marked

on

illustration

#2).

Be

sure

that

you

install

the

IC

with

small

notch

on

one

end

oriented

in

the

same

direction

indicated

in

illustration

#2.

from

the

Ul6

the

as

5.

Carefully

remove

the

left

hand

flat

keyboard

cable

from

the

keyboard

plug

socket

marked

Cone

1

on

the

Electronic

Compact

logic

board,

and

the

plug

connector

marked

Cone

4.

(See

illustration

#1)

6.

Locate

the

three

threaded

studs

where

the

Electronic

Compact

logic

board

is

mounted

to

the

keyboard

assembly.

On

the

exposed

threads,

of

each

of

the

three

studs,

install

one

of

the

threaded

standoffs

which

is

supplied

with

the

D80

interface.

7.

The

D80

interface

board

has

pins

which

protrude

from

its

bottom

side.

These

pins

are

designed

to

insert

into

the

now

vacant

socket

of

IC4

and

also

into

the

left

hand

vacant

keyboard

plug

socket

of

the

Electronic

Compact

interface

board.

Carefully

position

the

D80

interface

board

over

the

typewriter

logic

board,

and

align

it

such

that

the

two

sets

of

pins

will

insert

into

the

40

pin

and

10

pin

sockets

and

th.en

press

firmly

to

seat

the

pins

into

the

connectors.

8.

Plug

the

left

side

flat

keyboard

cable

into

the

plug

socket

marked

Pl

on

the

D80

interface

board.

See

illustration

#2.

9 .

Plug

the

Cone

4

plug

into

the

Electronic

Compact

logic

through

the

square

hole

in

the

D80

interface.

illustration

#2)

board

(See

10.

Install

the

3

machine

screws

through

the

D80

interface

board

and

into

the

threaded

standoffs

which

were

installed

in

step

#6.

Do

not

over

tighten

these

screws

or

the

PCB

may

be

damaged

or

cracked.

Rev.

6/8

3

- 1 -
