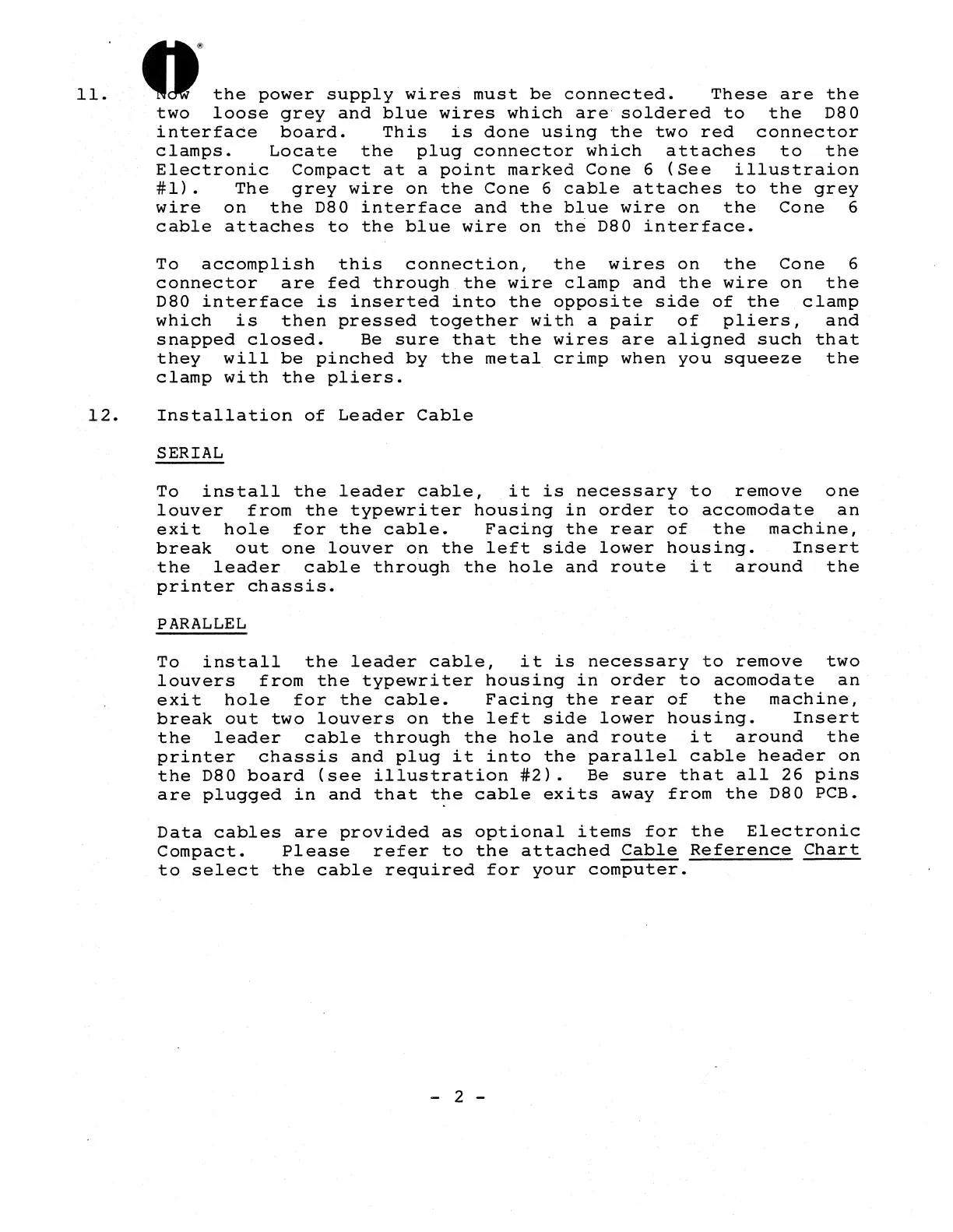

11.
~· the power supply wires must be connected. These are the
two loose grey and blue wires which are soldered to the D80
interface board. This is done using the two red connector
clamps. Locate the plug connector which attaches to the
Electronic Compact at a point marked Cone 6 (See illustraion
#1). The grey wire on the Cone 6 cable attaches to the grey
wire on the D80 interface and the blue wire on the Cone 6
cable attaches to the blue wire on the D80 interface.
To accomplish this connection, the wires on the Cone 6
connector are fed through the wire clamp and the wire on the
D80 interface is inserted into the opposite side of the clamp
which is then pressed together with a pair of pliers, and
snapped closed. Be sure that the wires are aligned such that
they will be pinched by the metal crimp when you squeeze the
clamp with the pliers.
12. Installation of Leader Cable
SERIAL
To install the leader cable, it is necessary to remove one
louver from the typewriter housing in order to accomodate an
exit hole for the cable. Facing the rear of the machine,
break out one louver on the left side lower housing. Insert
the leader cable through the hole and route it around the
printer chassis.
PARALLEL
To install the leader cable, it is necessary to remove two
louvers from the typewriter housing in order to acomodate an
exit hole for the cable. Facing the rear of the machine,
break out two louvers on the left side lower housing. Insert
the leader cable through the hole and route it around the
printer chassis and plug it into the parallel cable header on
the D80 board (see illustration #2). Be sure that all 26 pins
are plugged in and that the cable exits away from the 080 PCB.
Data cables are provided as optional items for the Electronic
Compact. Please refer to the attached Cable Reference Chart
to select the cable required for your computer.
- 2 -
