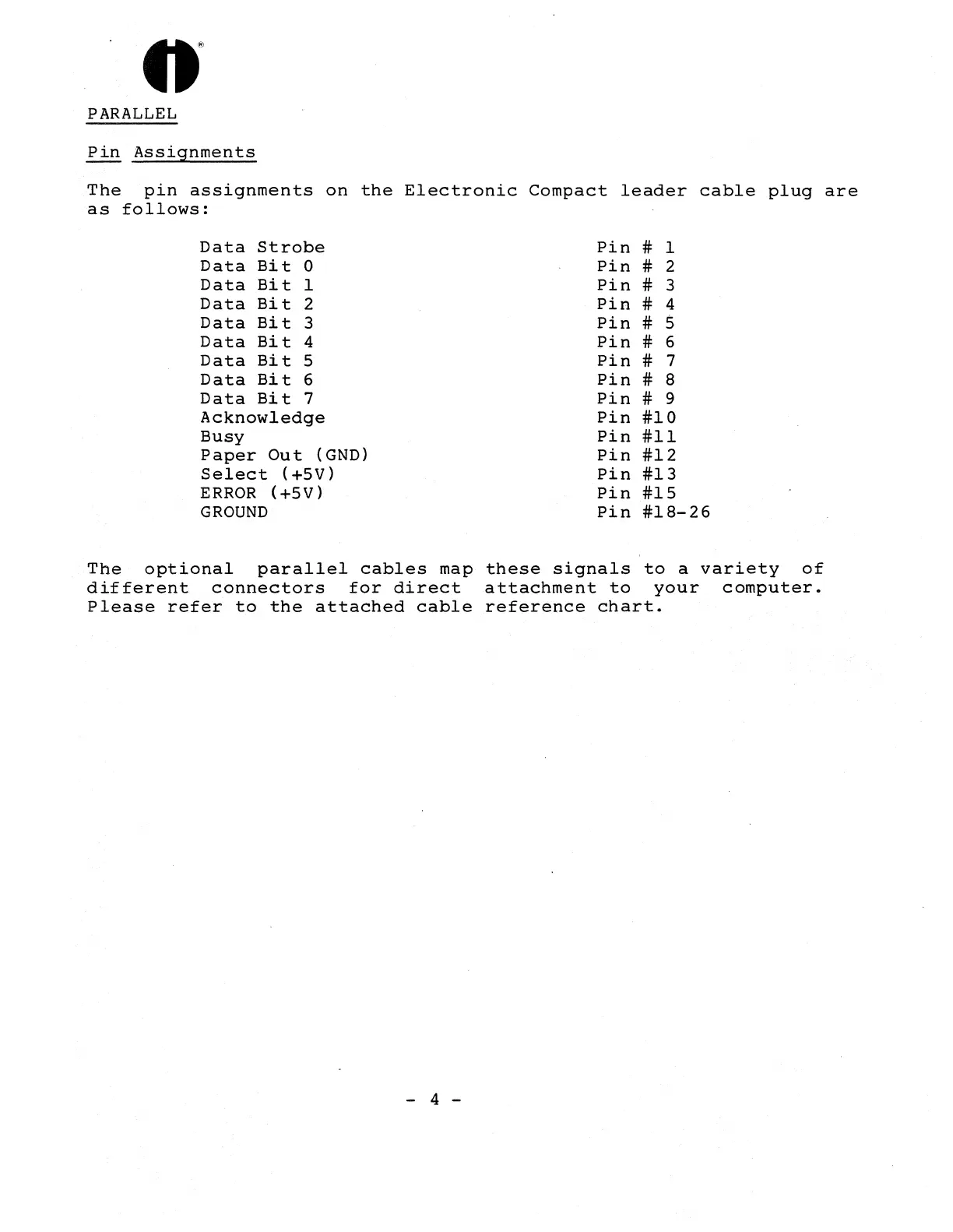

PARALLEL

Pin

Assignments

The

pin

assignments

on

the

Electronic

Compact

leader

cable

plug

are

as

follows:

Data

Strobe

Data

Bit

O

Data

Bit

1

Data

Bit

2

Data

Bit

3

Data

Bit

4

Data

Bit

5

Data

Bit

6

Data

Bit

7

Acknowledge

Busy

Paper

Out

(GND)

Select

(+SV)

ERROR

(+SV)

GROUND

Pin

# 1

Pin

# 2

Pin

# 3

Pin

# 4

Pin

# 5

Pin

# 6

Pin

# 7

Pin

# 8

Pin

# 9

Pin

#10

Pin

#11

Pin

#12

Pin

#13

Pin

#15

Pin

#18-26

The

optional

parallel

cables

map

these

signals

to

a

variety

of

different

connectors

for

direct

attachment

to

your

computer.

Please

refer

to

the

attached

cable

reference

chart.

- 4 -
