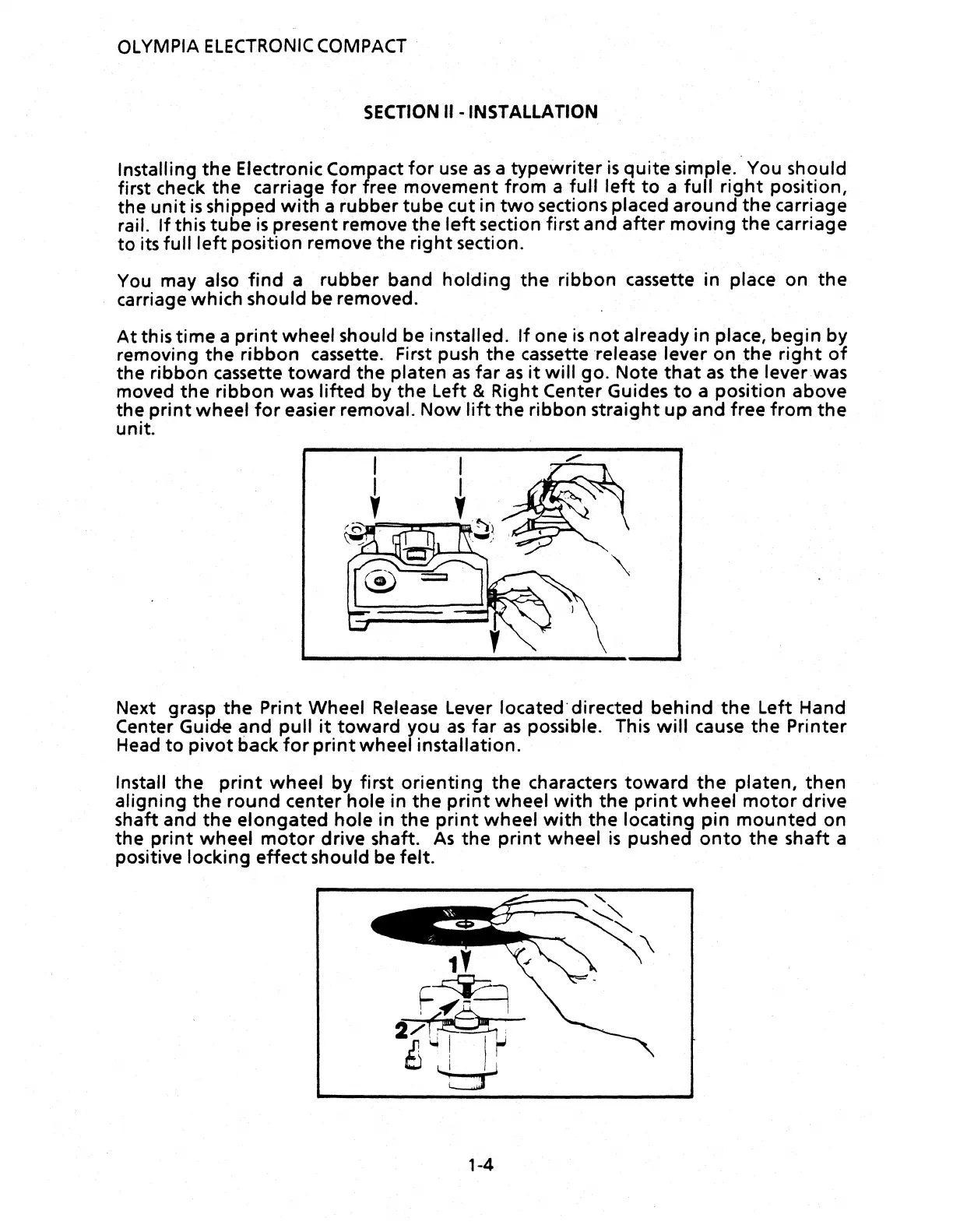

OLYMPIA

ELECTRONIC

COMPACT

SECTION II - INSTALLATION

Installing

the

Electronic Compact

for

use

as

a

typewriter

is

quite

simple. You should

first check

the

carriage

for

free

movement

from

a

full

left

to

a

full

right

position,

the

unit

is

shipped

with

a

rubber

tube

cut

in

two

sections placed

around

the

carriage

rail.

If

this

tube

is

present remove

the

left

section first

and

after

moving

the

carriage

to

its

full

left

position remove

the

right

section.

You may also

find

a

rubber

band

holding

the

ribbon

cassette in place on

the

carriage which should be removed. .

At

this

time

a

print

wheel should be installed.

If

one

is

not

already

in

place,

begin

by

removing

the

ribbon

cassette. First push

the

cassette release lever on

the

right

of

the

ribbon

cassette

toward

the

platen

as

far

as

it

will

go.

Note

that

as

the

lever was

moved

the

ribbon

was

lifted

by

the

Left

& Right Center Guides

to

a position above

the

print

wheel

for

easier removal.

Now

lift

the

ribbon

straight

up

and

free

from

the

unit.

I

t

Next grasp

the

Print Wheel Release Lever located· directed

behind

the

Left Hand

Center Guide

and

pull

it

toward

you

as

far

as

possible. This

will

cause

the

Printer

Head

to

pivot

back

for

print

wheel installation.

Install

the

print

wheel

by first

orienting

the

characters

toward

the

platen,

then

aligning

the

round

center hole in

the

print

wheel

with

the

print

wheel

motor

drive

shaft and

the

elongated

hole

in

the

print

wheel

with

the

locating

pin

mounted

on

the

print

wheel

motor

drive shaft.

As

the

print

wheel

is

pushed

onto

the

shaft

a

positive locking

effect

should be

felt.

1-4
