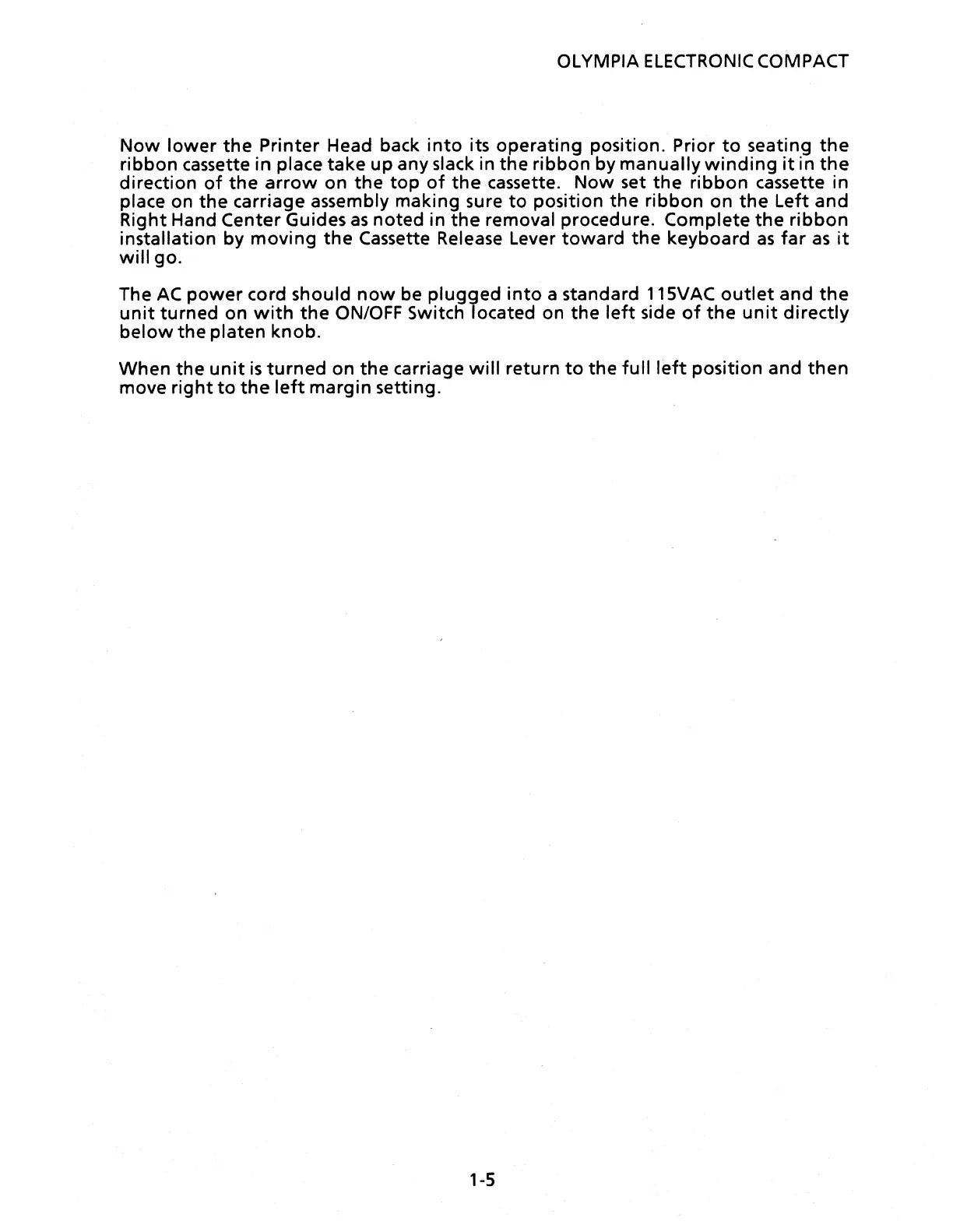

OLYMPIA

ELECTRONIC

COMPACT

Now

lower

the

Printer

Head back

into

its

operating

position. Prior

to

seating

the

ribbon

cassette

in

place

take

up

any slack in

the

ribbon

by

manually

winding

it

in

the

direction

of

the

arrow

on

the

top

of

the

cassette.

Now

set

the

ribbon

cassette in

place on

the

carriage assembly making sure

to

position

the

ribbon

on

the

Left

and

Right Hand Center Guides

as

noted

in

the

removal procedure. Complete

the

ribbon

installation by

moving

the

Cassette Release Lever

toward

the

keyboard

as

far

as

it

will

go.

The

AC

power

cord should

now

be

plugged

into

a standard

11

SVAC

outlet

and

the

unit

turned

on

with

the

ON/OFF Switch located on

the

left

side

of

the

unit

directly

below

the

platen

knob.

When

the

unit

is

turned

on

the

carriage

will

return

to

the

full

left

position and

then

move

right

to

the

left

margin

setting.

1-5
