Xerox VersaLink B600 User Manual

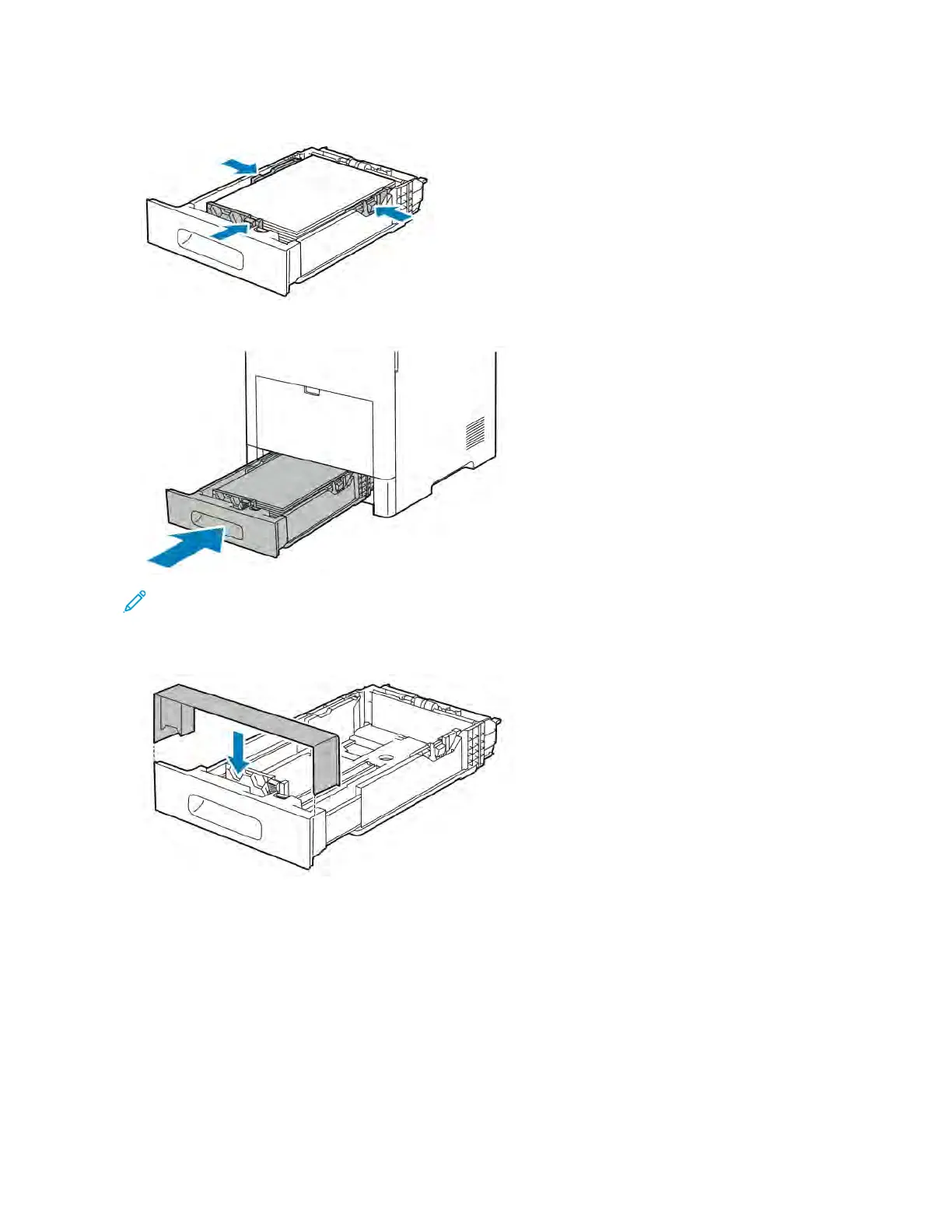

6. Adjust the length and width guides to fit the paper.
7. Insert the tray into the printer.
Note: To avoid paper jams, do not remove the paper cover while printing is in progress.
8. If the tray is extended for Legal-size paper, the tray protrudes when it is fully inserted into the printer. You can
place a cover over the area protruding out of the tray.
9. If the Tray Mode is set to Fully Adjustable, the printer prompts you to set the paper type, size, and color.
a. If the paper type, size and color are correct, touch OOKK.
b. If the paper type, size or color are incorrect, change the settings.
• To select a paper type, touch the current paper type, then from the list, select the type.
• To select a sheet size, touch the current size setting, then from the list, select the size.
• To select a different paper color, touch the current paper color, then from the list, select the color.
c. To save the settings, touch OOKK.
10. To change a paper tray to Dedicated mode:
Xerox
®
VersaLink
®
B600/B610 Printer User Guide 117
Paper and Media

Xerox VersaLink B600 Specifications

General

Package weight	28000 g
Country of origin	Vietnam
Maximum resolution	1200 x 1200 DPI
Optional connectivity	Wireless LAN
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Sustainability certificates	ENERGY STAR
Operating relative humidity (H-H)	10 - 85 %
Printing colors	Black
Maximum duty cycle	250000 pages per month
Recommended duty cycle	0 - 20000 pages per month
Number of print cartridges	1
Page description languages	HP-GL, PCL 5e, PCL 6, PostScript 3, TIFF, XPS
USB port	Yes
Package depth	634 mm
Package width	580 mm
Package height	607 mm
Print technology	Laser
Warm-up time (from sleep mode)	35 s
Time to first page (black, normal)	6.3 s
Print speed (black, normal quality, A4/US Letter)	55 ppm
Duplex print speed (black, normal quality, A4/US Letter)	49.3 ppm
Paper input type	Paper tray
Total input capacity	700 sheets
Total output capacity	150 sheets
Custom media width	76.2 - 190 mm
Custom media length	216 - 356 mm
Duplex media weight	60 - 176 g/m²
Paper tray media types	Bond paper, Card stock, Envelopes, Labels, Letterhead, Plain paper, Recycled paper
Paper tray media weight	60 - 220 g/m²
Maximum ISO A-series paper size	A4
Wi-Fi	-
Cabling technology	10/100/1000Base-T(X)
Security algorithms	256-bit AES, FIPS 140-2, SNMPv3, SSL/TLS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	TCP/IP, HTTP/HTTPS, Internet Printing Protocol, LPR/LPD, Raw Socket Printing/Port 9100, IPv4/IPv6, WSD LDAP, FTP
Processor cores	2
Processor family	ARM Cortex
Sound power level (standby)	27.1 dB
Sound pressure level (printing)	56.8 dB
Current rating	8 A
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	72 W
Power consumption (printing)	900 W
Control type	Touch
Product color	White
Market positioning	Business
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Server operating systems supported	Windows 2000 Server, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Cables included	AC
Included cartridge capacity (black)	1 pages
Compatibility	VersaLink B600/B610

Weight and Dimensions

Depth	465.5 mm
Width	427.4 mm
Height	443.4 mm
