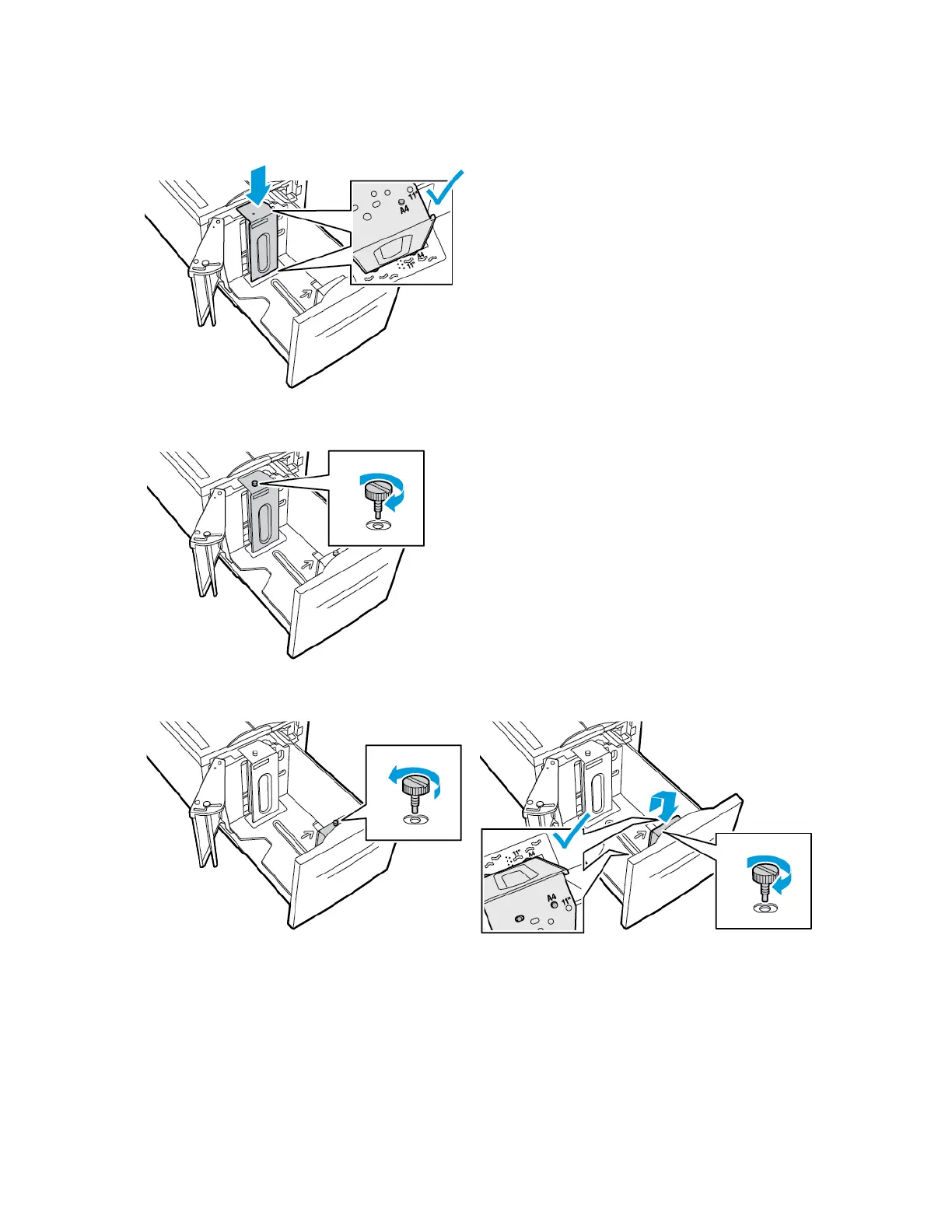

4. Slide the top of the spacer plate down to engage the peg on the back of the tray into the
matching hole in the plate.
5. Install the screw to secure the spacer plate.
6. Repeat these steps for the spacer plate at the front of Tray 6.
7. On the top of the side gate, locate the pin.
166
Xerox
®
VersaLink
®
C70XX Color Multifunction Printer
User Guide
Paper and Media
