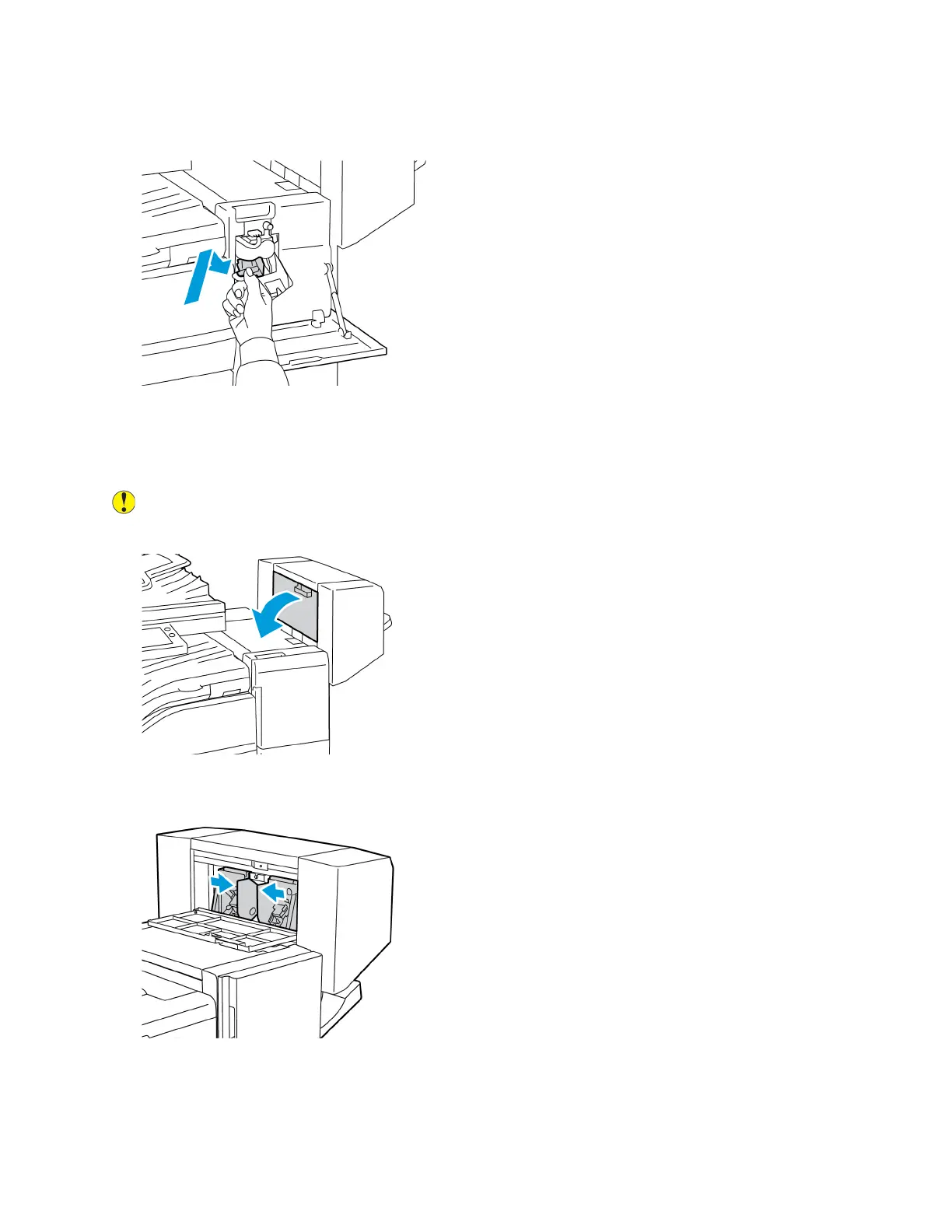

7. Grasp the new staple cartridge by the orange handle, then insert the cartridge into the stapler
assembly until it clicks.
8. Close the finisher front door.
RReeppllaacciinngg SSttaapplleess iinn tthhee BBooookklleett MMaakkeerr ooff tthhee OOffffiiccee FFiinniisshheerr
Caution: Do not perform this procedure while the printer is printing.
1. Open the booklet maker side cover.
2. If the staple cartridges are not visible, grip the vertical panels at the left and right of the opening
and slide the panels to the center.
Xerox
®
VersaLink
®
C70XX Color Multifunction Printer
User Guide
217
Maintenance
