EEmmppttyyiinngg tthhee HHoollee PPuunncchh WWaassttee CCoonnttaaiinneerr iinn tthhee OOffffiiccee FFiinniisshheerr

Caution: Do not perform this procedure while the printer is printing.

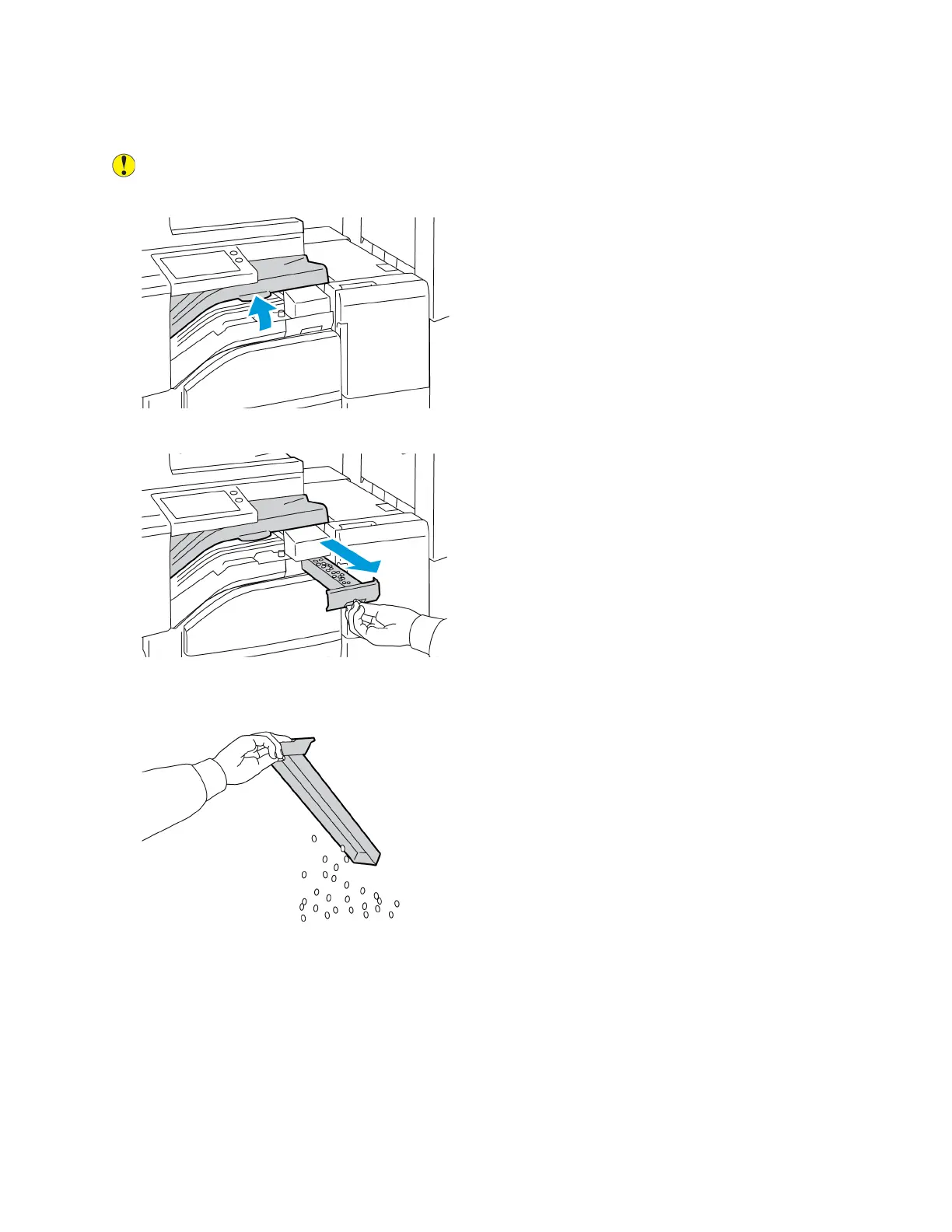

1. Lift the finisher transport top cover.

2. Pull out the hole-punch waste container.

3. Empty the container.
