3
Follow these steps to use the Platen Glass
a. Select the Scan Chart with Document Glass button on the Touch Screen.
In the next steps, you will scan the Calibration Chart 4 times – 2 times per side. For each scan you will
reposition the chart.
For each scan do not place the target against the registration edge, but leave at least 20 mm to the edge of
the glass. Also makesure the target is not skewed more than 15 degrees:

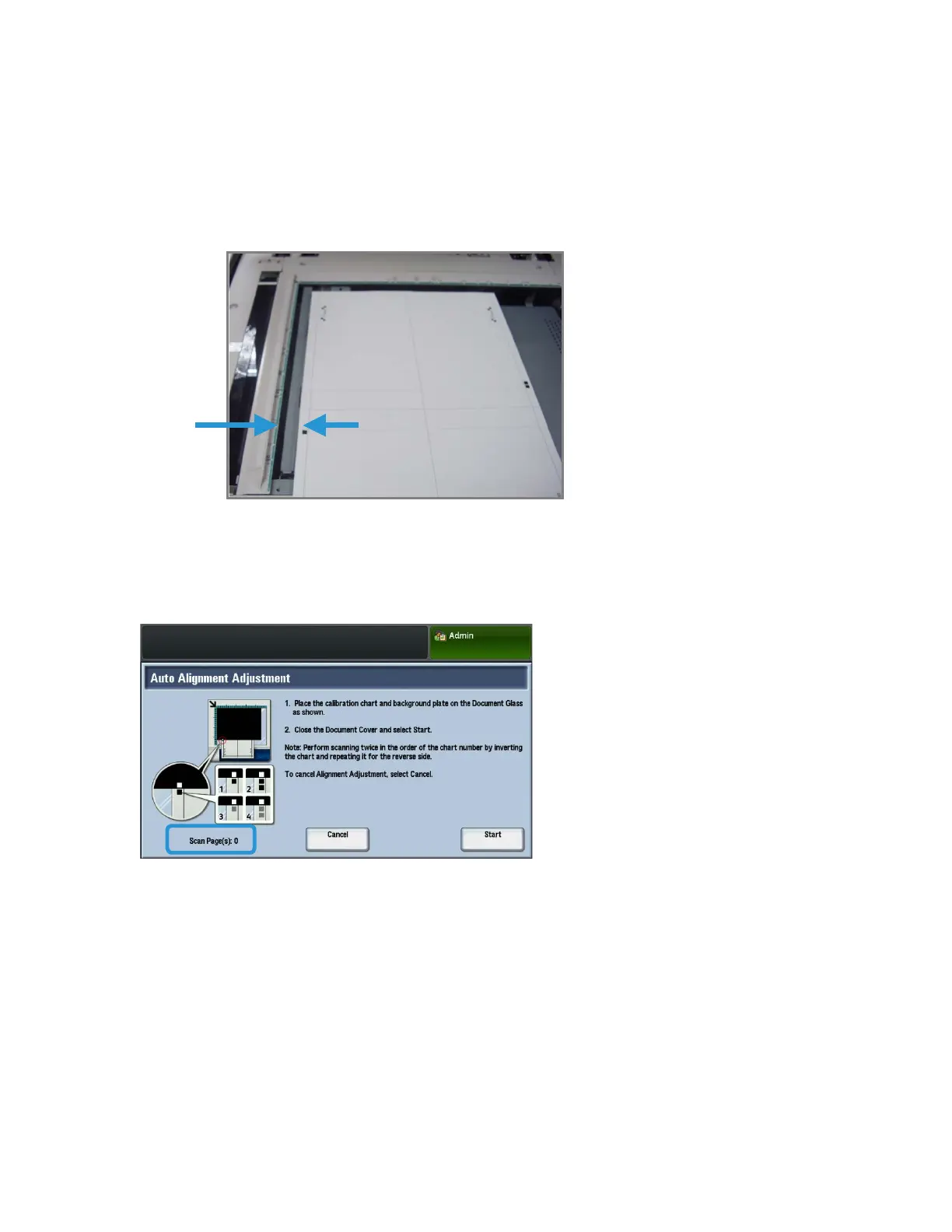

b. Open the cover of the Duplexing Automatic Document Feeder (DADF). Notice that the Control Panel now
displays the Auto Alignment Adjustment screen. The instructions on this screen will assist you in
performing the next several steps. Notice that the bottom right of the screen displays: Scan Page(s): 0.
The next series of steps will be performed 4 times; twice for each side of the Alignment Adjustment
Calibration Chart that you printed.
c. Follow these bullets to position the Calibration Chart and the Background Plate onto the glass:
• Place the Background Plate on the platen and align it to the rear left corner, as shown on the Control
Panel screen. The all-black side of the document should be placed face down on the platen. The side of
the document with the instructional icons should face up. Note that these icons are identical to those
displayed on the Control Panel screen.
• Select one of the five Calibration Charts that you printed.
• Inspect the Calibration Chart to find the side of the document that contains a single black square
printed in the left-hand margin. Orient the document so that this square is in the lower left-hand
quadrant of the page as you hold the document.
• Slide the chart under the Background Plate that you placed on the platen in the previous step.
To Next Page
