Xerox WORKCENTRE 5745

Installation
Xerox® Smart Card
Installation Guide
15
4. Access CAC configuration settings
The next steps vary depending on which Xerox WorkCentre model you have.
• For Xerox WorkCentre 5030/5050 refer to page 15.
• For Xerox WorkCentre 5632/5638/5655/5665/5675/5687, Xerox WorkCentre 5135/5150 and
Xerox WorkCentre 5735/5740/5755/5765/5775/5790 refer to page 16.

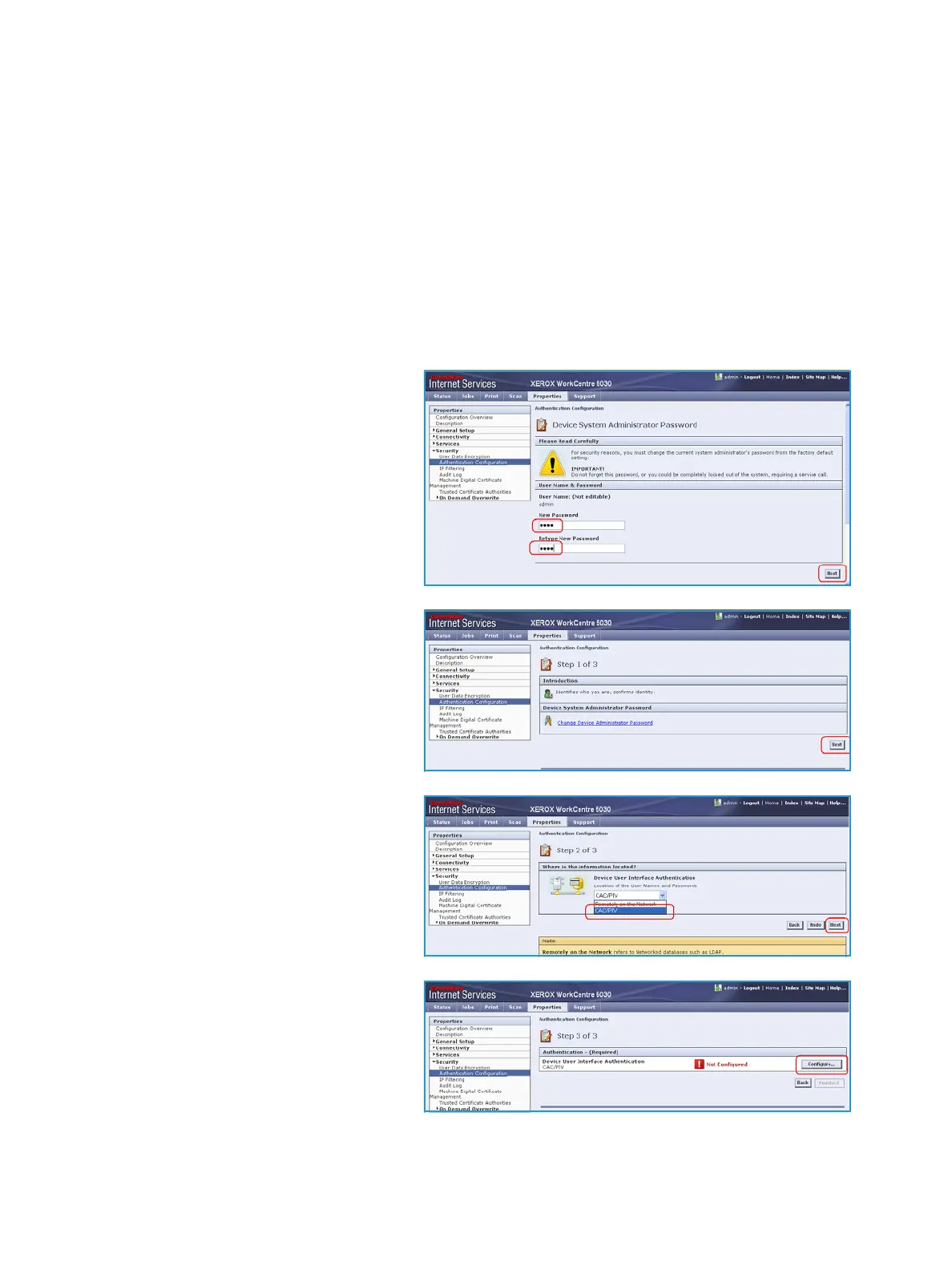

Xerox WorkCentre 5030/5050:
a. Select Security and select Authentication Configuration.
Note: If this is the first time you are entering the authentication wizard, you may be prompted to
enter a password.
b. Enter the password and select
Next.
c. Select Next.
d. Select CAC/PIV and select Next.
e. Select Configure.
The Authentication Configuration
screen is displayed.
