Xerox WorkCentre 6505N User Manual

Troubleshooting
WorkCentre 6505 Color Laser Multifunction Printer
User Guide
198

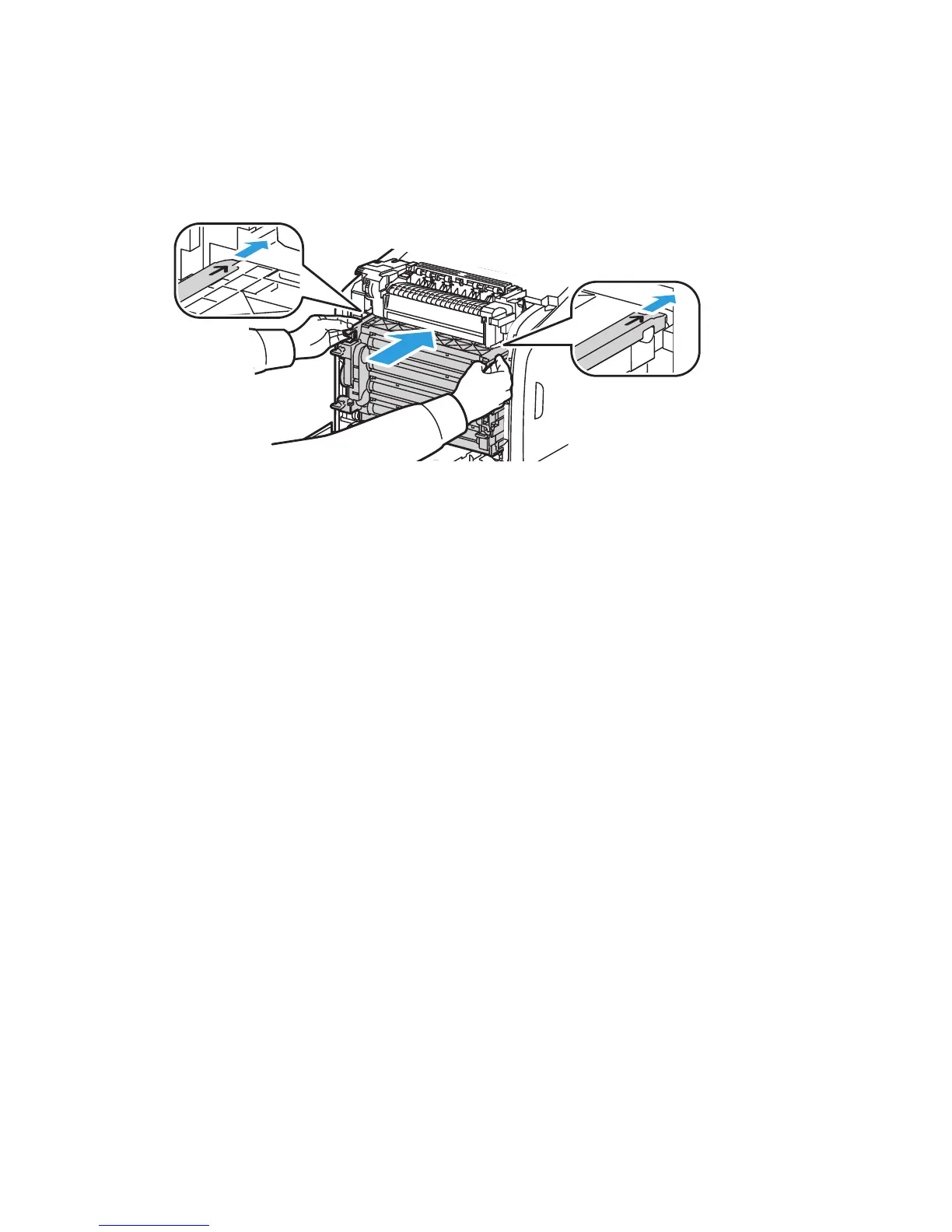

10. Reinstall the imaging unit:
a. Grasp the unit by its peach-colored pull-tabs on the top edge and install the unit in the
printer. Make sure to insert the unit into the guides in the printer, then push the unit all the
way back into the printer.
b. Turn the four twist-locks to the right to lock the unit.
11. Fold the transfer belt unit back into place and close the printer front cover.
wc6505_043
