Xilinx Alveo U250 Getting Started Guide

• For an 8-pin connector, connect the power supply to the card.

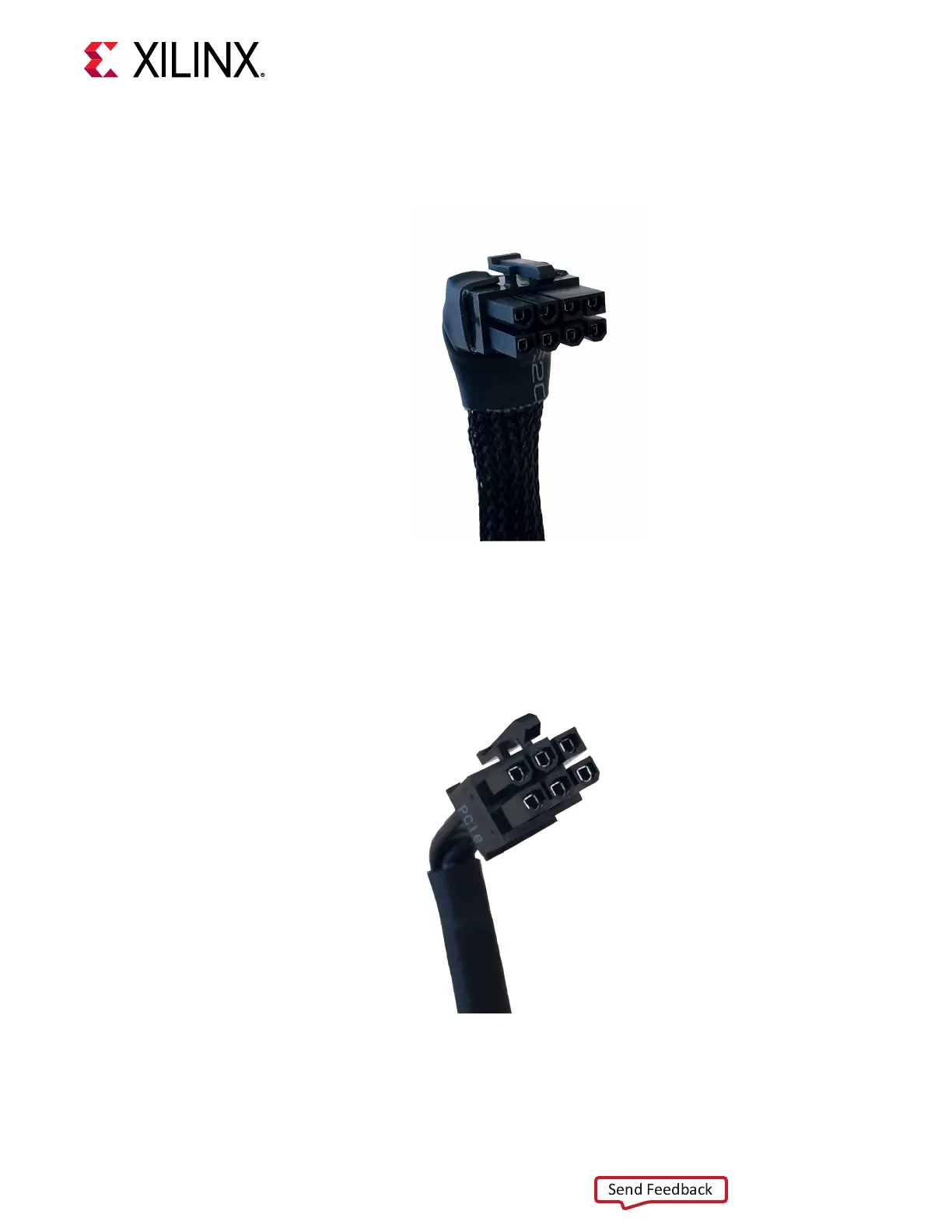

Figure 6: Example of 8-Pin PCIe Aux Power Connector
• For a 6-pin connector, connect the power supply to the card using the six rightmost pins
of the card's 8-pin power supply socket, leaving the two lemost pins unused, as
idened by the red box in the following gures.
Figure 7: Example of 6-Pin PCIe Aux Power Connector
Chapter 3: Card Installation Procedures
UG1301 (v1.3) February 12, 2019 www.xilinx.com
Getting Started with Alveo Accelerator Cards 17
Send Feedback
