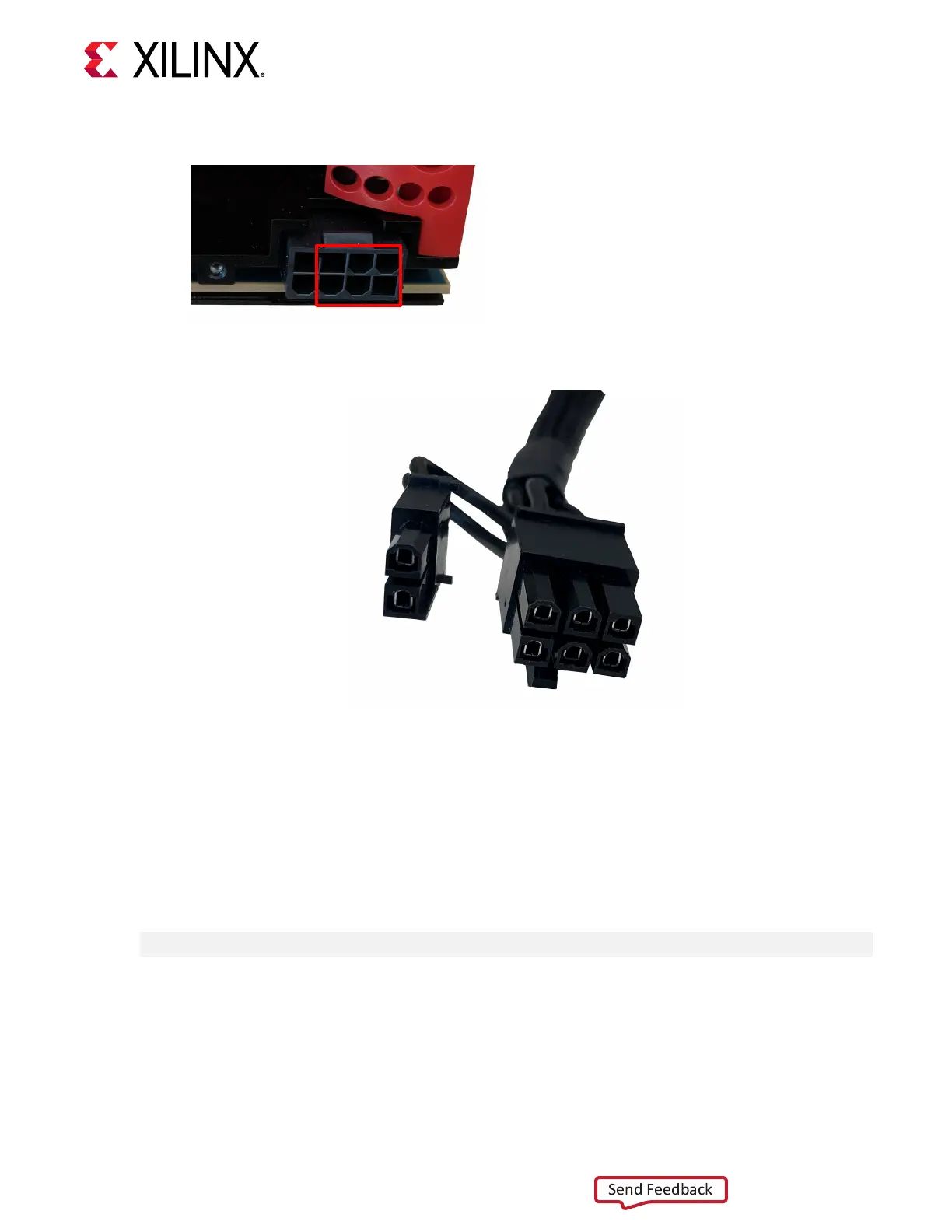

Figure 8: 6-Pin PCIe Aux Power Connector Pin Relative to 8-Pin
Figure 9: Example of 6-Pin to 8-Pin PCIe Aux Power Connector Cord
6. If you previously removed the computer casing, re-install the casing.
7. Connect the power cord and turn on the computer.
Note: Do not power-on a passively cooled card without adequate forced airow across the card, otherwise
the card can be damaged. For more informaon, see Alveo U200 and U250 Data Center Accelerator Cards
Data Sheet (DS962) and Alveo U280 Data Center Accelerator Cards Data Sheet (DS963).
To verify that the device has been installed correctly, enter the following Linux command in a
terminal:
$ sudo lspci -vd 10ee:
If the card is successfully installed and found by the operang system, a message similar to the
one below displays.
If you do not see a similar message, see Chapter 7: Troubleshoong.
Chapter 3: Card Installation Procedures
UG1301 (v1.3) February 12, 2019 www.xilinx.com
Getting Started with Alveo Accelerator Cards 18
Send Feedback
