Xilinx KC705

12 www.xilinx.com KC705 Getting Started Guide
UG913 (v1.0.1) May 31, 2012
Chapter 1: Getting Started with the Kintex-7 FPGA KC705 Embedded Kit
Figure 1-6 shows the output display for the selections made in step 7.
X-Ref Target - Figure 1-5

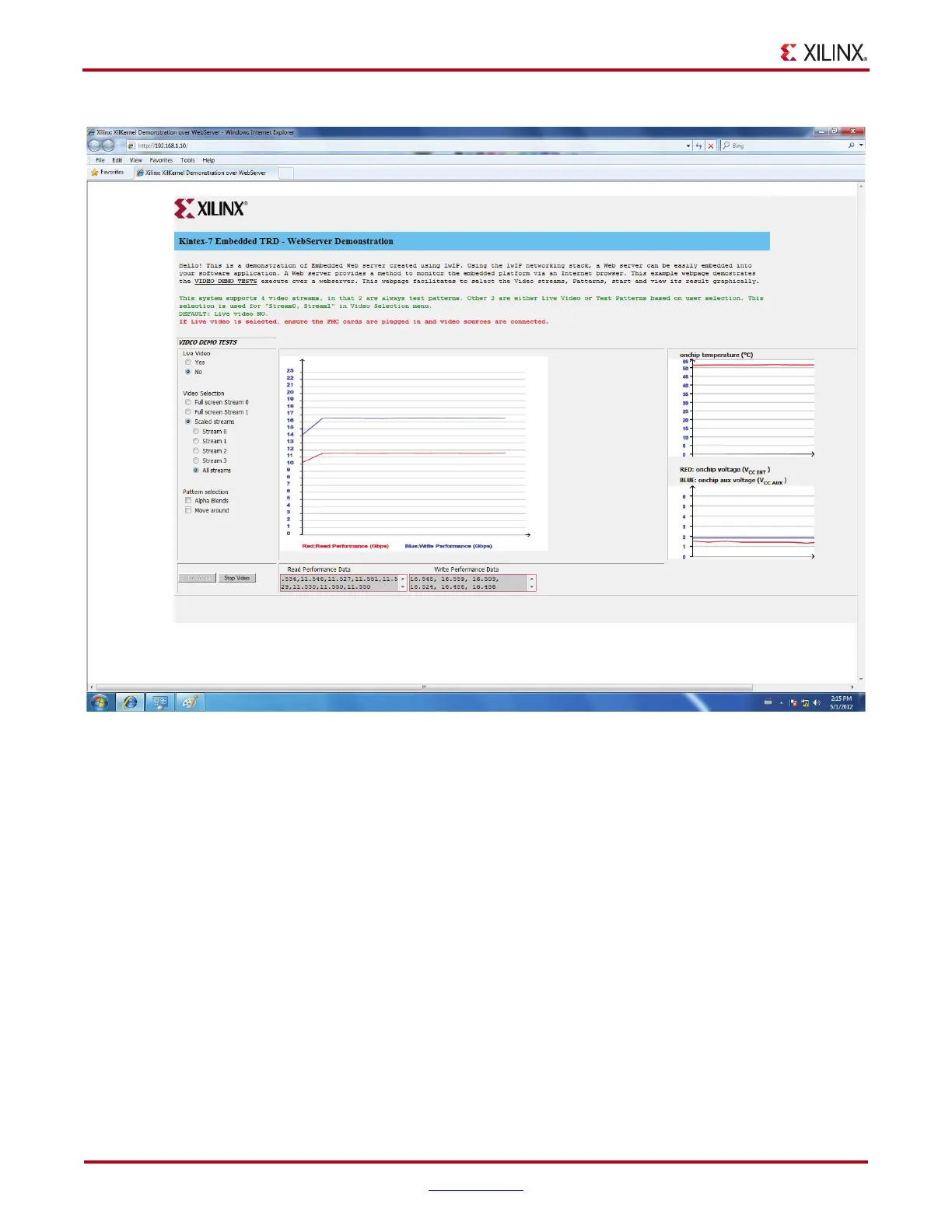

Figure 1-5: Video Demonstration Web Page with Data Plotted
UG913_c1_05_050212
