Next Steps
Next Steps
After running through an FPGA-based embedded processor demonstration and installing
the ISE Design Suite: Embedded Edition, the user is ready to create custom embedded
systems for the Kintex-7 XC7K325T FPGA.
Figure 1-8 is a snapshot of the directory structure in the KC705_Embedded_Kit folder on
the USB flash drive included in the embedded kit or from the Kintex-7 FPGA KC705
Evaluation Kit page: http://www.xilinx.com/products/boards-and-kits/
EK-K7-KC705-G.htm. Xilinx recommends copying the contents of the USB drive to a
working area on the user’s host computer.
Note:
There should be no spaces in the path name of the working area on the host computer.
The KC705_Embedded_Kit directories and their content are explained in Table 1-1.
Reference Designs
MicroBlaze Processor BIST Subsystem
• KC705_System
• This is the base MicroBlaze processor subsystem including the software
applications and platforms.

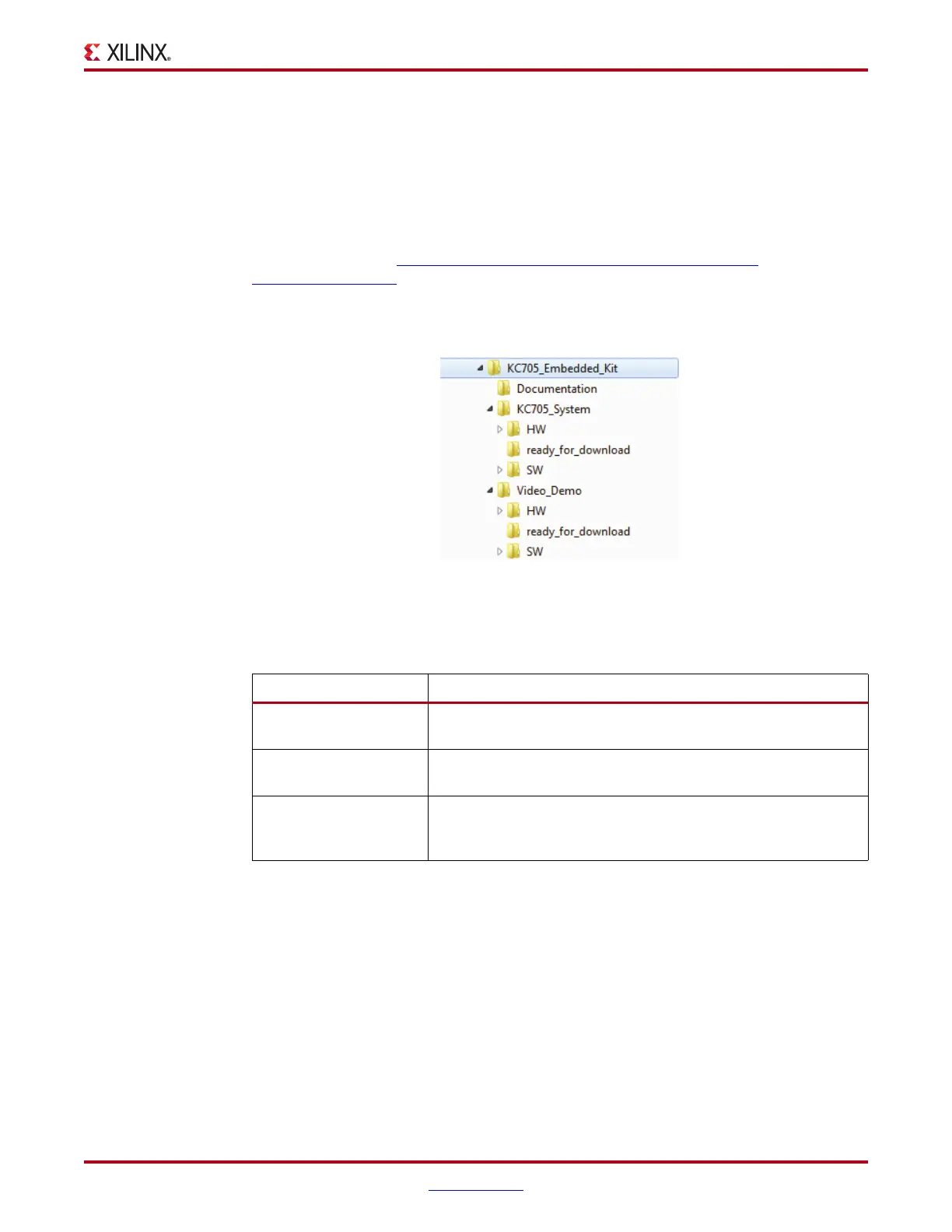

X-Ref Target - Figure 1-8
Figure 1-8: KC705 Embedded Kit Directory Structure
Table 1-1: KC705 Embedded Kit Directory Structure Contents
Directory Purpose
Documentation Includes the getting started guide and other supporting
documentation provided with this embedded kit.
KC705_BIST_System BIST MicroBlaze processor subsystem including the software
applications and platforms.
Video_Demo Contains the BIST MicroBlaze processor subsystem along with the
cores for the video demonstration. Source files for the video
demonstration are included here.
UG913_c1_08_051712
