Xilinx Kintex-7 FPGA KC705 Getting Started

10 www.xilinx.com KC705 Getting Started Guide
UG913 (v3.0.2) April 23, 2013
Chapter 1: Getting Started with the Kintex-7 FPGA KC705 Embedded Kit

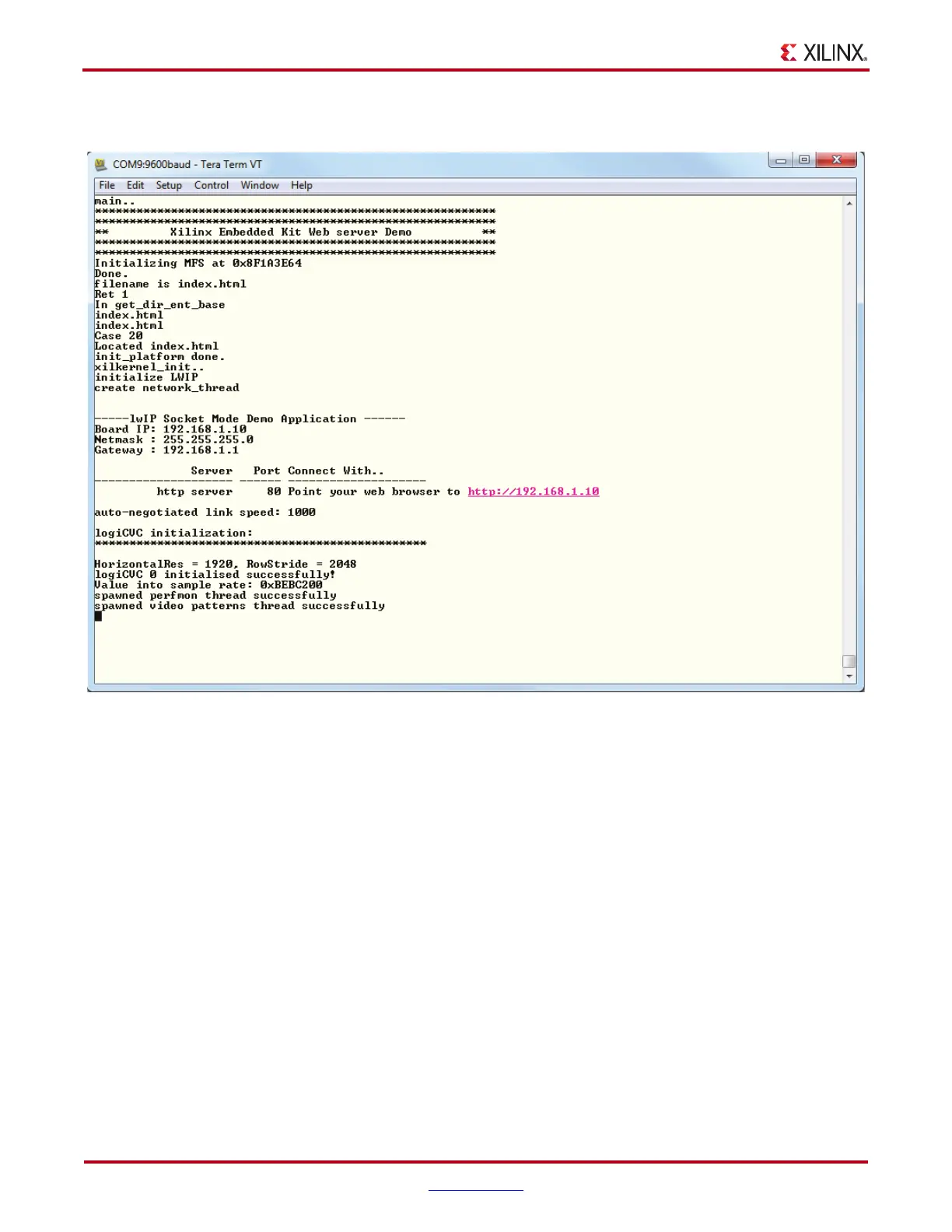

5. The UART output should be as shown in Figure 1-3.
X-Ref Target - Figure 1-3
Figure 1-3: Video Demonstration UART Output
UG913_c1_03_050312

Xilinx Kintex-7 FPGA KC705 Specifications

General

FPGA Speed Grade	-2
FPGA Package	FFG900
Logic Cells	326, 080
DSP Slices	840
Clock Management Tiles	10
Transceivers	16
DDR3 Memory	1GB
Flash Memory	128MB
Clock	200 MHz oscillator
Form Factor	ATX
Ethernet	10/100/1000
Expansion Connectors	FMC
USB	USB-UART
