Xilinx Kintex-7 FPGA KC705 Getting Started

KC705 Getting Started Guide www.xilinx.com 17
UG913 (v3.0.2) April 23, 2013
Appendix A
Communicating with the
KC705 USB-UART
This appendix explains the procedure for setting up UART communication between the
KC705 board and the host machine.
Installing the USB-UART Driver
1. Execute the installer for the Silicon Labs USB-UART virtual COM port (VCP) driver
from the Drivers_and_Tools folder in the package downloaded from the
embedded kit home page:
Drivers_and_Tools\CP210x_VCP_Win2K_XP_S2K3.exe.
2. Follow the installer instructions. Restart the computer when instructed to do so.
Connecting to the KC705 UART
3. Connect a USB Type-A to Mini-B 5-pin cable between the KC705 USB-UART connector
(J21) and the host computer.
4. Power on the KC705 evaluation board if it is not already powered on.
Configuring the Host Computer
5. Right-click on My Computer and select Properties. Select the Hardware tab. Click on
Device Manager.

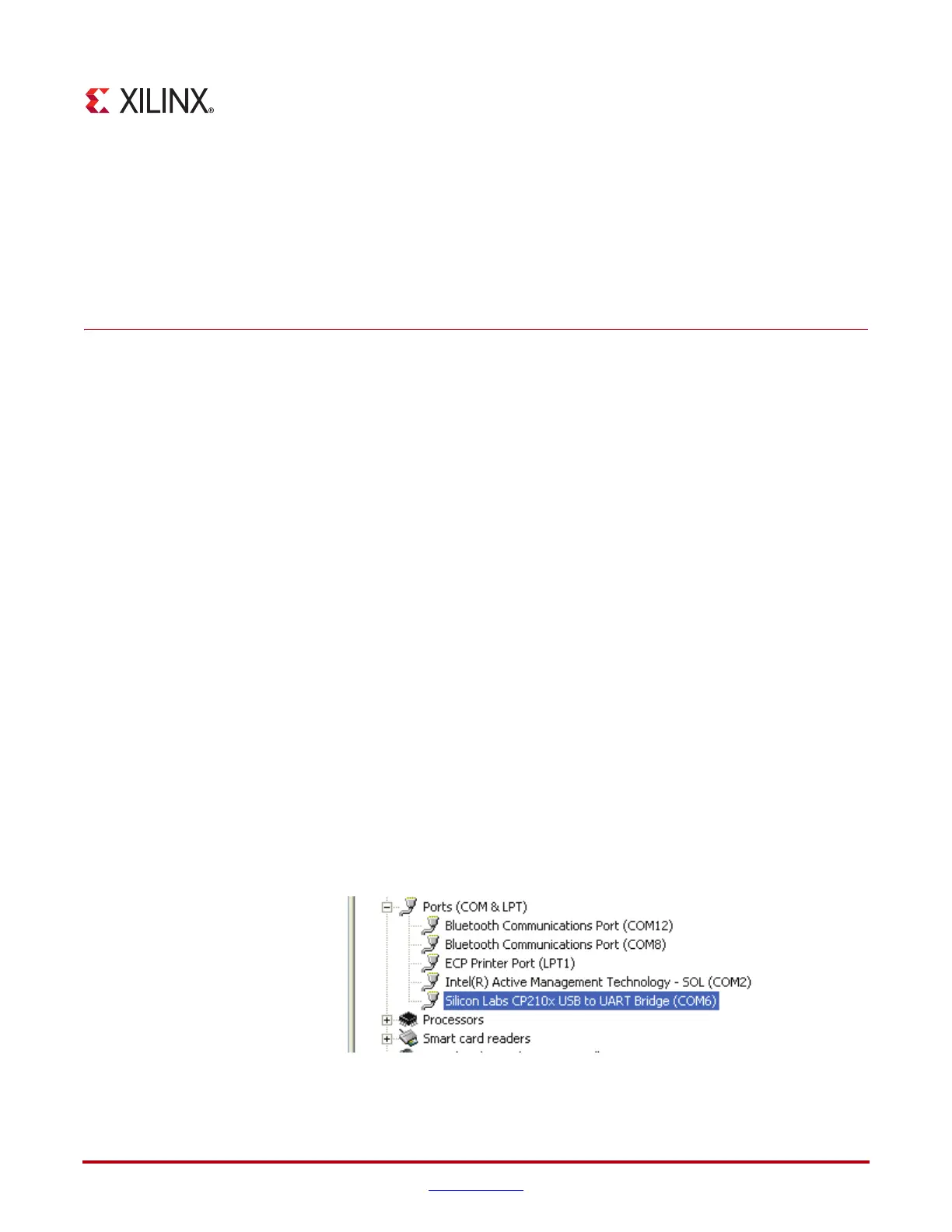

6. Expand the Ports (COM & LPT) entry as shown in Figure A-1. This shows the COM
port assigned to the Silicon Labs CP210x USB to UART Bridge. This is the COM
port to use in the serial communications program.
Note:
The COM port setting for the user system might be different from the one shown in
Figure A-1.
X-Ref Target - Figure A-1
Figure A-1: Silicon Labs USB to UART Bridge Properties
UG913_aB_08_050212

Xilinx Kintex-7 FPGA KC705 Specifications

General

FPGA Speed Grade	-2
FPGA Package	FFG900
Logic Cells	326, 080
DSP Slices	840
Clock Management Tiles	10
Transceivers	16
DDR3 Memory	1GB
Flash Memory	128MB
Clock	200 MHz oscillator
Form Factor	ATX
Ethernet	10/100/1000
Expansion Connectors	FMC
USB	USB-UART
