Appendix A: Frequently Asked Questions
2. What is the J0 symbol on the schematic screen (Figure A-2)?
The J0 symbol appears unconnected on the schematics screen and must not be
removed from the schematics. The J0 symbol inserts global simulation parameters,
such as .TEMP and .option compat (the HSPICE compatibility switch for Eldo) into
the project. These parameters are managed automatically by the configurator
programs. Removing J0 results in incorrect simulations.

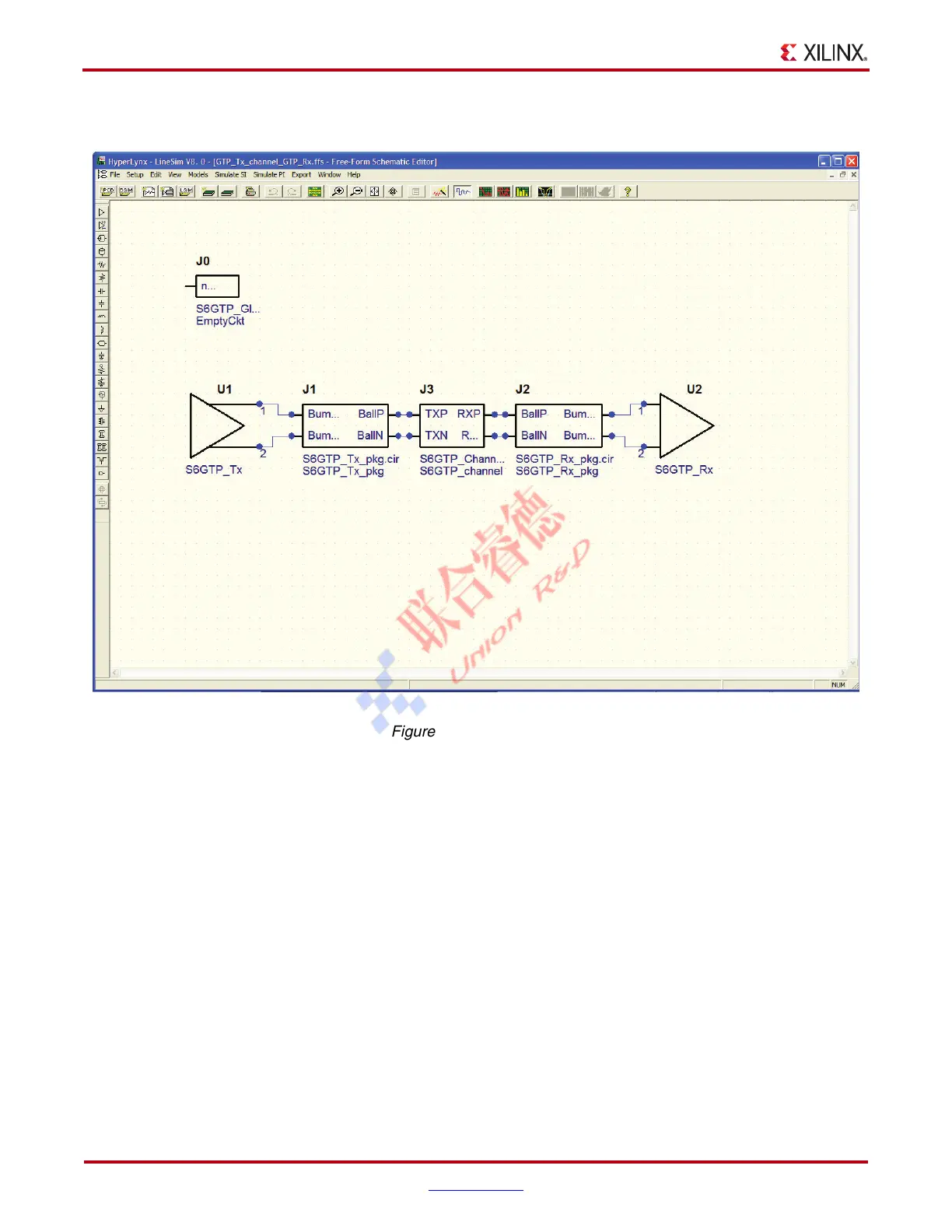

X-Ref Target - Figure A-2
Figure A-2: J0 Symbol
UG396_c1_01_042010

Xilinx Spartan-6 Specifications

General

Maximum Transceiver Data Rate	3.2 Gbps
Number of Transceivers	Up to 8
Supported Protocols	Ethernet
Power Supply	1.0V, 2.5V, 3.3V
Operating Temperature	0°C to +85°C (Commercial), -40°C to +100°C (Industrial)
Transceiver Type	Multi-Gigabit Transceivers (MGTs)
