Running the Qt-Based GUI Application Demonstration
6. Click Enable Video to start the internal Test Pattern Generator (TPG), which displays on
the monitor.
7. Exercise different options by pressing the buttons available in the GUI to evaluate the
different use cases mentioned in Table 3-1.
Video source control modes are explained as follows:
• TPG interference
X-Ref Target - Figure 3-7

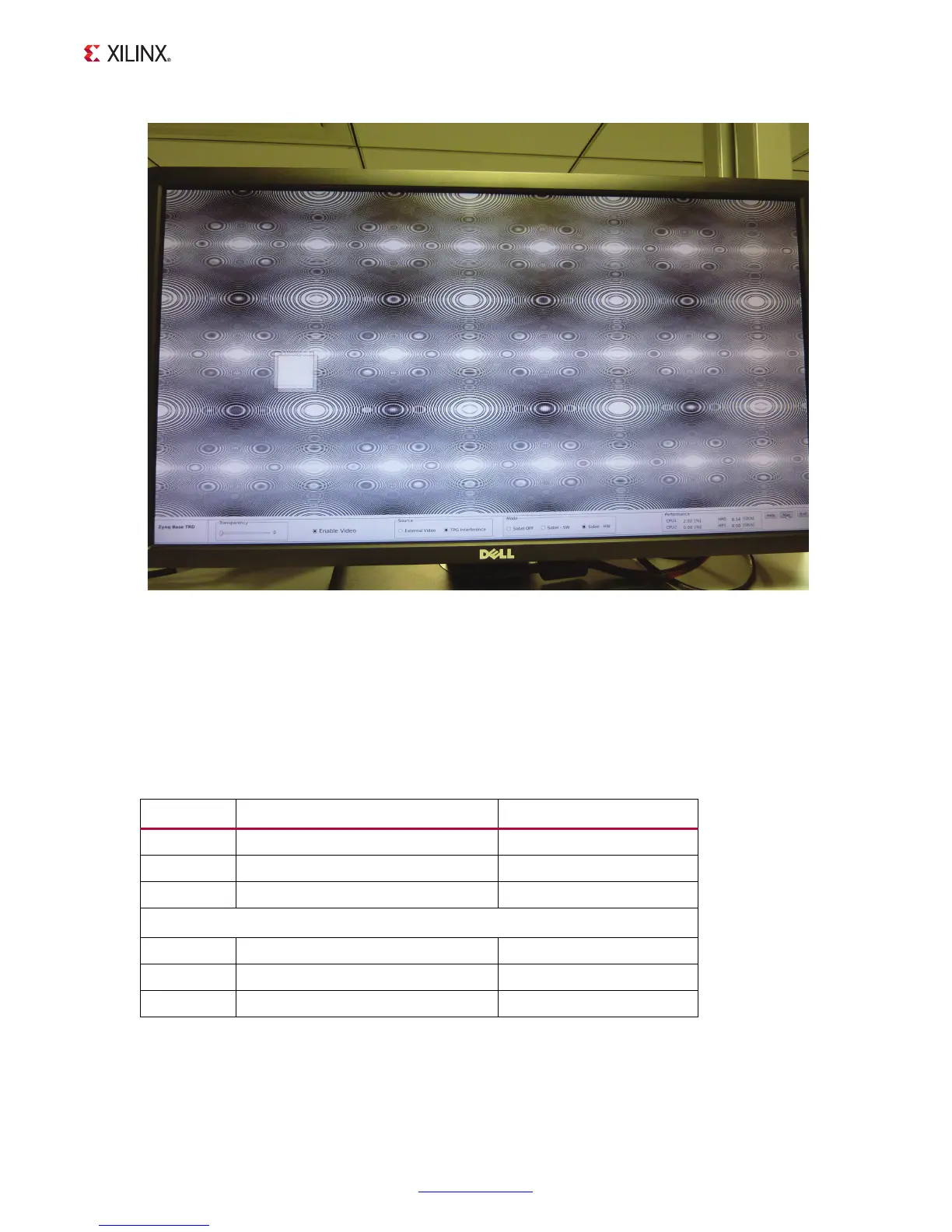

Figure 3-7: Minimized GUI Mode
UG926_c3_07_121112
Table 3-1: Zynq-7000 AP SoC Base TRD Video Demonstration Use Cases
Use Case Video Source Control Sobel Filter Control
1 TPG interference Sobel OFF
2 TPG interference Sobel - SW
3 TPG interference Sobel - HW
Additional ZVIK Options
4 External video Sobel OFF
5 External video Sobel - SW
6 External video Sobel - HW
