5. The Qt-based application allows the user to experience the Base TRD video
demonstration and is controlled through the mouse. The user can click Help for short
messages and information about the control window of the QT application. The GUI can
be minimized with the MIN button (See Figure 3-6) and can be brought back to the
original size with the MAX button. The user can also control transparency of the GUI with
the Transparency slider.
X-Ref Target - Figure 3-6

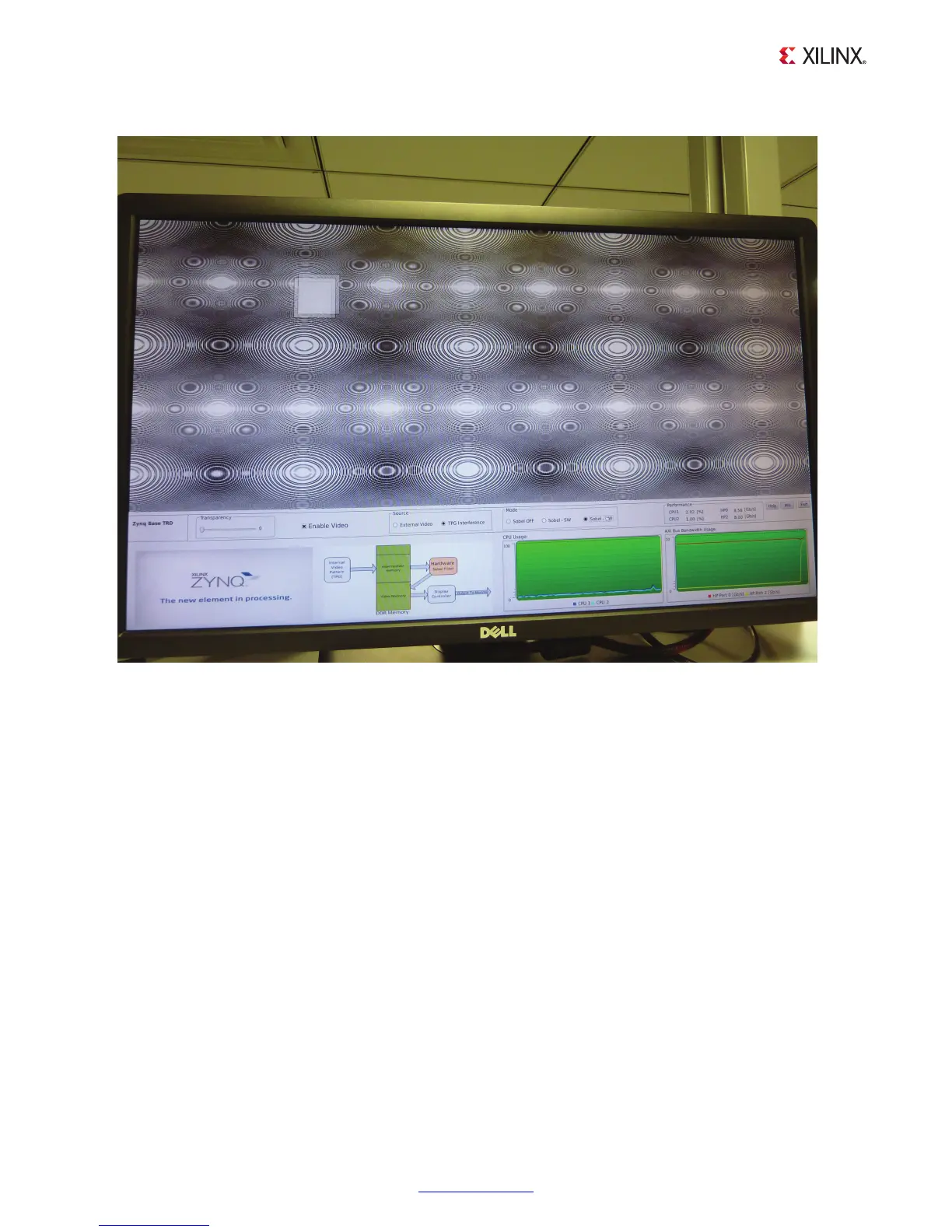

Figure 3-6: Qt-Based GUI to Control the Video Pipeline
UG926_c3_06_121112
