Xilinx ZCU102 Getting Started Quick Guide

© Copyright 2016 Xilinx
Task 5: Testing on HW:
For ease of use, there is a script provided to test on the hw. However, users can skip to Task 6 for the
steps on how to debug using the SDK GUI.
Launch the XSDB, and source the command below:
 source test_on_hw.tcl
 demo <option>
 stop
 rst
Where Options are; led, echo, helloa53, hellor5 and bram.
Type “help” for all the options
Note: User may need to power cycle between tests.

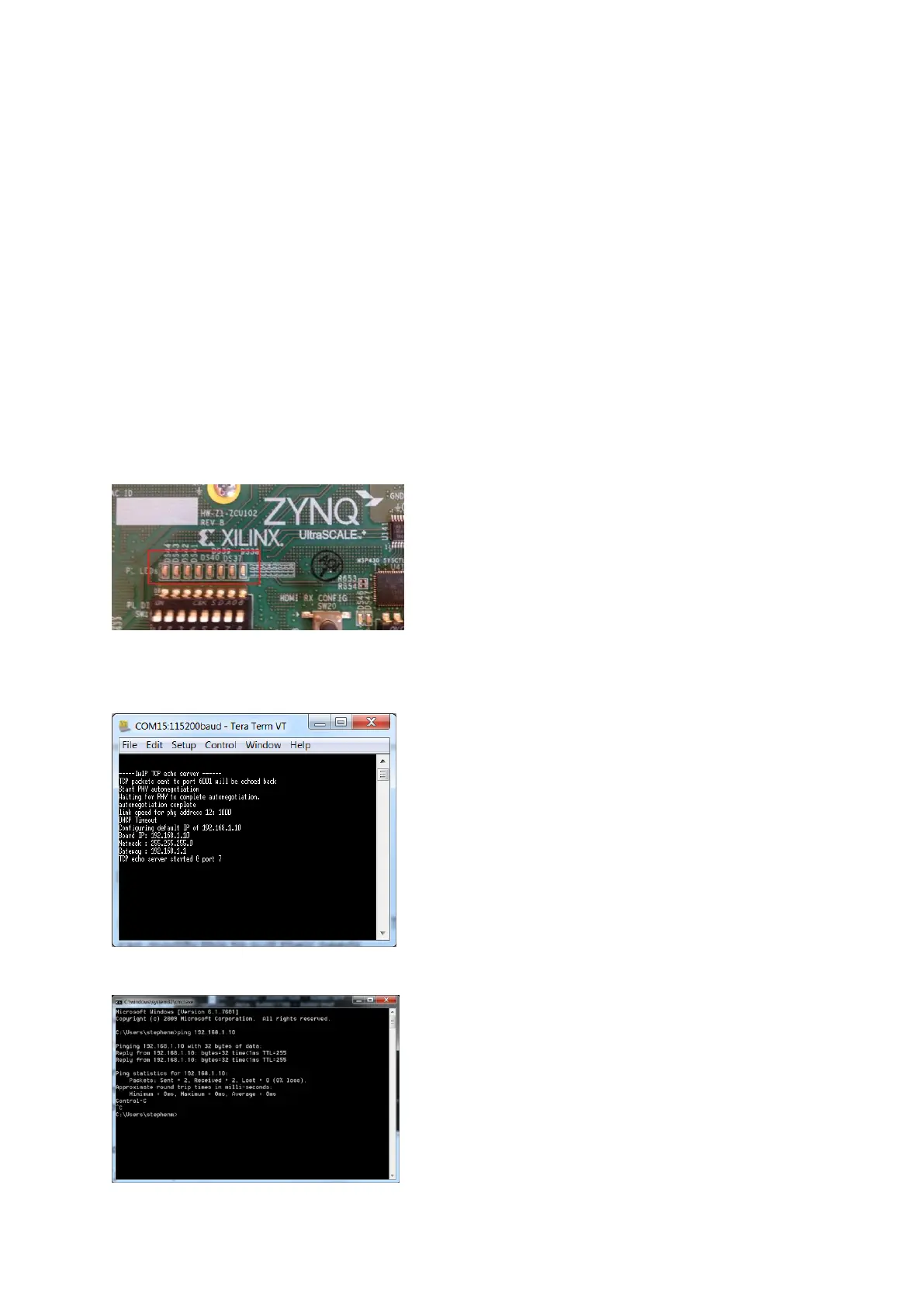

When the “led” demo is run, you should see the LEDs highlighted below blink:
Type “stop” on the XSCT console to stop this test.
When the “echo” is run, you should see the echo server on the serial port:
Users can also test a ping:

Xilinx ZCU102 Specifications

General

Processor	Quad-core ARM Cortex-A53, Dual-core ARM Cortex-R5
SD Card	MicroSD card slot
Video Outputs	DisplayPort
FPGA	Xilinx Zynq UltraScale+ XCZU9EG-2FFVB1156E
Memory	4GB DDR4 Component Memory
Storage	MicroSD card slot
Ethernet	Gigabit Ethernet
USB	1 x USB 3.0, 1 x USB 2.0
PCIe	PCIe Gen2 x4
Display	DisplayPort
Power Supply	12V DC input
SATA	SATA 3.0
Clocking	Programmable clocks
Operating System Support	PetaLinux
