Xilinx Zynq-7000 Getting Started Guide

ZC702 and ZVIK Getting Started Guide www.xilinx.com 11
UG926 (v6.0) December 17, 2013
Default Jumper and Switch Settings
°
Random programmable region of interest (ROI) readout
°
Automatic exposure control (AEC)
• Standard interchangeable
2
/
3
-inch, 8 mm C-mount lens
Default Jumper and Switch Settings
Figure 1-3 calls out the major features on the ZC702 board. See the ZC702 Evaluation Board
for the Zynq-7000 XC7Z020 All Programmable SoC User Guide (UG850) [Ref 4] for more
detailed information about the ZC702 board.
Default factory settings of jumpers and switches on the ZC702 board are highlighted in
Figure 1-4. Default switch and jumper settings are listed in Table 1-1 and Ta ble 1-2.
X-Ref Target - Figure 1-3

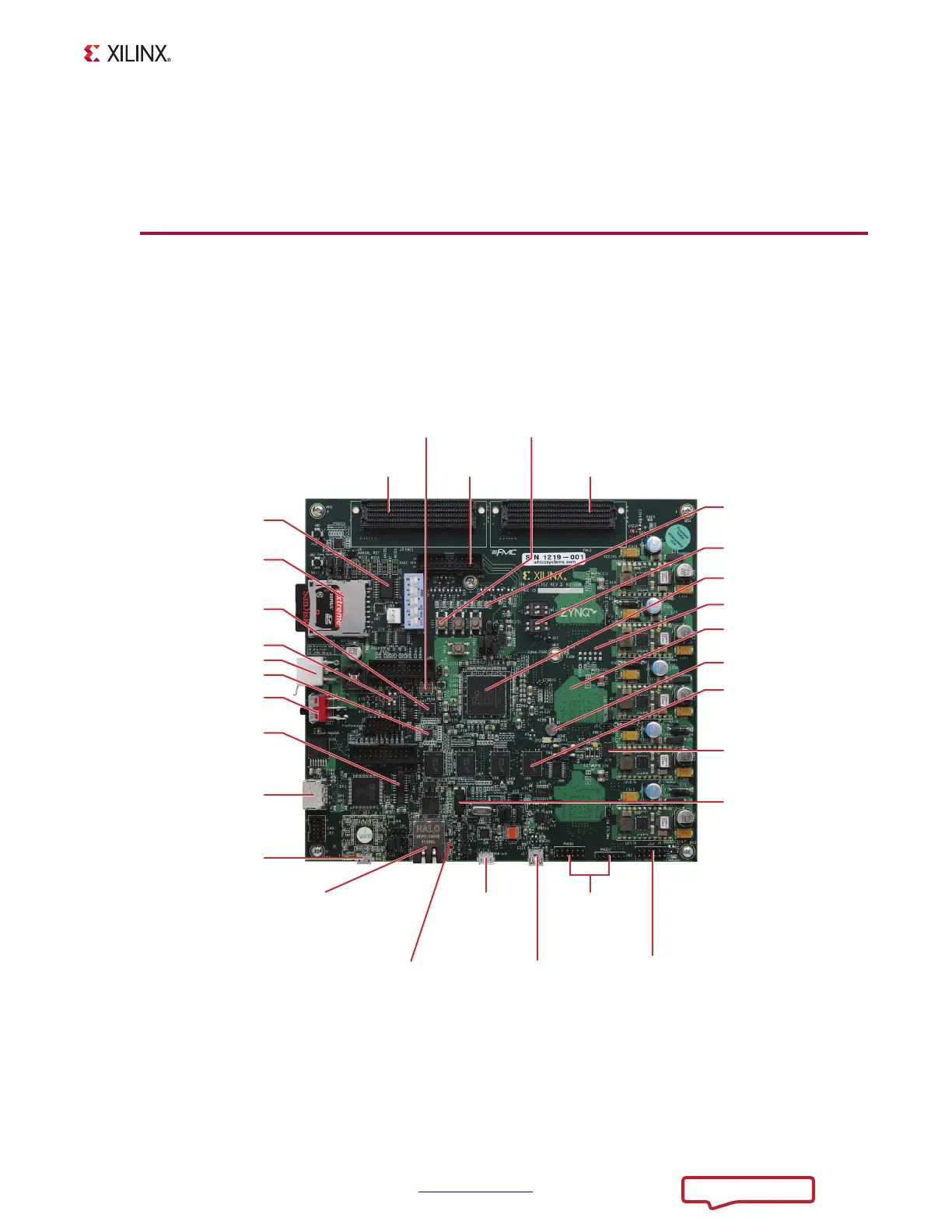

Figure 1-3: Feature Callout for the ZC702 Board
FMC1 LPC
Connector
Xilinx XADC
Header
UG926_c1_03_111913
FMC2 LPC
Connector
8 User LEDs
User 2-Pole DIP Switch
Zynq-7000 AP SoC
Power Management System
(Bottom and Top of Board)
FPGA PROG Pushbutton
I2C Real-time Clock (RTC)
DDR3 Component
Memory (1 GB)
RGMII Ethernet
PHY Oscillator,
25,000 MHz
Quad SPI Flash Memory (1 Gb)
SD Card Interface Connector
Configuration Mode Select Switch
System Clock, 200 MHz,
2.5V LVDS
I2C Bus Switch
Power On/Off Slide Switch
CAN Bus Transceiver
HDMI Controller,
HDMI Video Connector
USB JTAG
Module with Integrated
USB Micro-B Connector
I2C Programmable User
Clock 3.3V LVDS
User Pushbuttons
Active High
Ethernet Status
LEDs
USB-to-UART Bridge,
USB Mini-B Connector
2x6 Male Header
Pins I/O Driven from
I2C Expander U80
USB 2.0 ULPI
Transceiver,
USB Micro-B
Connector
10/100/1000 MHz
Ethernet PHY,
RJ45 with Magnetics
2x6 and 1x6
PMOD I/O Header
12V Power Connector
PMBus Connector
(Bottom of board)
Send Feedback
