 Servo motor

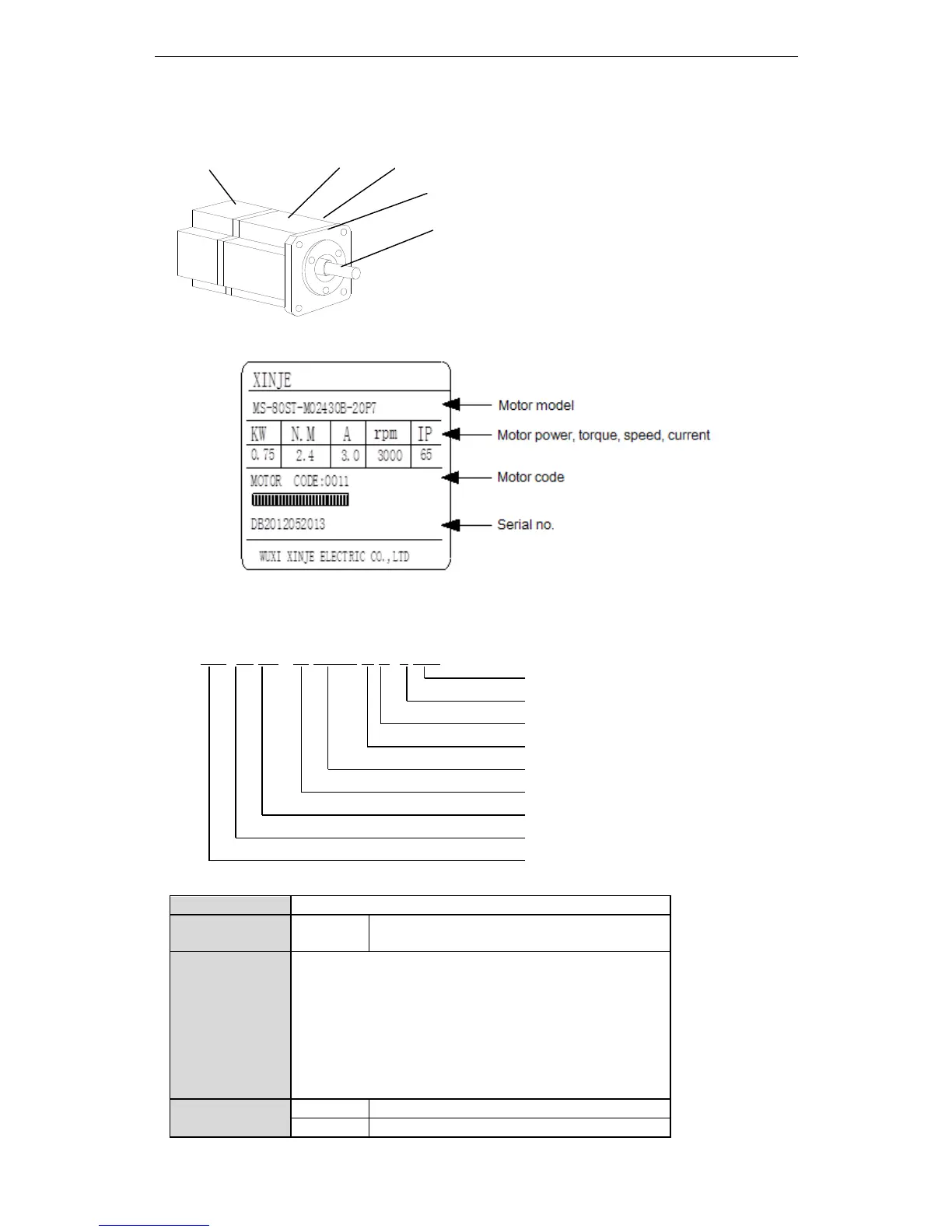

(1) Appearance and nameplate
Motor label
(2) Naming rule
MS -80 ST - M 02430 A Z- 2 0P7
Capacity
Rated Voltage
Power-loss brake
Shaft Specifications
Performance Specifications
Feedback Component
Sinewave-drive Motors
Base Size
Motor Series Name
Base number
60, 80, 90, 110, 130, 180
Feedback
component no.
M
Optical pulse encoder
Performance
parameter no.
First 3 bits mean rated torque, last 2 bits mean rated speed
Such as: 00630: rated torque 0.6N.m, rated speed 3000rpm
06025: rated torque 6.0N.m, rated speed 2500rpm
19015: rated torque 19.0N.m, rated speed 1500rpm
Shaft spec
A
No bond
B
With bond
Encoder part
Frame
Flange
Output (transmission) shaft
Motor label
