Xinje DS3 Series Manual

45

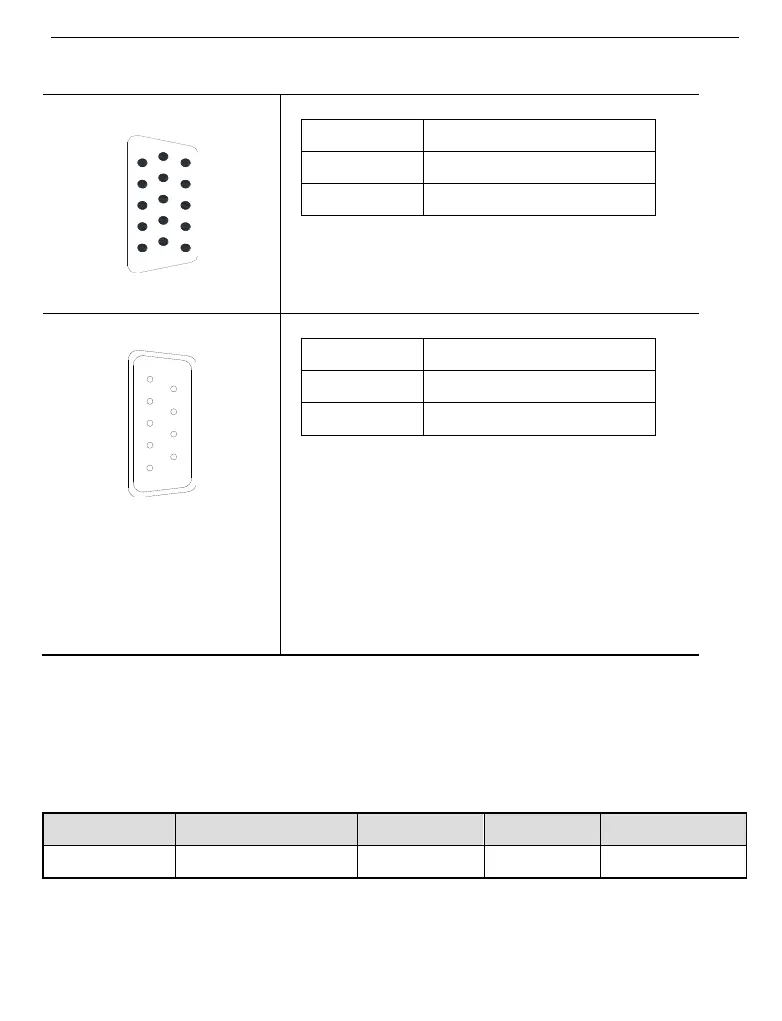

 RS-485 port
DS3 series
1
5
6
10
11
15
CN1: terminals at drive side
Pin no.
Name
CN1-14
A
CN1-15
B
DS3E series
1
5
9
6
CN1: terminals at drive side
Note: the servo motor bus function needs to be
equipped with the bus module, which is inserted into
the driver CN1 port for the purpose of extending the
bus function. Please note that the transfer module
should not be hot-pluggable. It is recommended to use
the profibus standard cable to achieve the best
communication reliability.
Pin no.
Name
CN1-2
A
CN1-3
B
Communication parameters:
RS485 default communication parameters: baud rate 19200bps, data bit 8, stop bit 1, even
parity, Modbus station no.1.
The value can be set in P7-00/P7-01.
RS485 communication port Modbus station no. can be set freely
Parameter
Function
Default value
Range
Effective time
P7-00
Modbus station no.
1
0～255
Servo OFF
