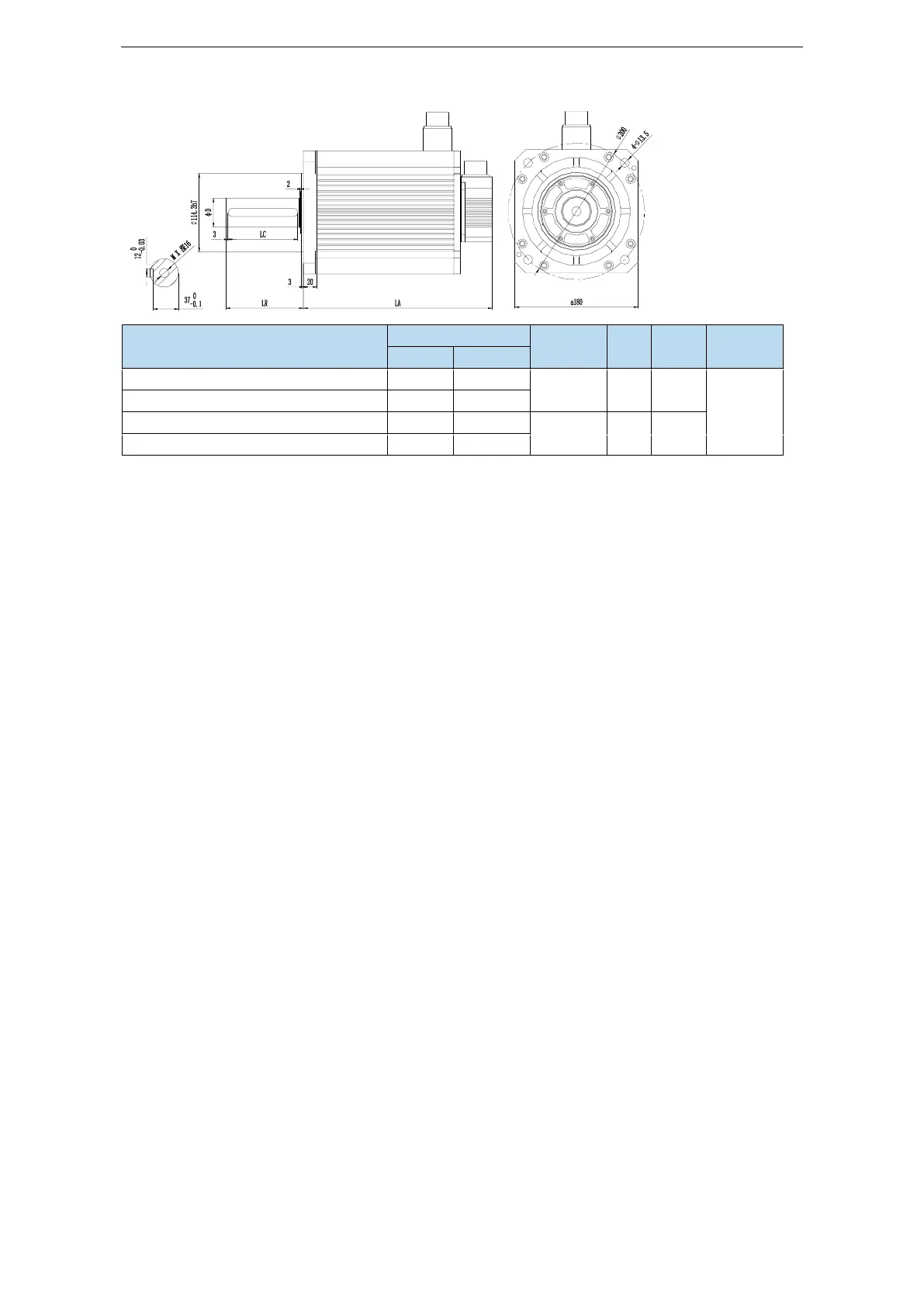

180 series motor installation dimensions Unit: mm
Motor model
LA±1
LC±0.5
X
φD
Inertia
level
Normal
With brake
MS5G-180ST-TL19015□□-42P9-S01
221
303
79
12
35
Medium
inertia
MS5G-180ST-TL28015□□-44P4-S01
247
329
MS5G-180ST-TL35015□□-45P5-S01
277
359
113
16
42
MS5G-180ST-TL48015□□-47P5-S01
318
400
