XO FLEX – Installation instructions Installation
18
Place the rubber unit base gasket on the floor over the long rods, as shown in Figure 14 and Figure
15.
Lift the unit stand and place it carefully on top of the rubber gasket, and make sure that the four
bushings in the floor are placed precisely under the four adjustment nuts in the unit base.

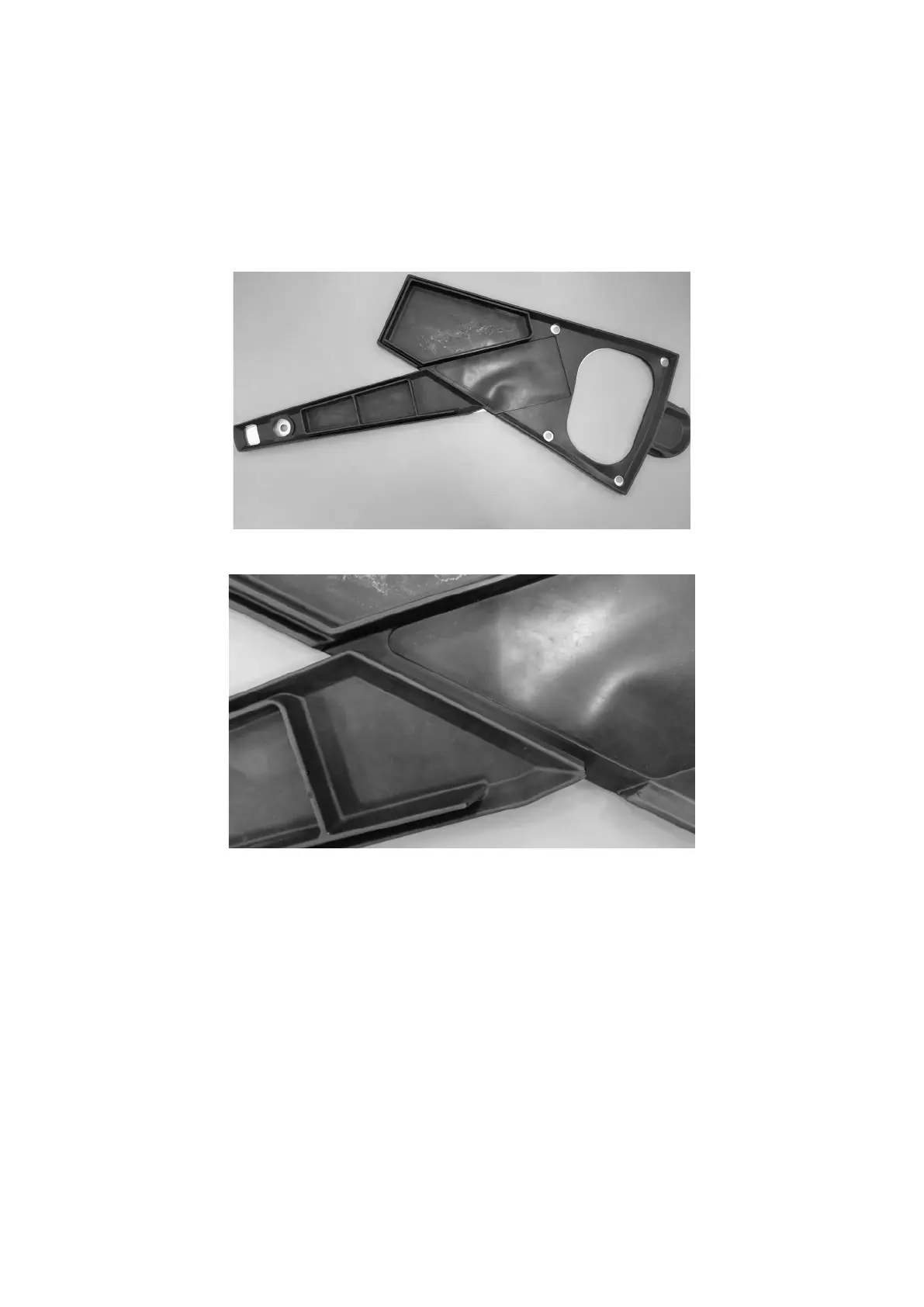

Figure 14 – Positioning of the rubber gasket
Figure 15 – Positioning of the two parts
When lifting the unit stand, use the carrying handles – see Figure 16.
