XO FLEX – Installation instructions Installation
19

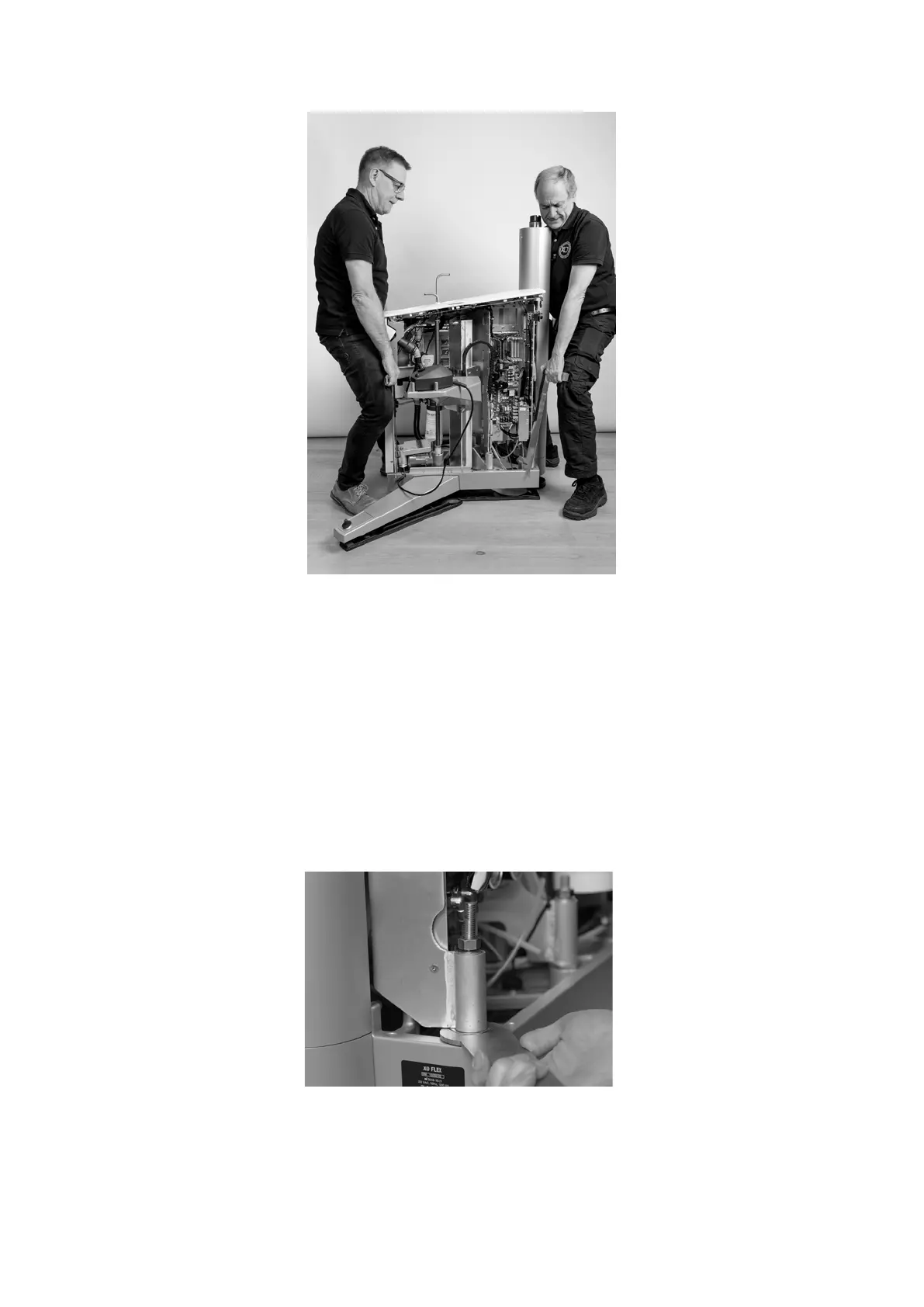

Figure 16 – Lifting the unit stand
Adjust the rubber gasket for accurate positioning under the unit base and the supporting leg.
Place an 8mm washer – (10) in Figure 11 – and an M8 screw – (9) in Figure 11 – loosely into the
supporting leg.
Insert the four long rods – (5) in Figure 11 – through the four holes of the unit base into the
bushings in the floor and tighten.
Place four Ø12 washers – (12) in Figure 11 – and M12 nuts – (11) in Figure 11 – loosely on the
studs. See Figure 17 and Figure 18.
Figure 17 – Adjusting the unit base
