14

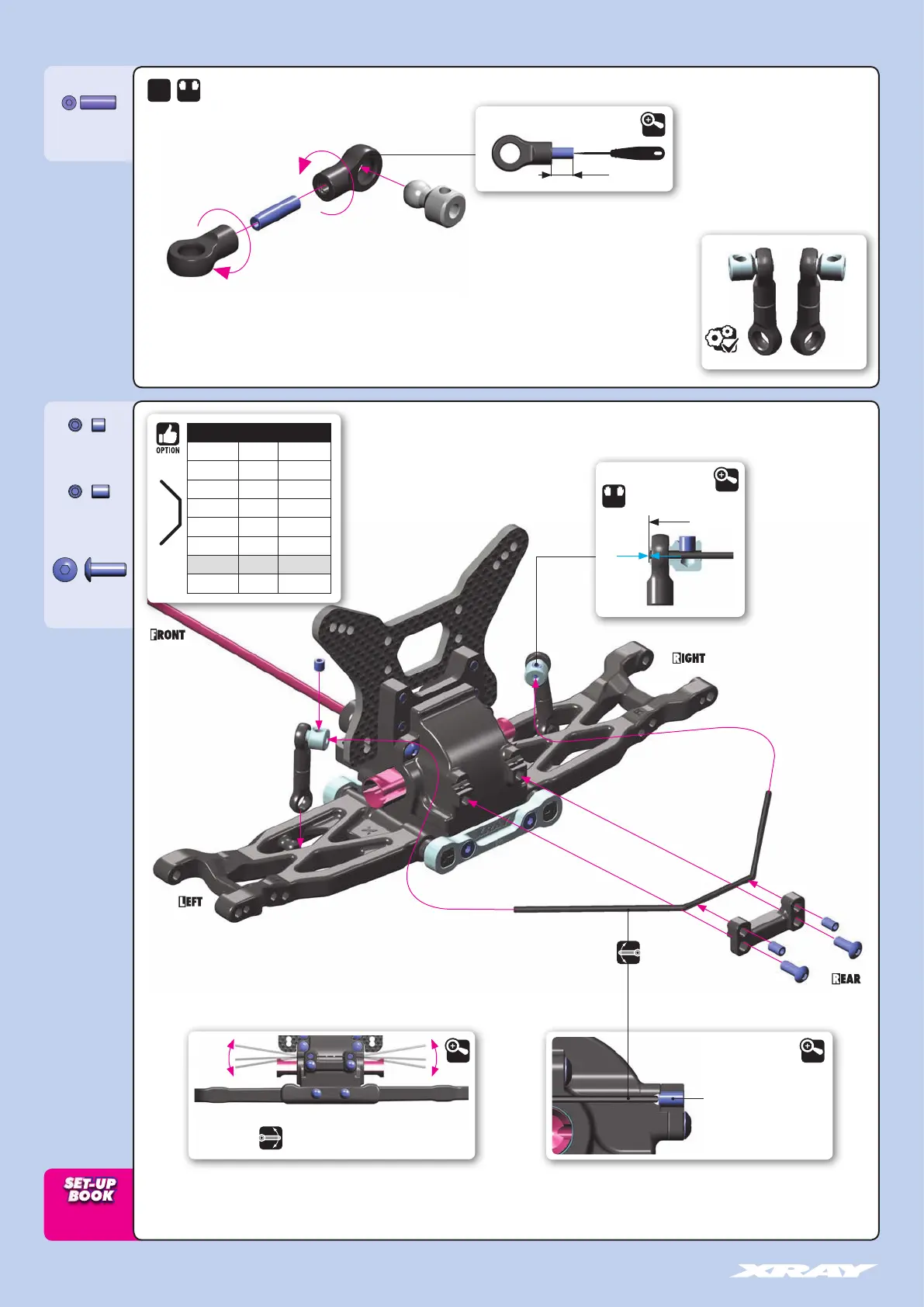

3. REAR SUSPENSION
ANTI-ROLL BAR
➊
➋
➌
3x4mm
3x8mm
3x3mm
L=R
2x
1.5mm
4mm
L=R
0mm
STEP DETAIL
➌
Step check for free movement
➊
Loosen the 3x4 setscrew if
the anti-roll bar does not
turn freely
Step
➊
901308
SB M3x8
901303
SB M3x3
901304
SB M3x4
902308
SH M3x8
DETAIL
DETAIL
DETAILDETAIL
ANTI-ROLL BARS
#362470 1.0mm
OPTION
#362471 1.1mm
OPTION
#362472 1.2mm
OPTION
#362473 1.3mm
OPTION
#362474 1.4mm
OPTION
#362476 1.6mm
OPTION
#362478 1.8mm
INCLUDED
#362480 2.0mm
OPTION
