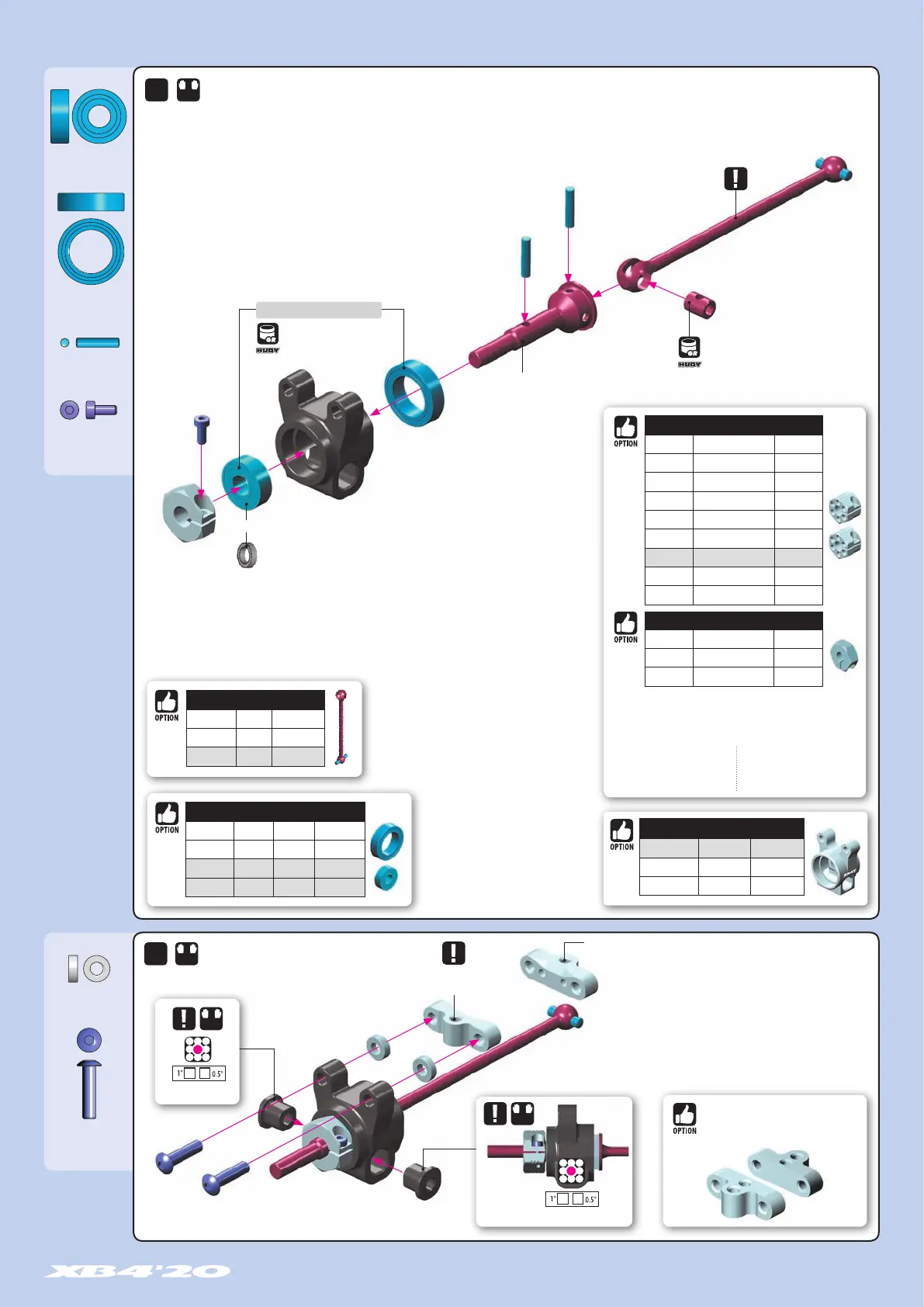

4. REAR TRANSMISSION
INITIAL SETTING
ALTERNATIVE ORIENTATION
L=R
INITIAL SETTING
L=R
INITIAL SETTING
902312
SH M3x12
NOTE ORIENTATION
2x
2x
L=R
L=R
LONG AXLE
➊
➍
➎
➏
➐
➑
➋
➌
940513
BB 5x12x4
902205
SH M2x5
980210
P 2x10
10x15x4mm
5x12x4mm
DRIVE SHAFT (75mm)
#106210 HUDY GRAPHITE GREASE
#106213 HUDY JOINT GREASE - OPTION
REAR UPRIGHTS
#323354-H HARD INCLUDED
#323354-G GRAPHITE OPTION
#323355 ALU OPTION
941014
BB 10x15x4
Use HUDY Ball-Bearing Grease
#106220 - STANDARD
#106221 - BLUE
#106222 - RED
XRAY BALL-BEARING
#940512 5x12x4 OIL OPTION
#941015 10x15x4 OIL OPTION
#940513 5x12x4 GREASE INCLUDED
#941014 10x15x4 GREASE INCLUDED
Bearing with BLACK
rubber covers
#323381
ALU REAR HUB PLATE FOR MULTI
ADJUSTABLE UPRIGHT - SWISS 7075 T6
303123
SHIM 3x6x2
3x6x2mm
OPTIONAL HEX HUB EFFECTS
Different offset hex hubs are used to increase or
decrease the track-width.
LESS OFFSET
Rear - more traction
Front - more steering
MORE OFFSET
Rear - less traction
Front - less steering
WHEEL HUBS 12MM
#365360 +4.5mm - (6 slots) OPTION
#365359 +3.75mm (5 slots) OPTION
#365358 +3.0mm (4 slots) OPTION
#365357 +2.25mm (3 slots) OPTION
#365356 +1.5mm (2 slots) OPTION
#365355 +0.75mm (1 slot) OPTION
#365353 0mm (0 slots) INCLUDED
#365354 -0.75mm (Lightw.) OPTION
#365361 -1.25mm (Lightw.) OPTION
WHEEL HUBS 14MM
#365352 +0.75mm OPTION
#365350 0mm OPTION
#365351 -0.75mm OPTION
DRIVE SHAFT
#325323 71mm OPTION
#325326 73mm OPTION
#325324 75mm INCLUDED
