Xray XB4 User Manual

20
CAMBER
ROLL CENTER
WHEELBASE

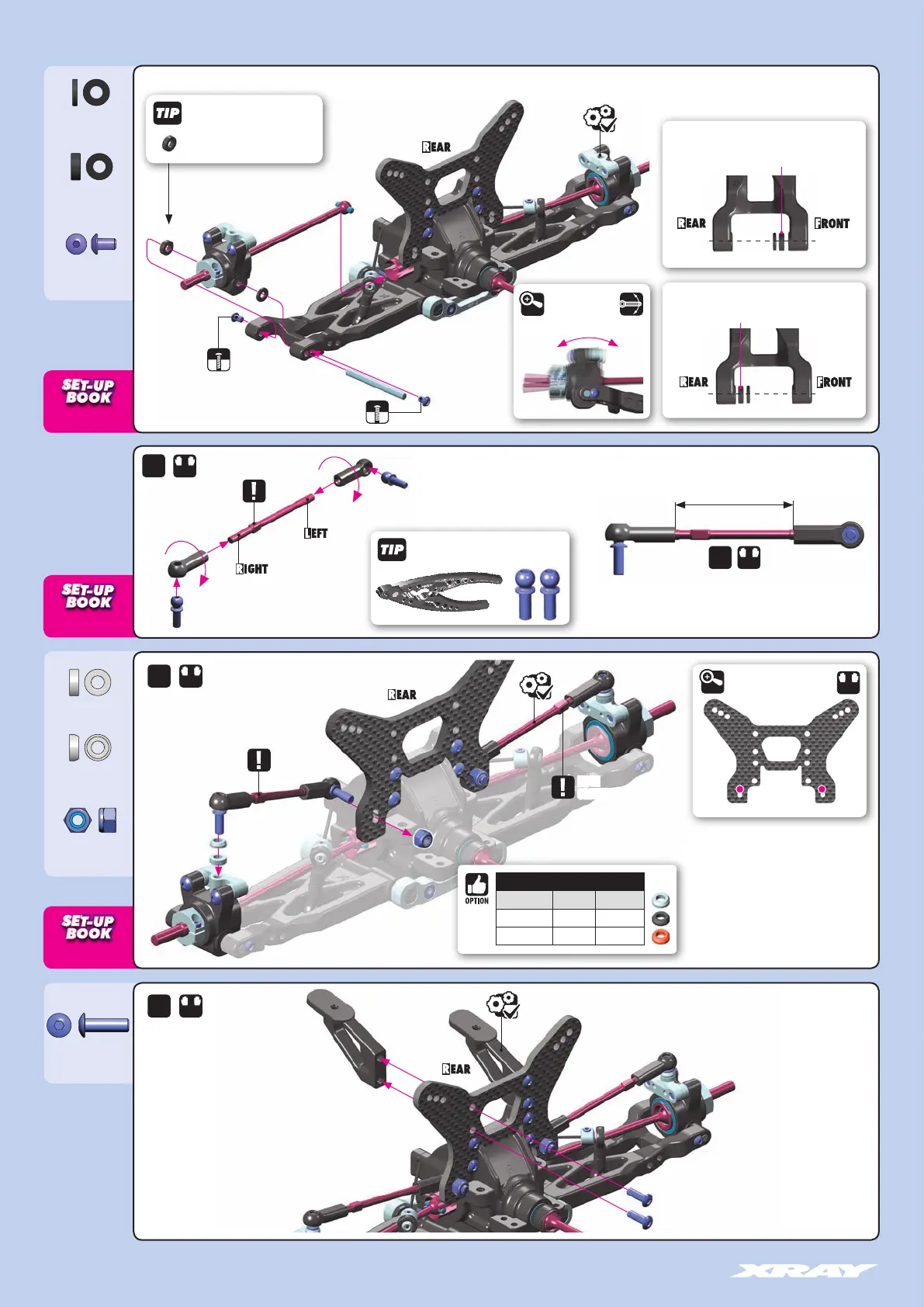

4. REAR TRANSMISSION
902254
SH M2.5x4
Ensure that the rear upright
moves freely. If it does not move
freely, use sandpaper to thin both
wheelbase adjustment shims.
2mm
1mm
306219
SHIM 3x6x2
306219
SHIM 3x6x1
TIGHTEN
GENTLY
TIGHTEN GENTLY
Adjustment Shim BEHIND HUB moves hub forward.
SHORTER WHEELBASE
ARM
Check for free
movement
DETAIL
Adjustment Shim IN FRONT OF HUB moves hub
rearward.
LONGER WHEELBASE
ARM
37mm
2x
L=R
8mm THREAD
8mm THREAD
THREAD
THREAD
Install the pivot balls with Professional
Multi Tool (HUDY #183011)
362280
CON. SHIM 3x6x2
L=R
DETAIL
INITIAL SETTING
2mm
ALU CONICAL SHIM
#362280 SILVER INCLUDED
#362280-K BLACK OPTION
#362280-O ORANGE OPTION
2x
L=R
NOTE ORIENTATION
2x
2x
L=R
L=R
NOTE
ORIENTATION
NOTE
ORIENTATION
960030
N M3
902310
SH M3x10
303123
SHIM 3x6x2
CONICAL SHIM 2mm

Xray XB4 Specifications

General

Drive	4WD
Suspension	Independent
Type	Buggy
Battery Type	LiPo
Differential	Gear
Motor Type	Brushless
Class	Off-Road
Radio System	2.4 GHz
Scale	1:10
