25

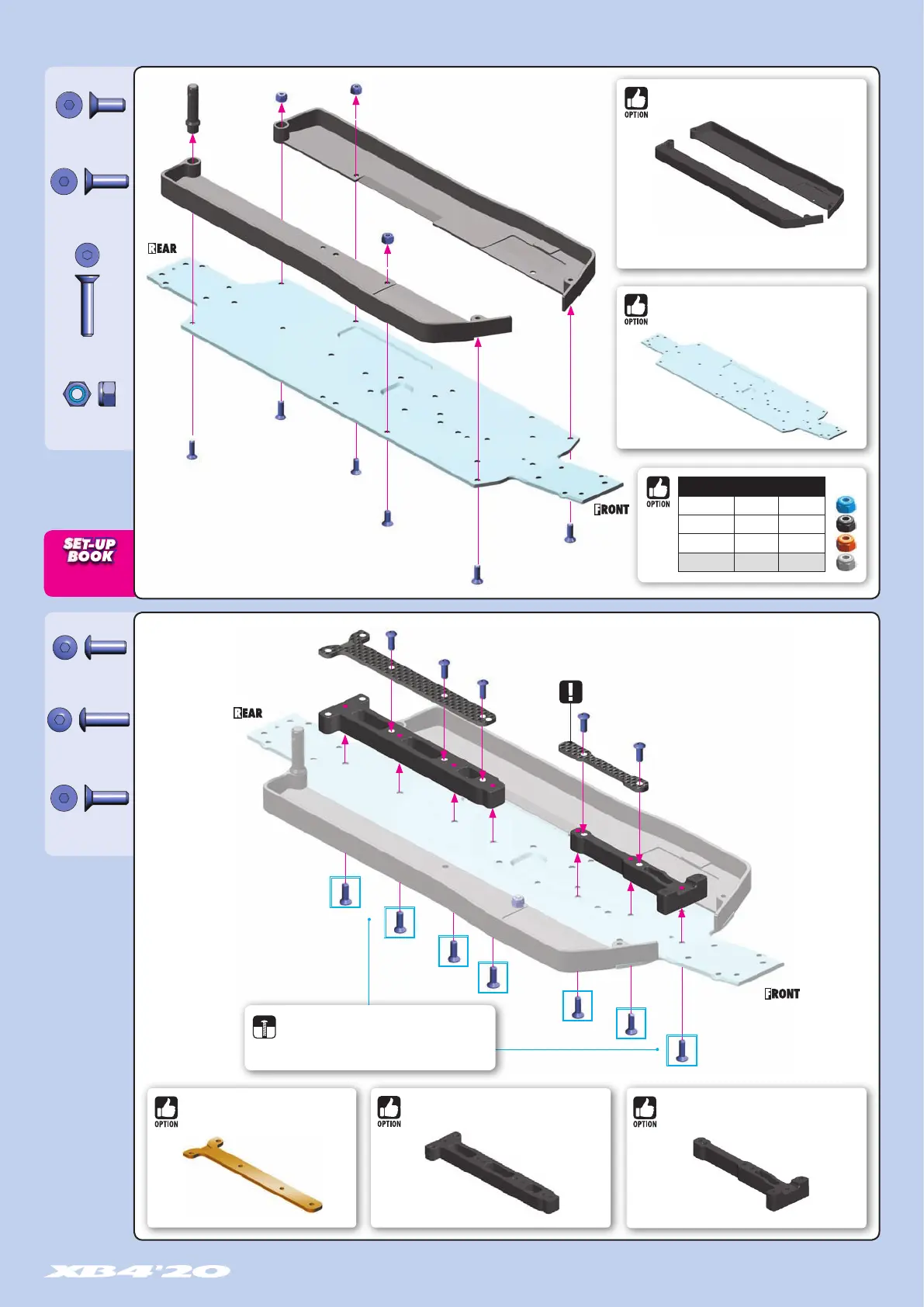

CHASSIS FLEX
4. FRONT & REAR ASSEMBLY
#361108
ALU CHASSIS - SWISS 7075 T6 (2.5MM)
4. FRONT & REAR ASSEMBLY
903308
SFH M3x8
903310
SFH M3x10
903310
SFH M3x10
903314
SFH M3x14
3x14mm
3x8mm
3x8mm
3x8mm
3x10mm
3x10mm
3x10mm
3x10mm
3x10mm
960030
N M3
#361269-M
COMPOSITE CHASSIS SIDE GUARDS L+R (MEDIUM)
The medium side guards increase chassis flex and are
recommended for low-traction tracks.
Do not fully tighten the screws during assembly.
Fully tighten the screws only after both front and rear
suspension assemblies are mounted to the chassis.
NOTE
ORIENTATION
902310
SH M3x10
902308
SH M3x8
#361295
COMPOSITE CHASSIS BRACE REAR - MEDIUM
#361294
COMPOSITE CHASSIS BRACE FRONT - MEDIUM
#361179
BRASS CHASSIS BRACE REAR (40g)
ALU NUTS M3
#296530-B BLUE OPTION
#296530-K BLACK OPTION
#296530-O ORANGE OPTION
#960031 SILVER INCLUDED
