Page #26 background imageLoading...
Page #26 background image
26
902312
SH M3x12
903316
SFH M3x16
903316
SFH M3x16
902316
SH M3x16
903310
SFH M3x10
903310
SFH M3x10

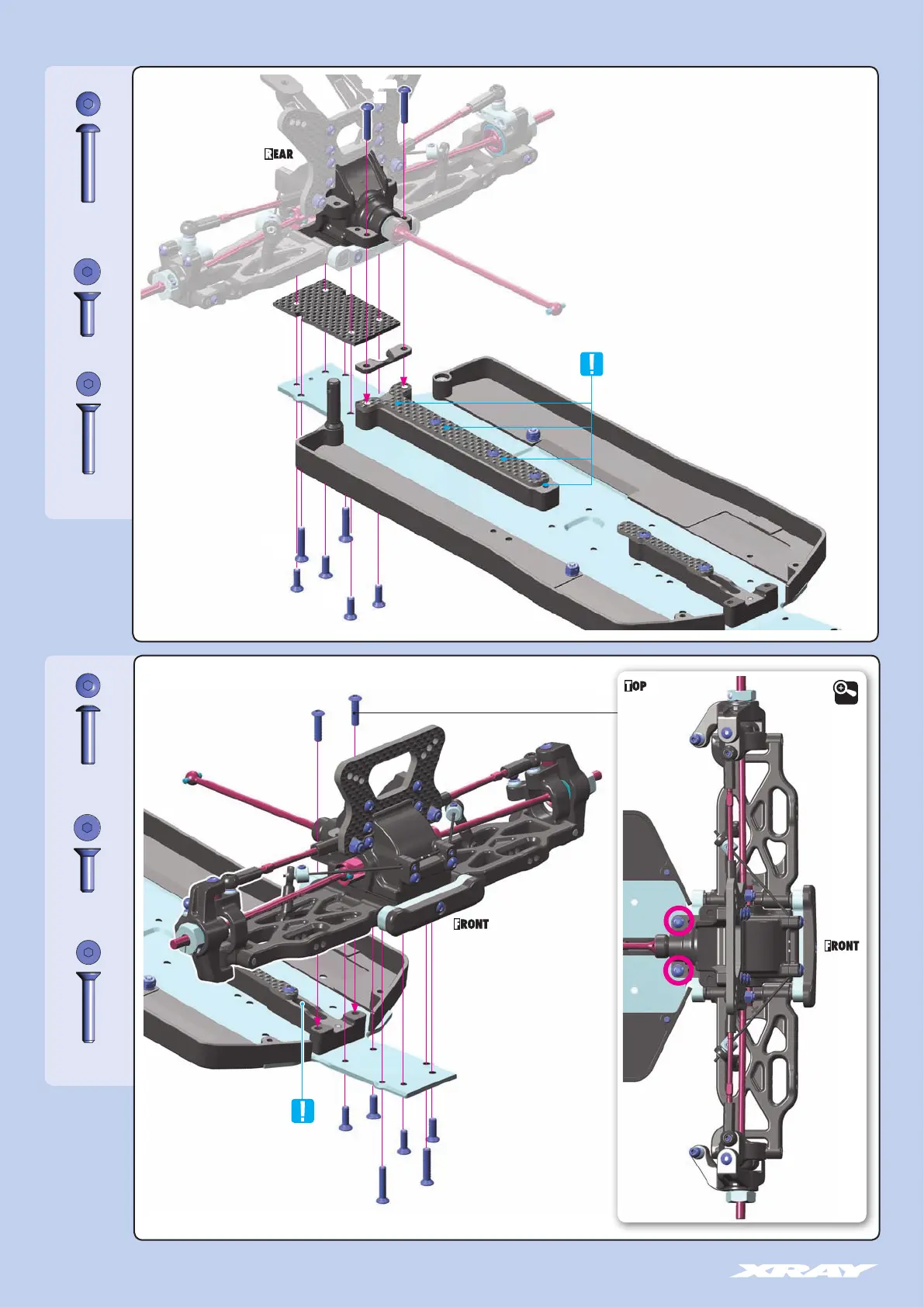

4. FRONT & REAR ASSEMBLY
3x16mm
SH
3x16mm
SFH
3x10mm
SFH
3x16mm
3x10mm
After you mount the rear suspension assembly
to the chassis, fully tighten all 4 screws that were
previously left untightened (page 25, step 2).
3x10mm
3x12mm
DETAIL
After you mount the front suspension
assembly to the chassis, fully tighten
all 3 screws that were previously left
untightened (page 25, step 2).

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Xray XB4 and is the answer not in the manual?

Xray XB4 Specifications

General IconGeneral
Drive4WD
SuspensionIndependent
TypeBuggy
Battery TypeLiPo
DifferentialGear
Motor TypeBrushless
ClassOff-Road
Radio System2.4 GHz
Scale1:10
