REAR SUSPENSION
909395
SS 3.5x45
909372
SS 3.5x22
901408
SB M4x8
Middle position = 0.5 mm or 0.5° from center
Outer position = 1mm or 1° from center

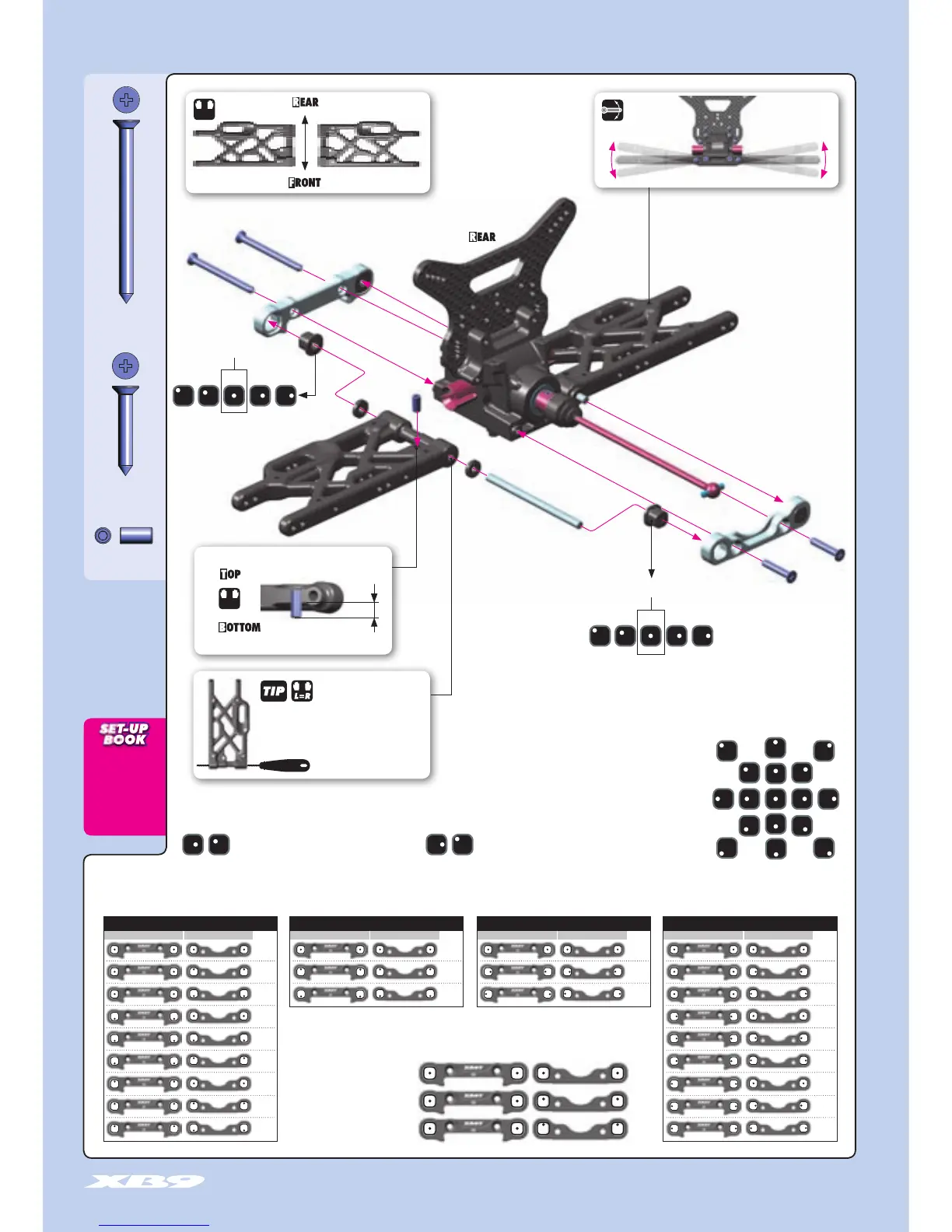

The new XRAY rear alu lower suspension holders provide even greater range of adjustment for the rear suspension. Using different combinations of eccentric bushings, fine adjustment of rear anti-squat, rear
toe-in, rear roll center, and rear track-width can be obtained. For more information about the influence of rear anti-squat, rear toe-in, rear roll center and rear track width on car handling, please refer to HUDY
Off-Road Set-up Book (#209099).
The tables describe the amounts of rear anti-squat, rear toe-in, rear track-width change depending
on the combinations of eccentric bushings used with 0 and 1mm, 1° off set. The 0.5mm, 0.5° represent
the half change.
Example:
0(RR) - 0 (RF) = 3°
0(RR) - 0.5 (RF) = 3.5°
0(RR) - 1 (RF) = 4°
=3
=4
=2
=4
=3
=5
=2
=3
=1
= 3
= 3.5
= 4
=0
mm
=1mm
=-1mm
=308
=306
=310
=3
=4
=2
=2
=3
=1
=4
=5
=3
L=R
4mm
DOWNSTOP SETTING
Check for free
movement
REAR ARM
L=R
(HUDY #107634)
ARM REAMER
If the suspension arm does not move freely use a
HUDY Arm Reamer to size the holes of the arms
➊
➊
➋
➌
➌
➍
➍
➎
2mm
4x8
2mm
RR
RF
Composite eccentric bushings
Initial position
Composite eccentric bushings
Initial position
1
1
1
1
0.5
0.5
0.5
0.5
0
0
All possible mounting
alternatives of eccentric bushings
To Next Page
