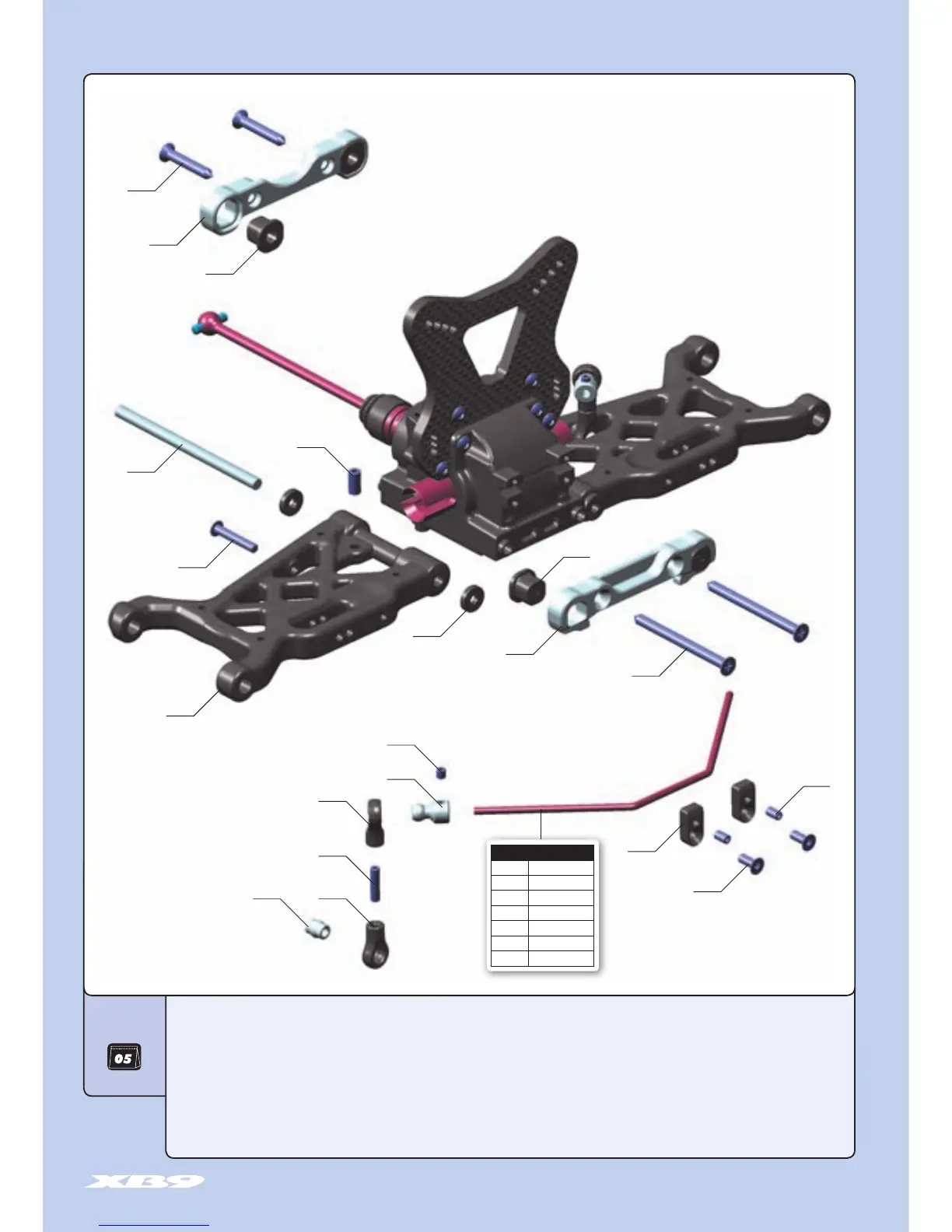

5. FRONT SUSPENSION
33 3450 ANTI-ROLL BAR BALL JOINT 5.8 MM (2)
35 2004 DIFF BULKHEAD BLOCK SET FRONT/REAR
35 2115 XB9 COMPOSITE FRONT LOWER SUSPENSION ARM
35 2304 ALU FRONT LOWER SUSP. HOLDERS SET - SQUARE ADJ. ROLL-CENTER
35 2323 ALU FRONT LOWER SUSP. HOLDER - FRONT - SQUARE ADJ. ROLL-CENTER
35 2324 ALU FRONT LOWER SUSP. HOLDER - REAR - SQUARE ADJ. ROLL-CENTER
35 2314 COMPOSITE SQUARE ADJ. ROLL-CENTER BUSHINGS (2)
35 2460 PIVOT BALL 5.8 (10)
35 2470 BALL JOINT 5.8 (8)
35 2484 FRONT ANTI-ROLL BAR 2.4MM
35 3371 SET OF COMPOSITE LOWER ARM SHIMS
35 7212 LOWER INNER PIVOT PIN F+R (2)
90 1303 HEX SCREW SB M3x3 (10)
90 1305 HEX SCREW SB M3x5 (10)
90 1312 HEX SCREW SB M3x12 (10)
90 1408 HEX SCREW SB M4x8 (10)
90 2318 HEX SCREW SH M3x18 (10)
90 3308 HEX SCREW SFH M3x8 (10))
90 9372 SCREW PHILLIPS SS 3.5x22 (10)
90 9395 SCREW PHILLIPS SS 3.5x45 (10)
BAG

 

  
  
  
  
  
  
909372
901408
902318
352115
909395
901303
901312
901305
903308
352324
352314
357212
352314
353371
333450
352470
352470352460
352004
352323
