Xray XB9 User Manual

36
SHOCK ABSORBERS
902319
SH M3x18
LEFT thread
960030
N M3
902318
SH M3x18

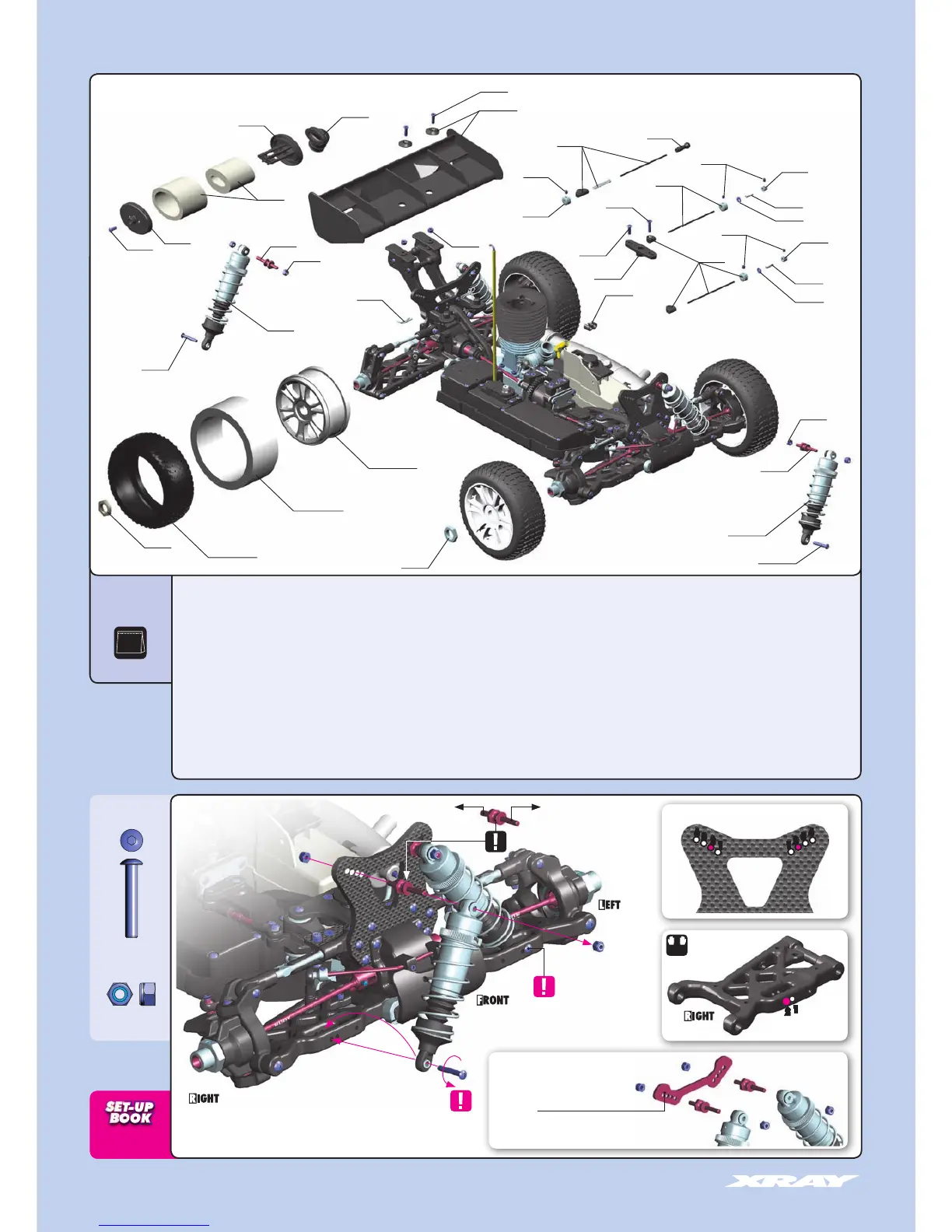

12. FINAL ASSEMBLY
12
BAG
35 3511-K XB9 REAR WING - BLACK
35 3511 XB9 REAR WING - WHITE (OPTION)
35 3511-Y XB9 REAR WING - YELLOW (OPTION)
35 5260 WHEEL NUT - HARD COATED (2)
35 6200 BRAKE/THROTTLE ARMS & SERVO ARMS - SET
35 6401 BRAKE/THROTTLE SYSTEM - SET
35 6510 CLOSED BALL JOINT 3.9 (4)
35 8047 STEEL SCREW SHOCK PIVOT BALL WITH HEX (2)
35 8104 XB9 FRONT SHOCK ABSORBERS + BOOTS COMPLETE SET (2)
35 8204 XB9 REAR SHOCK ABSORBERS + BOOTS COMPLETE SET (2)
35 8811 AIR FILTER ELBOW - LOW PROFILE
35 8821 AIR FILTER BODY & CAP - LOW PROFILE
35 8841 AIR FILTER FOAM & OIL - LOW PROFILE
35 8930 FUEL FILTER MOUNT & TUBING HOLDERS
35 8950 SILICONE TUBING 1M (2.4 x 5.5MM)
35 9400 BODY CLIP (10)
35 9707 XRAY XB9 BODY FOR 1/8 OFF ROAD BUGGY
35 9809 WHEELS STARBURST - YELLOW (4) (OPTION)
90 1303 HEX SCREW SB M3x3 (10)
90 2308 HEX SCREW SH M3x8 (10)
90 2310 HEX SCREW SH M3x10 (10)
90 2318 HEX SCREW SH M3x18 (10)
90 2319 HEX SCREW SH M3x18 - LEFT THREAD (10)
90 3312 HEX SCREW SFH M3x12 (10)
90 3314 HEX SCREW SFH M3x14 (10)
96 0030 NUT M3 (10)
96 1022 WASHER S 2.2 (10)
356401
356510
902310
356200
356401
961022
358950
356401
356401
353511-K
358821
902308
358811
358821
358841
902318
902319
358047
Tires
(not included)
358204
358047
355260
960030
960030
358104
358930
960030
903312
359400
3x18
FRONT SHOCKS (SHORT)
NOTE ORIENTATION
(SHORTER) (LONGER)
INITIAL POSITIONS
355260
Inserts
(not included)
359809
(not included)
901303
356401
903314
901303
901303
961022
358950
356401
On the front right arm use the SILVER M3x18
screw - this screw has LEFT THREAD
To extend the life-time of the front
shock tower, optional steel front
shock tower protector is available.
OPTIONAL
FRONT SHOCK TOWER STELL PROTECTOR
#352099
Use STANDARD
M3x18 screw
1
2
3
4
3
4
2
1
L=R
INITIAL POSITIONS
1
2
