Xray XB9 User Manual

8

STEP DETAIL

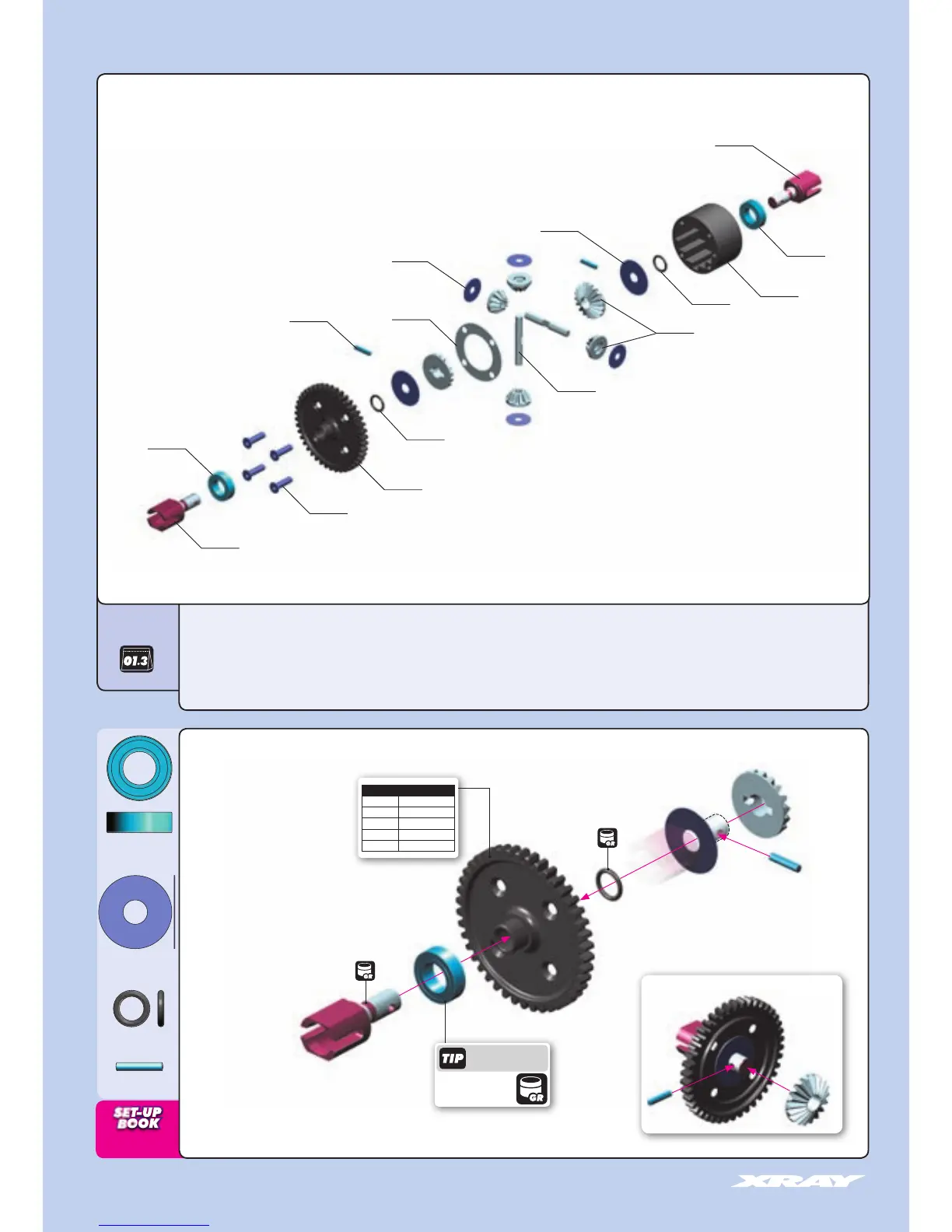

CENTER DIFFERENTIAL
BAG
➊
➋
➌
➍
➎
➎
➏
➏➎
355071
940816
903312
355050
971060
355030
971060
355020
940816
355090
964060
964030
980212
355080
355071
35 5012 XB9 CENTRAL DIFFERENTIAL - SET
35 5020 DIFFERENTIAL CASE
35 5030 STEEL DIFF BEVEL & SATELLITE GEARS (2+4)
35 5050 CENTER DIFF SPUR GEAR 46T
35 5071 CENTER DIFF OUTDRIVE ADAPTER - LIGHTWEIGHT - HUDY STEEL (2)
35 5080 DIFF PIN (2)
35 5090 DIFF GASKET (4)
90 3312 HEX SCREW SFH M3x12 (10)
94 0816 HIGH-SPEED BALL-BEARING 8x16x5 BLUE COVERED (2)
96 4030 WASHER S 3.5x12x0.2 (10)
96 4060 WASHER S 6x18x0.2 (10)
97 1060 SILICONE O-RING 6x1.5 (10)
98 0212 PIN 2x11.6 (10)


#106220 - Standard
#106221 - Extra
#106222 - Premium
940816
BB 8x16x5
971060
O 6x1.5
964060
S 6x18x0.2
980212
P 2x11.6
Graphite Grease
(HUDY #106210)
Graphite Grease
(HUDY #106210)

 
  
   
    
 
 

