960030
N M3
901303
SB M3x3
901303
SB M3x3
902310
SH M3x10
903314
SFH M3x14
961022
S 2.2
902319
SH M3x18
LEFT thread
902318
M3x18

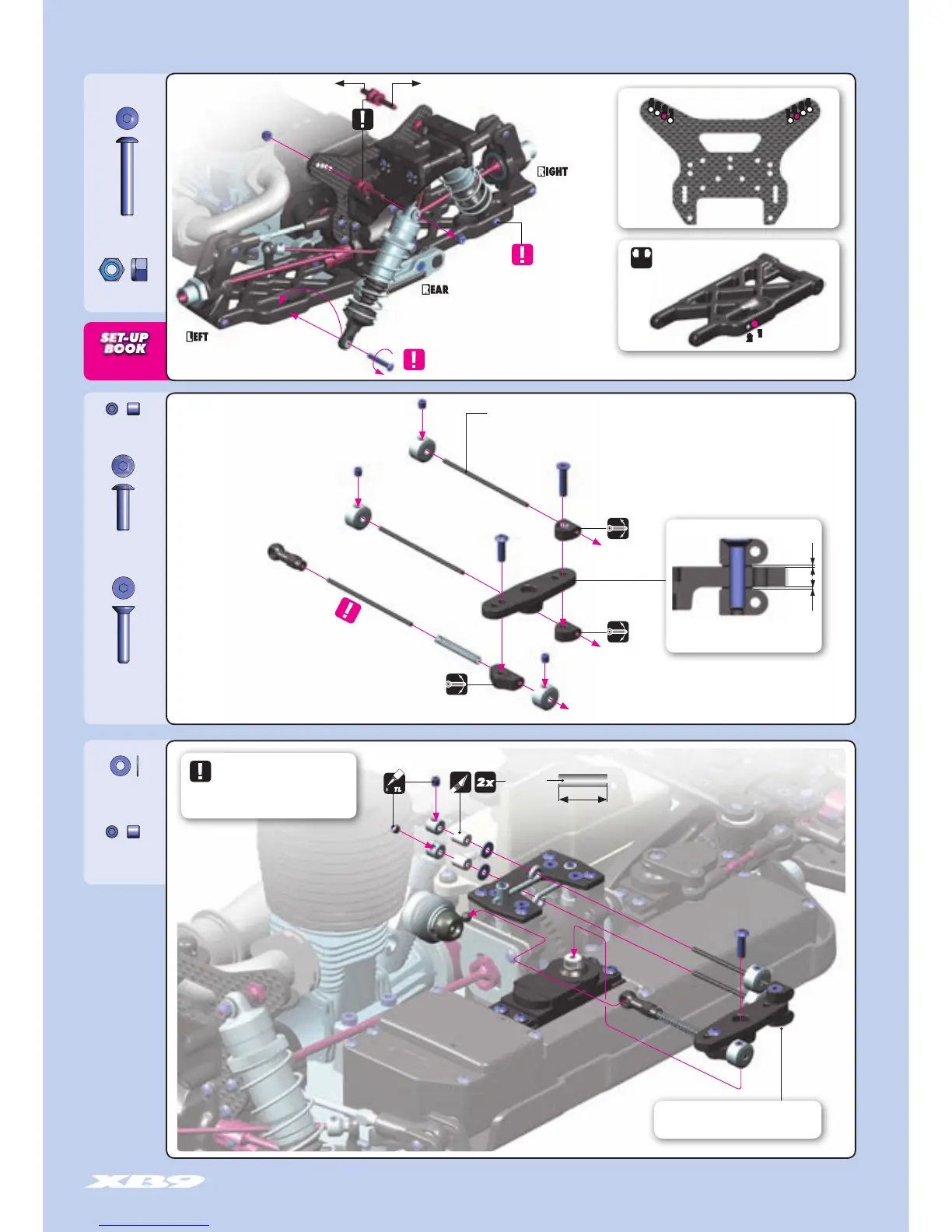

FINAL ASSEMBLY
3x18
REAR SHOCKS (LONG)
3x10
Brake rod
Throttle rod
Thread brake rods into plastic
pivots until flush with outer end
3x14
SILICONE
TUBING
10mm
Brake rod
Tighten screw until snug.
Pivots should move freely.
CUTAWAY VIEW
Servo screw (not included)
3x25
L=R
INITIAL POSITIONS
INITIAL POSITIONS
On the rear left arm use the SILVER M3x18
screw - this screw has LEFT THREAD
Use STANDARD
M3x18 screw
SHORT
Ensure that the servo is in neutral position
before attaching the servo horn.
Small gap
Small gap
Use servo horn to match your servo
- KO Propo - Futaba - Hitec
NOTE
ORIENTATION
(SHORTER) (LONGER)
To Next Page
