Xray XB9 User Manual

6


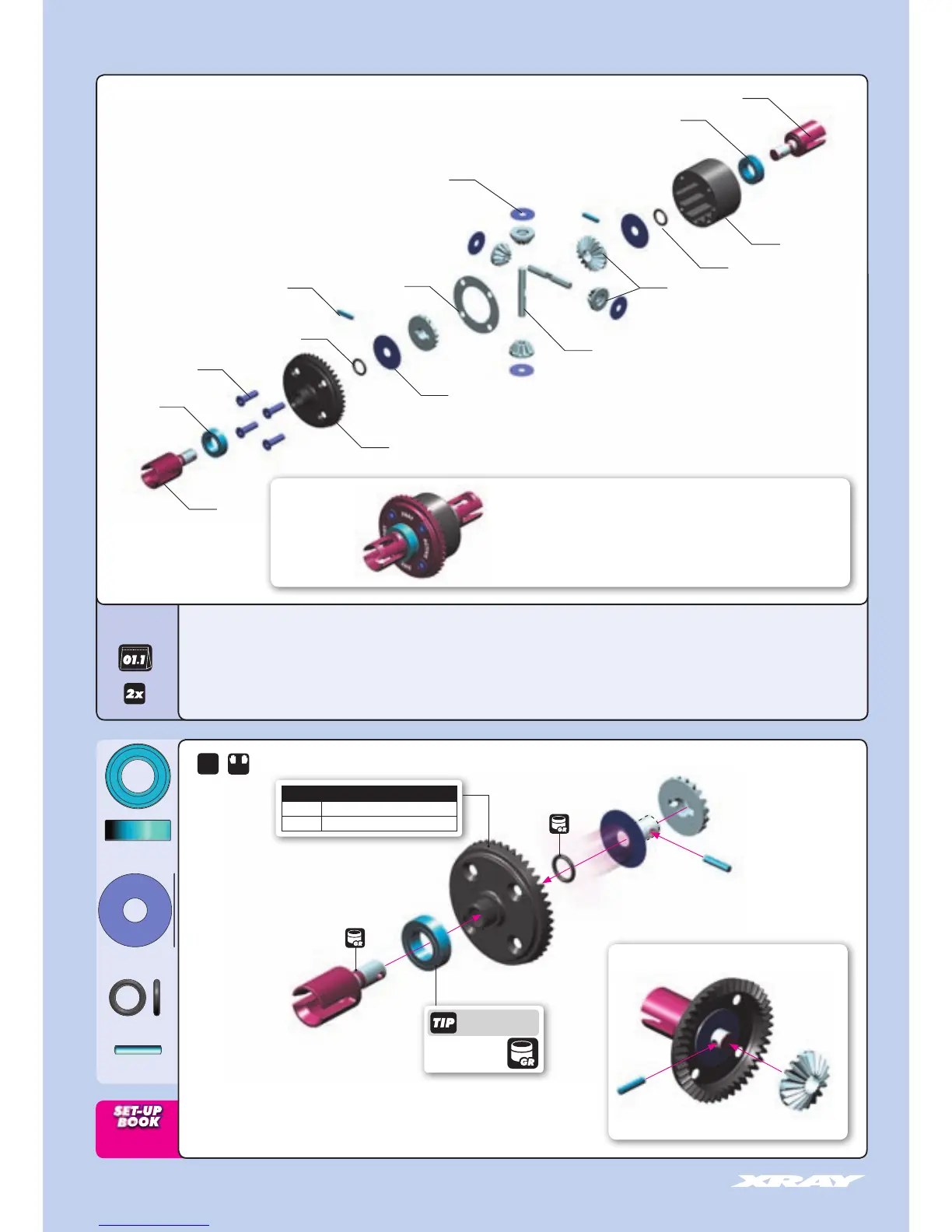

1. FRONT & REAR DIFFERENTIALS
2x
F=R
STEP DETAIL
➊
➋
➌
➍
➎
➎
➎➏
➏
35 5002 XB9 FRONT/REAR DIFFERENTIAL - SET
35 5020 DIFFERENTIAL CASE
35 5030 STEEL DIFF BEVEL & SATELLITE GEARS (2+4)
35 5040 FRONT/REAR DIFF LARGE BEVEL GEAR 40T - HUDY STEEL
35 5063 F/R DIFF OUTDRIVE ADAPTER - LIGHTW. - HUDY SPRING STEEL™ (2)
35 5080 DIFF PIN (2)
35 5090 DIFF GASKET (4)
90 3312 HEX SCREW SFH M3x12 (10)
94 0816 HIGH-SPEED BALL-BEARING 8x16x5 BLUE COVERED (2)
96 4030 WASHER S 3.5x12x0.2 (10)
96 4060 WASHER S 6x18x0.2 (10)
97 1060 SILICONE O-RING 6x1.5 (10)
98 0212 PIN 2x11.6 (10)
BAGS
940816
903312
355040
964060
355030
971060
355020
940816
355090
964030
980212
971060
355080
355063
355063


#106220 - Standard
#106221 - Extra
#106222 - Premium
940816
BB 8x16x5
964060
S 6x18x0.2
971060
O 6x1.5
980212
P 2x11.6
Graphite Grease
(HUDY #106210)
Graphite Grease
(HUDY #106210)





➏
OPTIONAL
ACTIVE FRONT DIFF
#355104
• High-performance adjustable front Active Differential for improved speed & handling
• Fully adjustable on- and off-power performance using different internal segments and gears
• Improves diff action and increases traction
• Easy and consistent steering
