Xterra FS400 User Manual

8
FS400 Elliptical
#147. Ø8.5 x Ø26 x
2.0T Flat Washer (2
pcs)
#151. 5/16” x UNC18 x
15 Button Head Socket
Bolt (2 pcs)
2

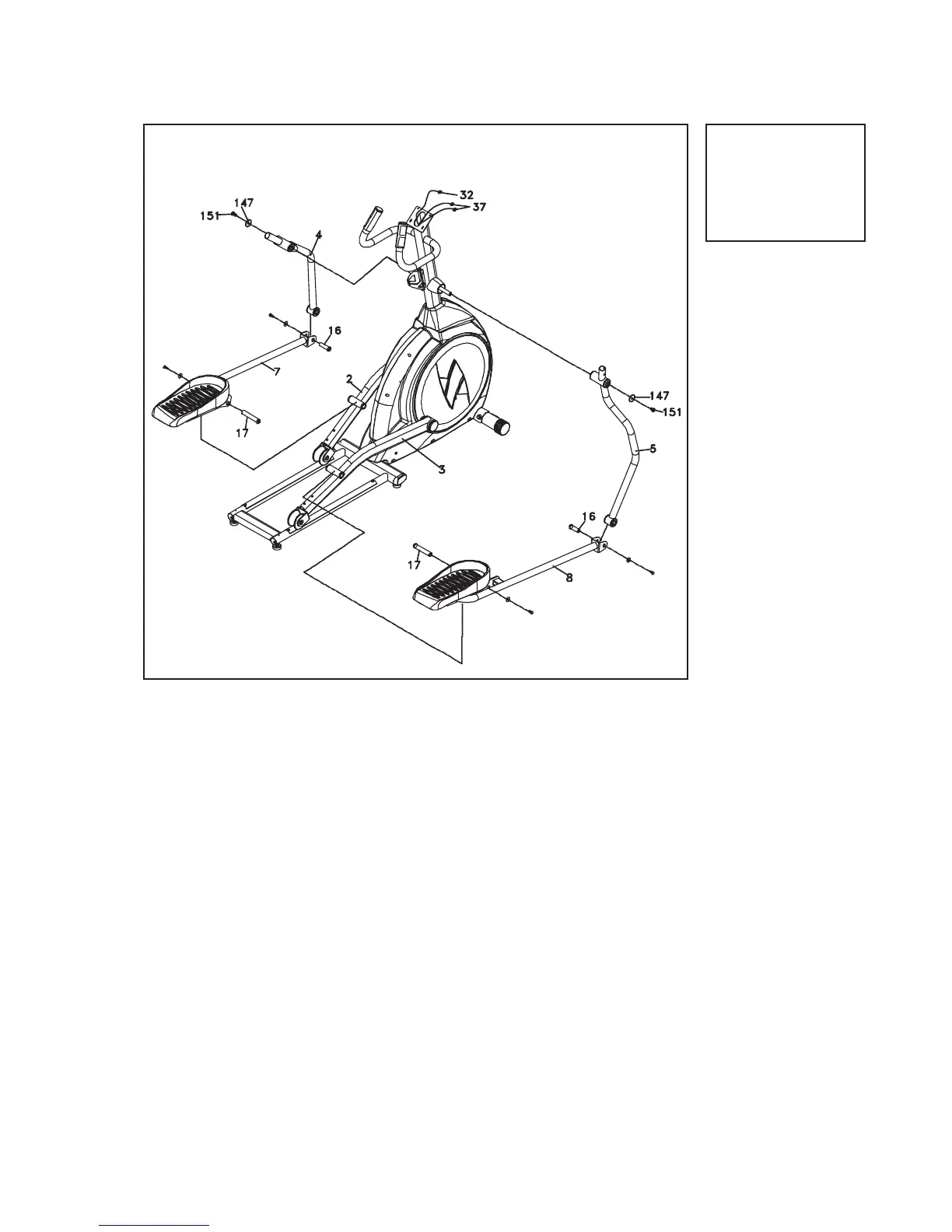

Hardware Step 2
1. Put Lower Handle Bars (L) and (R), (4) and (5), at each side of Console
Mast shaft and secure with two Button Head Socket Bolts (151) and two
Washers (147) by using Combination M5 Allen Wrench & Phillips Head
Screw Driver (108).
2. Release and take apart Pedal Axle (17) on left Pedal Arm (2) and install
left Connecting Arm (7) onto left Pedal Arm. Tighten the screw together
with the previously released Pedal Axle with 12/ 14mm wrench (111).
Repeat the same procedure again for the right Connecting Arm (8) and
Pedal Arm (3).
3. Release rod end shafts (16) which are on left and right connecting
arms(7.8). Connect the left and right connecting arm(7.8) with left and
right lower handle bar(4.5) and secure with rod end shafts (16) and the
screw by using 12/14mm_Wrench (111).
Lower Swing Arms
