Xterra FS400 - Upper Swing Arms Assembly; Installing Upper Swing Arms

FS400 Elliptical
9
#70. 5/16” x 15mm
Hex Head Bolt (6 pcs)
#102. Ø8 x Ø23 x 1.5T
Curved Washer (6 pcs)
3
Hardware Step 3

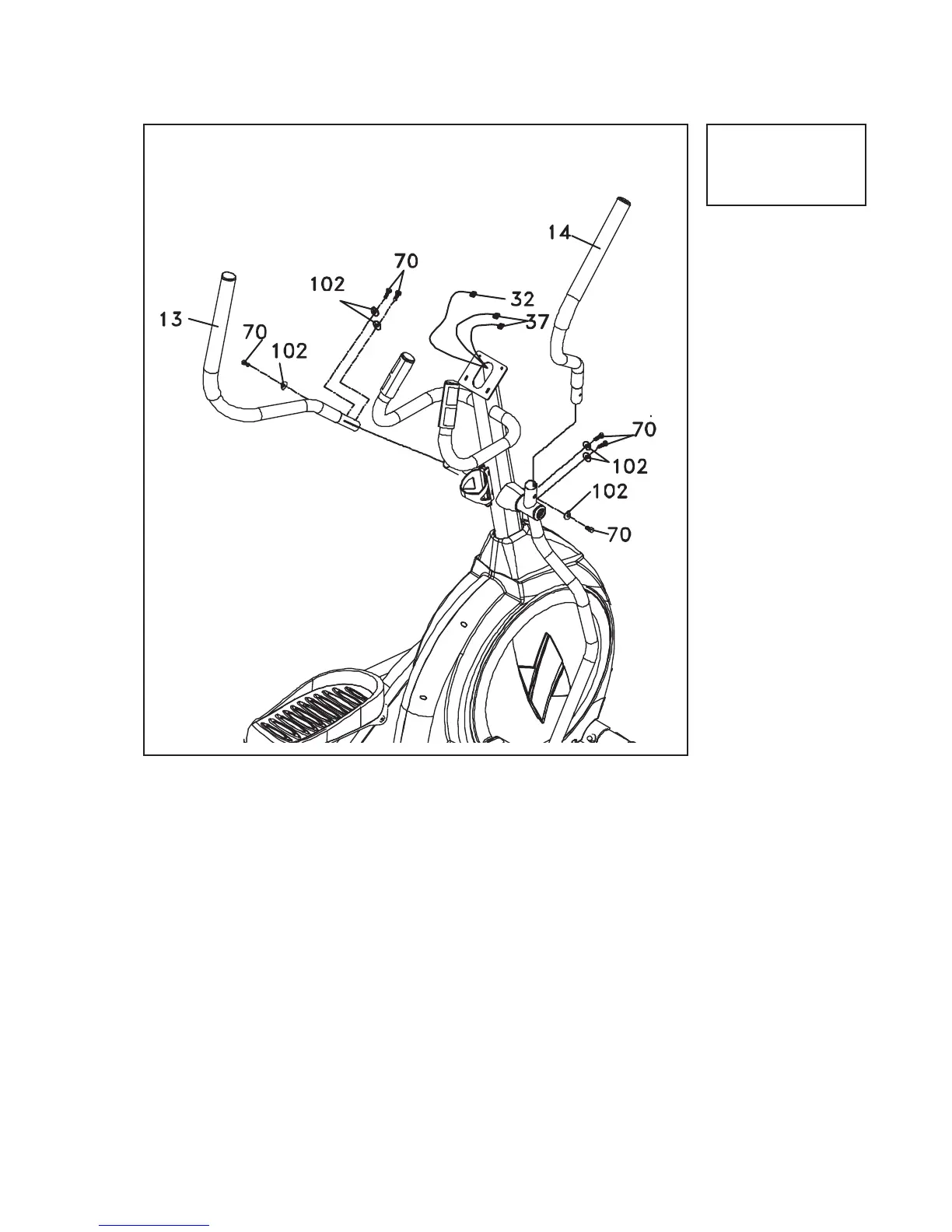

1. Install the Left and Right Swing Arms (13 & 14) into the Lower Left and
Right Lower Handle Bars (4 & 5) with six Hex Head Bolts(70) and six
Curved Washer(102) by using the 12.14m/m_Wrench (111).
Upper Swing Arms
