FS400 Elliptical
#78. M5 x P0.8 x 10L
Phillips Head Screw
(4 pcs)
#79. M5 x P0.8 x 15L
Phillips Head Screw
(6 pcs)
4

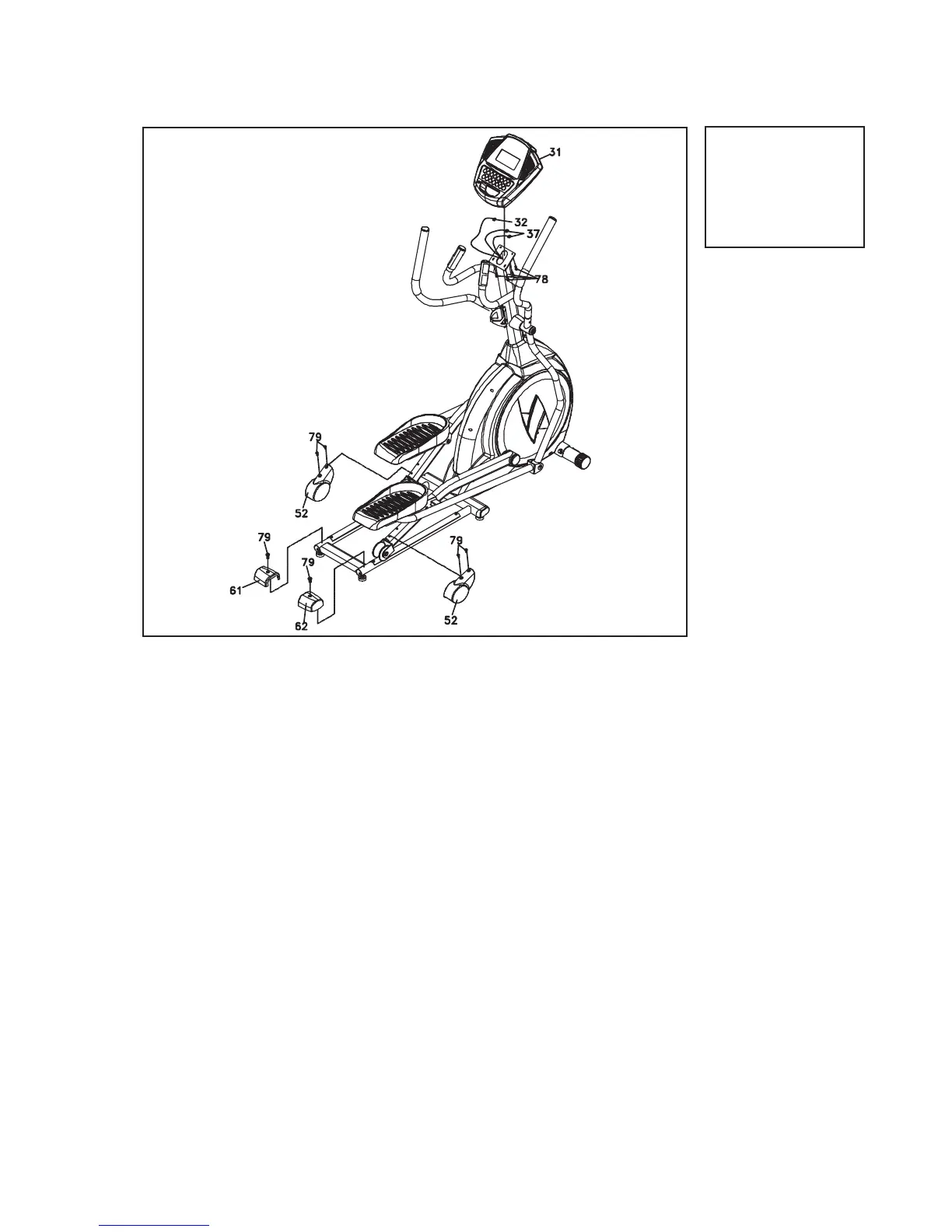

Hardware Step 4
1. Locate the Console Assembly (31) and the four Phillips Head Screws
(78) by using the Phillips Head Screw Driver (110).
2. There will be two electrical wire connectors at the top opening of the
Console Mast (10), two Handpulse W/Cable Assemblies (37), one Com-
puter Cable (32). Connect these to the mating connectors on the back
of the Console Assembly (31). The connectors are keyed so you cannot
plug them in the wrong way so do not force them.
3. Storing the excess wire back into the Console Mast (10), carefully install
the Console Assembly (31) onto the mounting plate of Console Mast (10)
and secure using the four Phillips Head Screws (78)
4. Install the 2pcs of Slide Wheel Covers (52) and the four Phillips Head
Screws (79) by using the Phillips Head Screw Driver (110).
5. Use one Phillips Head Screw (79) to secure Rear Stabilizer Cover (L)
(61) on the Rail Tube with Phillips Head Screw Driver (110). Repeat the
procedure for Rear Stabilizer Cover (R) (62) for the other side.
Plastic Covers
Note: Use the M5 Allen Wrench/Phillips Head Screw Driver (108) to tighten hardware in this step.
