2018/5/4V1.0+V1.0 13
STEP 2

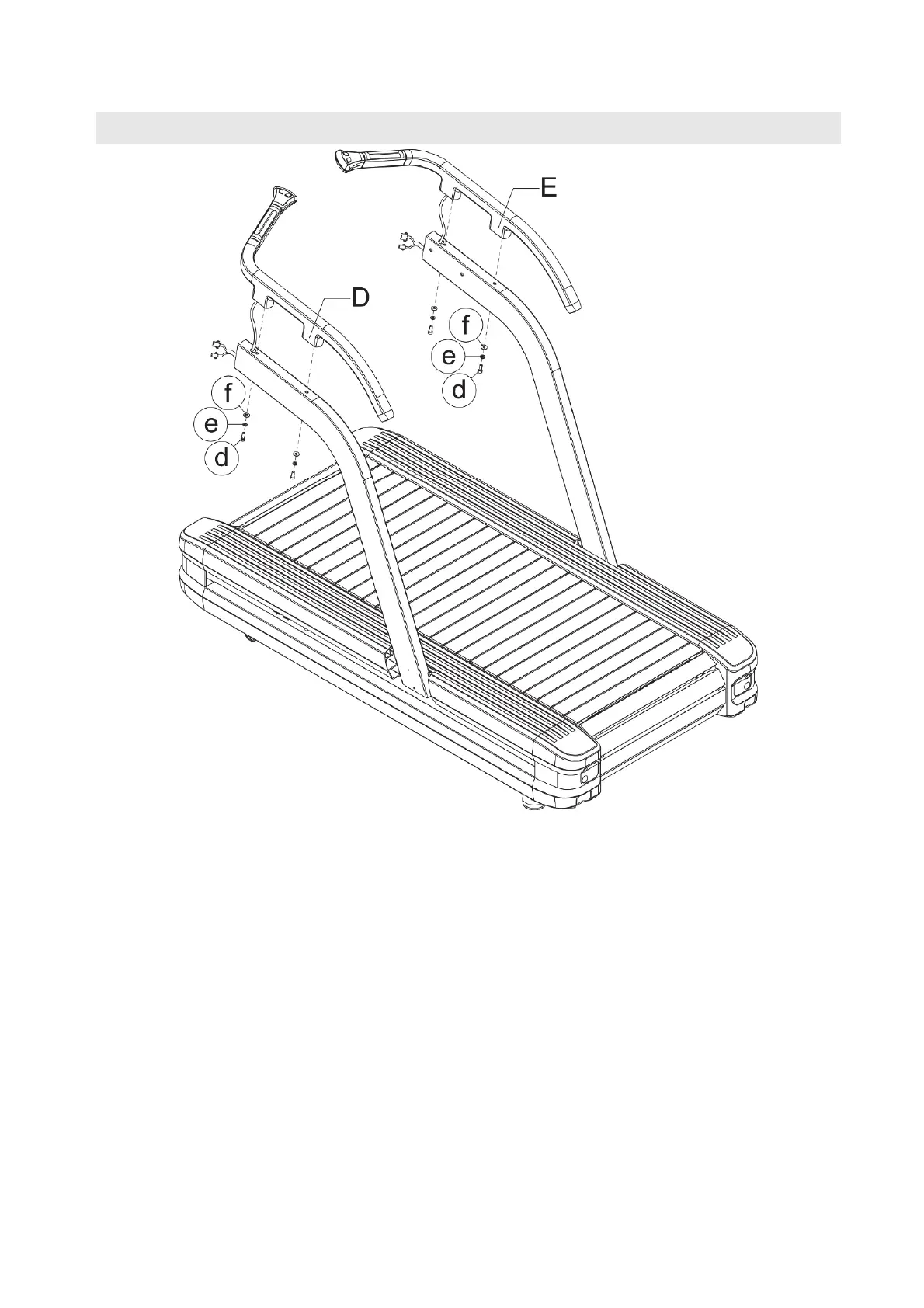

1 Pass the left and right handrail pipelines through the square hole of the left and right
treadmill’s hand-stand pipes and go through the pipe end.
2 Use screw (d), spring washer (e), washer (f) to lock the left and right handrail pipes (D,
E) tightly as shown in the figure and fix them on the left and right treadmill’s
hand-stand pipes.
※ Please be careful not to clip the wire when assembling
To Next Page
