2018/5/4V1.0+V1.0 14

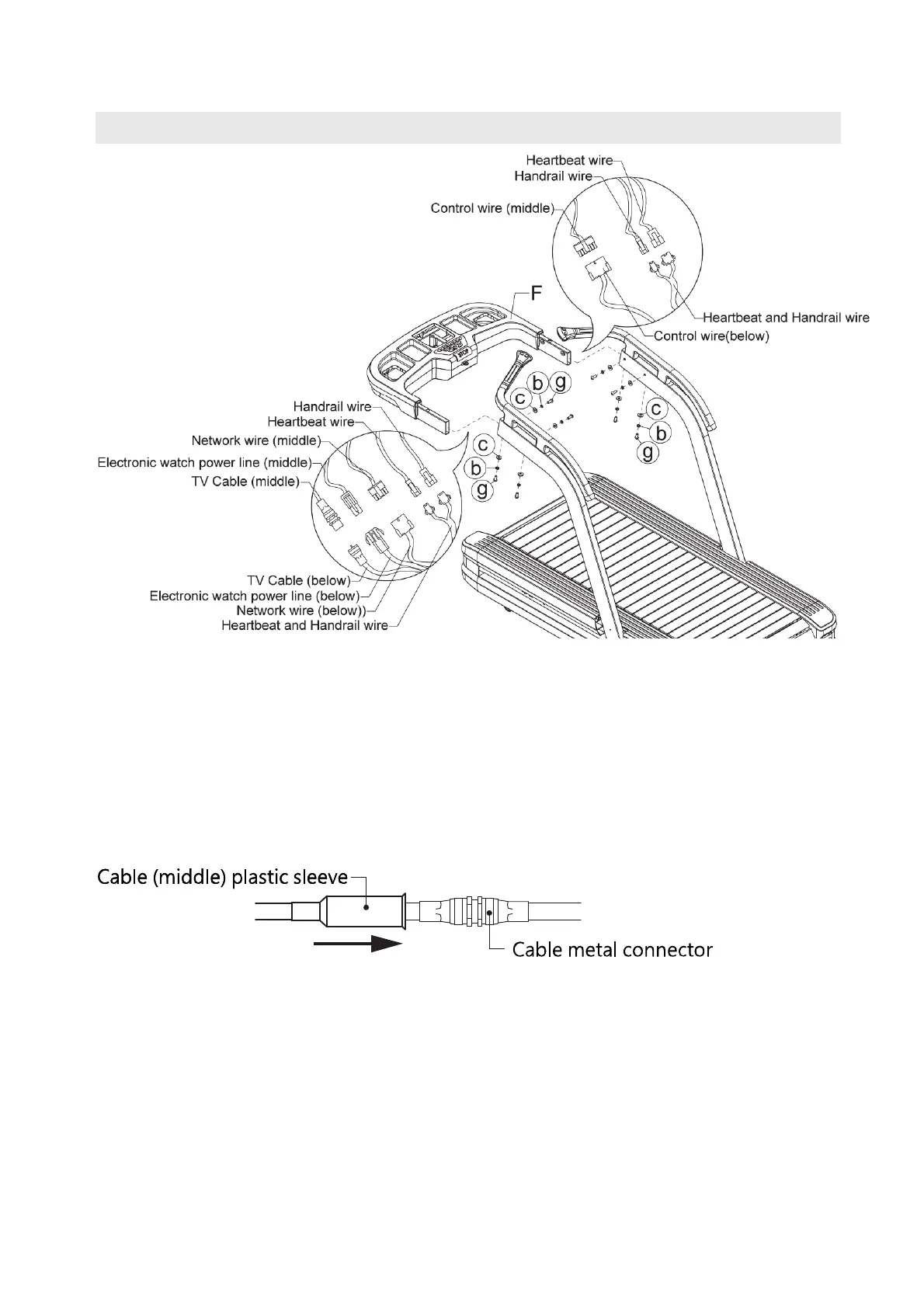

STEP 3
1 Put the water cup frame on the left and right treadmill’s hand-stand pipes. Connect the
wires of the left and right treadmill’s hand-stand pipes treadmill’s hand-stand pipes to
the wires of the water cup frame.
※ After connecting Cable, the Cable (middle) plastic sleeve shall be inserted into
the Cable metal connector.
2 Lock with screw (g) and washer (b, c) but not tightly. Confirm that the water cup frame
(F) is locked with all the screws of the left and right treadmill’s hand-stand pipes and
then use the tool to lock all the screws.
※ Please be careful not to clip the wire when assembling
