UB120 ASSEMBLY INSTRUCTIONS

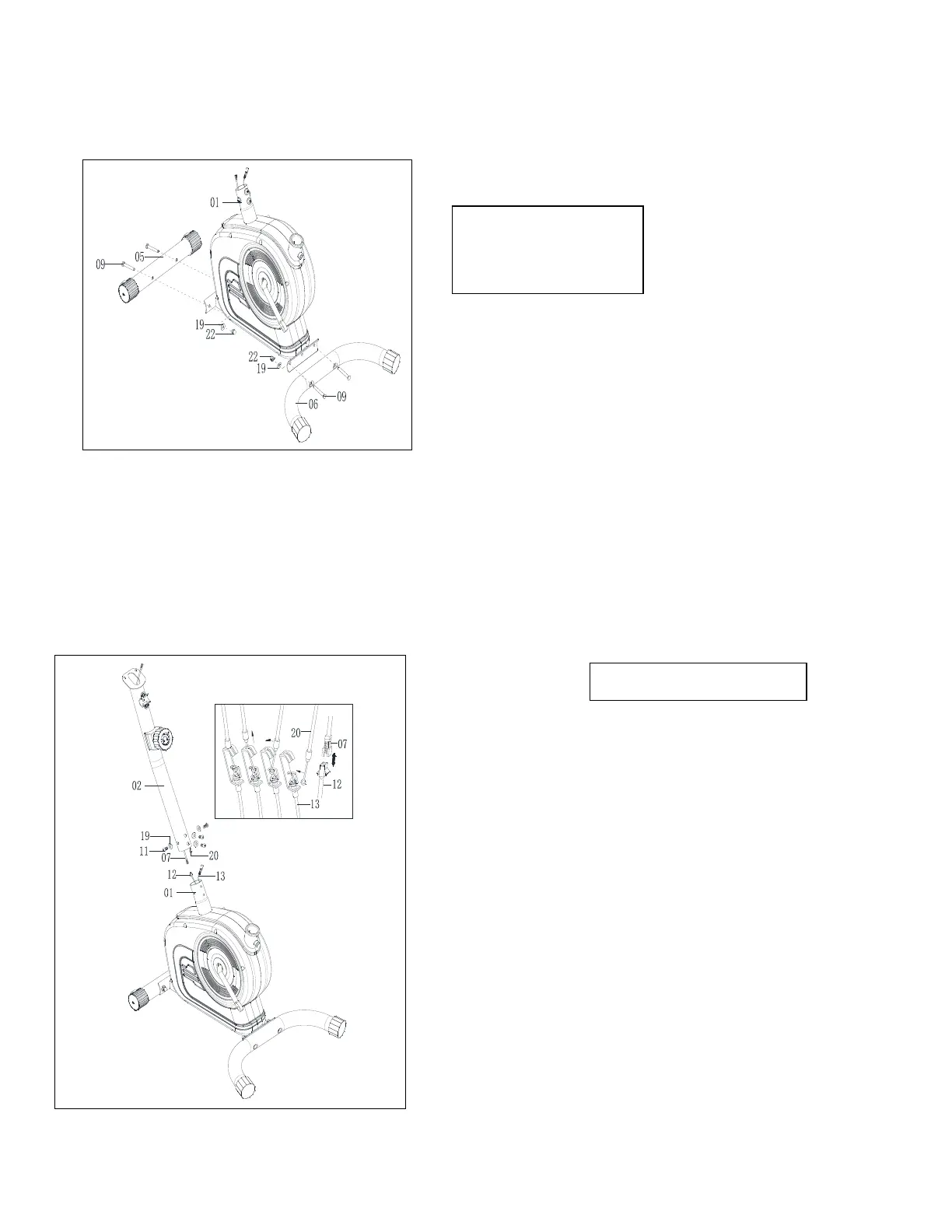

1 FRONT AND REAR STABILIZER
1. Attach front stabilizer (5) to main frame (1), tighten with 2sets of Carriage bolt (9), Curved
washer (19) and Domed nut (22).
2. Attach rear stabilizer (6) to main frame (1), tighten with 2sets of Carriage bolt (9), Curved
washer (19) and Domed nut (22).
2 FRONT POST
1. Turn tension knob (20) to level 8, and then
connect it with the lower tension cable (13).
Please see page 9 for a detailed description of
the assembly.
2. Connect extension sensor wire (7) with sensor
wire (12).
3. Insert front post (2) into main frame (1) and
tighten with 4 sets of allen screw (11) and curved
washer (19) which are pre-assembled on the
main frame (1).
4 Carriage Bolt (#9)
4 Curved washer (#19)
4 Domed nut (#22)
Hardware Step 1
Hardware Step 2
Allen key（#54）
