CHAPTER Ⅲ Examples of Diagnostic Link Connector Locations
1. Diagnostic Link Connectors Locations of Various Vehicle Models

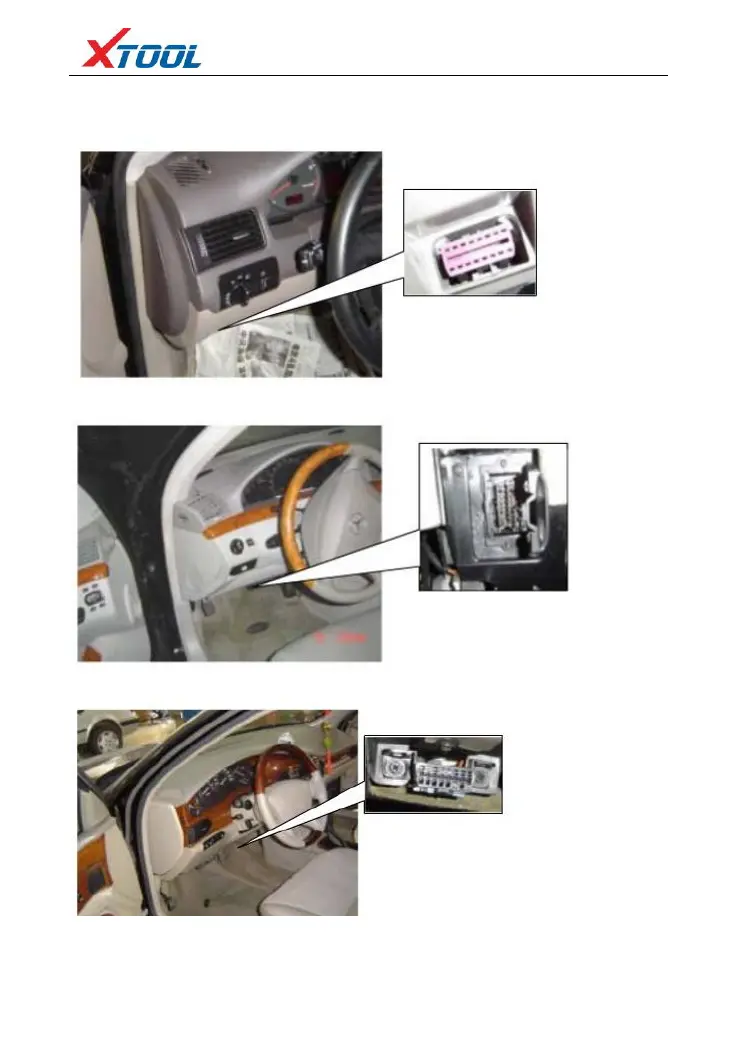

*AUDI A6: the OBDII plug is on the lower left side of the dashboard, use OBDII-16 connector.
*Benz S320,220 Chassis: the OBDII plug is below the dashboard, use OBDII-16 connector.
*GM Buick: the OBDII plug is below the dashboard, use OBDII-16 connector.
2. Location Diagram of Vehicle OBDII Connectors
